DK Infusetek

ZU-I Module for SPC/SPM Independent Syringe Pump

This syringe pump module is to be used with DK Infusetek SPC or SPM syringe pump controllers. With such systems, obtain up to 8 independent flow rates from 0.01 µL/min to 127 mL/min.

1,125.00€

Product SKU:: SE-ZU-I

Quantity:

Available immediately

Current Stock:

Adding to cart… The item has been added

Ask an expert Talk to our engineers & PhDs

Sold Out

Worldwide Express Shipping

Delivery in 1-3 days for products in stock

Simplified Purchasing

Easily request a quote and track your orders.

Outstanding Support

Support by a team of Engineers and PhDs (Inhouse)

General
Content
Specifications
Documentation

General

Whereas standard ChipShop connectors only accept soft-walled tubing, this set of connectors allows connecting any 1/16" OD rigid tubing to a ChipShop chip.

Suitable for rigid tubing (PTFE, PEEK, etc.) with an OD of 1/16" (1.6 mm). Manufactured in blue TPE, max. pressure of 3.2 bar with a 1/16" OD PEEK tubing.

Plugs to block unused ports are also available in our shop.

DK Infusetek

SPM/ZU-I Independent Syringe Pump (1-8 channels)

High-precision split type syringe pump with one controller and separate syringe pumps (up to 8 units) for various lab applications from 0.01 µL/min to 127 mL/min. Embedding a 4.3" color LCD touch...

1,758.50€ - 8,758.50€

DK Infusetek

SPC/ZU-I Independent Syringe Pump (1-8 channels)

High-precision split type syringe pump with one controller and separate syringe pumps (up to 8 units) for various lab applications from 0.01 µL/min to 127 mL/min. Embedding a 7" color LCD touch...

2,762.80€ - 9,762.80€

Longer

dLSP501X Independent Syringe Pump

The dLSP501X split-type syringe pump offers high-precision, modular fluid control for a wide range of fluid handling applications. Designed for research and industry, this pump combines accurate,...

2,408.00€ - 8,026.80€

Advanced Microfluidics

Glass Syringes for SPM High Volume Industrial Syringe Pump

Advanced Microfluidics high volume glass syringes are designed for optimal use with the SPM - Industrial OEM High Volume Syringe Pump. Available for 2.5 and 5 mL. General Advanced Microfluidics...

277.20€

Advanced Microfluidics

Glass Syringes for LSPone and SPM Low Volume Syringe Pumps

Advanced Microfluidics glass syringes are designed for optimal use with the LSPone Laboratory Syringe Pump and the

238.50€ - 265.70€

Compatible controllers	SPC and SPM
Working modes	Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion
Number of channels	1
Syringe size	10 µL to 60 mL
Maximum stroke	90 mm
Stroke resolution	0.078 µm per microstep
Linear speed range	1 µm/min up to 132 mm/min
Flow rate range	0.01 µL/min to 127 mL/min
Speed	Min: 0.035 ms/microstep Max: 0.936 s/microstep
Accuracy	≤ +/- 0.5%
Max. linear force	157 N (> 16 Kgf)
Module power supply	Syringe pump DC24V / 24W
Condition temperature	0 - 40 °C
Relative humidity	< 80 %
IP rate	IP31

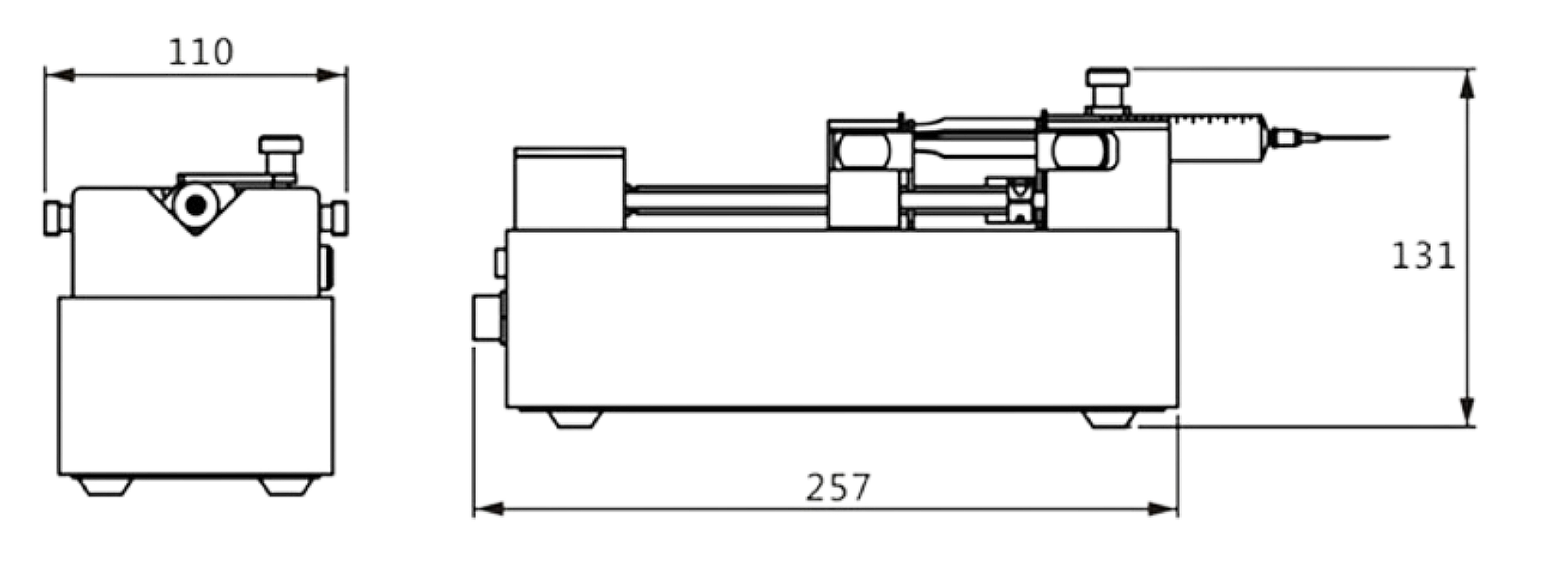

Module dimensions	257 x 110 x 131 (mm)
Module weight	2.6 Kg
Warranty	3 years

ZU-I Module for SPC/SPM Independent Syringe Pump

This syringe pump module is to be used with DK Infusetek SPC or SPM syringe pump controllers. With such systems, obtain up to 8 independent flow rates from 0.01 µL/min to 127 mL/min.
