High-precision split type syringe pump with one controller and separate syringe pumps (up to 8 units) for various lab applications from 0.01 µL/min to 127 mL/min. Embedding a 7" color LCD touch screen, the controller allows to independently program each syringe pump so you can vary the flow rate from one unit to another. Each syringe pump can work in a predetermined logical relationship.
General
Baoding Shenchen Precision Pump Co. Ltd. is one of the leaders in peristaltic pumps and syringe pumps. With an experience of 13 years in this industry, they provide reliable and accurate pumps at the best price.
The SPC/ZU-I Independent Syringe Pump represents a state-of-the-art solution thanks to both its independent and logic working modes!
Each unit of the SPC/ZU-I pump runs as an independent syringe pump: work at different flow rates and pumping modes or with different liquids at the same time. Additionally, thanks to the logical operation mode, the different units can infuse and withdraw in a predetermined relationship with different orders. The user can choose each unit to be independent or integrated in a logic working mode.
Highlights
- Controller with 7" industrial grade LCD touch screen, intelligent calibration and online micro adjust function
- Four running modes: infusion, withdrawal, infusion/withdrawal, withdrawal/infusion
- Two working modes: independent working mode, logic working mode
- Under the independent operation mode every unit can run as an independent syringe pump, with its own flow rate and running mode
- Under the logical mode, units are allocated according to a predetermined logical relationship to infuse and withdraw in a certain order and during a certain time
- Intelligent calibration: the online micro adjusting function decreases volume error and increases volume accuracy
- Real time monitoring: the controller displays the working status of each unit
- Back distance setting to avoid bubbles inside syringe
- 3 years warranty
Specifications
| Working modes |
Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion |
| Number of channels |
1 to 8 |
| Syringe protection |
Protect the syringe from damage by adjusting the limit block position |
| Overpressure protection |
Alarm function when the drive is blocked in one of the units |
| Syringe size |
From 10 µL to 60 mL |
| Maximum stroke |
90 mm |
| Stroke resolution |
0.078 µm per microstep |
| Linear speed range |
1 µm/min up to 132 mm/min |
| Flow rate range |
0.01 µL/min to 127 mL/min |
| Flow rate accuracy |
Intelligent calibration and online adjusting function |
| Speed |
Min: 0.035 ms/microstep Max: 0.936 s/microstep |
| Accuracy |
≤ +/- 0.5% |
| Max. linear force |
157 N (> 16 Kgf) |
| Back distance |
0.01 - 5 mm |
| Stored modes |
5 group data of each running mode |
| Control and display |
Industrial grade 7" LCD color touch screen |
| Power-off memory |
Display the previous parameters when turning on again |
| Signal input |
Control infusion, withdrawal, start, stop |
| External control signal |
Start/Stop signal, active switch signal: 5V, 12V and 24V |
| Communication interface |
RS485/RS232, Modbus protocol (RTU mode) |
| Power supply |
Controller AC100V-240V / 15W
Syringe pump DC24V / 24W |
| Condition temperature |
0 - 40 °C |
| Relative humidity |
< 80 % |
| IP rate |
IP31 |

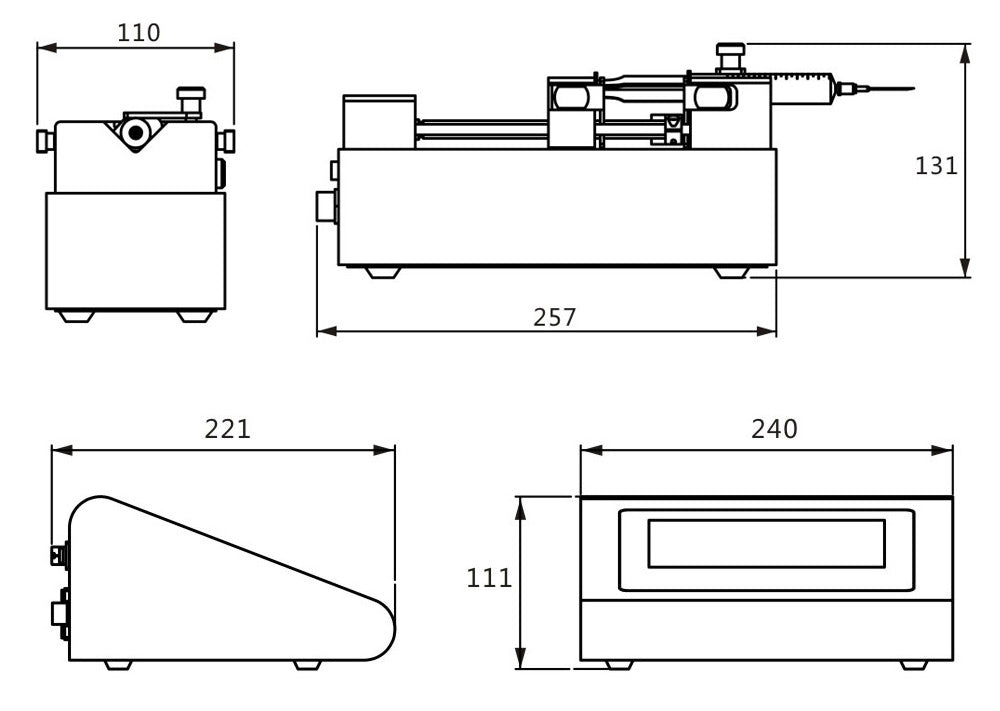

| Controller dimensions |
240 x 221 x 111 (mm) |
| Controller weight |
2.1 Kg |
| Pump unit dimensions |
257 x 110 x 131 (mm) |
| Pump unit weight |
2.6 Kg |
Content
1x SPC/ZU-I controller unit
1-8x SPC/ZU-I independent syringe pump unit(s)
Documentation
? SPC/ZU-I syringe pump brochure
? SPC/ZU-I syringe pump manual
? SPC series MODBUS communication protocol
