High-precision split type syringe pump with one controller and separate syringe pumps (up to 8 units) for various lab applications from 0.01 µL/min to 127 mL/min. Embedding a 4.3" color LCD touch screen, the controller allows to independently program each syringe pump so you can vary the flow rate from one unit to another.
General
Baoding Shenchen Precision Pump Co. Ltd. is one of the leaders in peristaltic pumps and syringe pumps. With an experience of 13 years in this industry, they provide reliable and accurate pumps at the best price.
Each unit of the SPM/ZU-I pump runs as an independent syringe pump: apply a different flow rate or pumping mode, or use different liquids in each unit at the same time.
Highlights
- Controller with 4.3" industrial grade LCD touch screen, intelligent calibration and online micro adjust function
- Four running modes: infusion, withdrawal, infusion/withdrawal, withdrawal/infusion
- Independent working mode: each unit can run as an independent syringe pump, with its own flow rate and running mode
- Intelligent calibration: the online micro adjusting function decreases volume error and increases volume accuracy
- Real time monitoring: the controller displays the working status of each unit
- Back distance setting to avoid bubbles inside syringe
- Compact design
- 3 years warranty
Specifications
| Working modes |
Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion |
| Number of channels |
1 to 8 |
| Syringe protection |
Protect the syringe from damage by adjusting the limit block position |
| Overpressure protection |
Alarm function when the drive is blocked in one of the units |
| Syringe size |
From 10 µL to 60 mL |
| Maximum stroke |
90 mm |
| Stroke resolution |
0.078 µm per microstep |
| Linear speed range |
1 µm/min up to 132 mm/min |
| Flow rate range |
0.01 µL/min to 127 mL/min |
| Flow rate accuracy |
Intelligent calibration and online adjusting function |
| Speed |
Min: 0.035 ms/microstep Max: 0.936 s/microstep |
| Accuracy |
≤ +/- 0.5% |
| Max. linear force |
157 N (> 16 Kgf) |
| Back distance |
0.01 - 5 mm |
| Stored modes |
10 group working modes |
| Control and display |
Industrial grade 4.3" LCD color touch screen |
| Power-off memory |
Display the previous parameters when turning on again |
| Signal input |
Control infusion, withdrawal, start, stop |
| External control signal |
Start/Stop signal, active switch signal: 5V, 12V and 24V |
| Communication interface |
RS485/RS232, Modbus protocol (RTU mode) |
| Power supply |
Controller DC5V / 10W
Syringe pump DC24V / 24W |
| Condition temperature |
0 - 40 °C |
| Relative humidity |
< 80 % |
| IP rate |
IP31 |

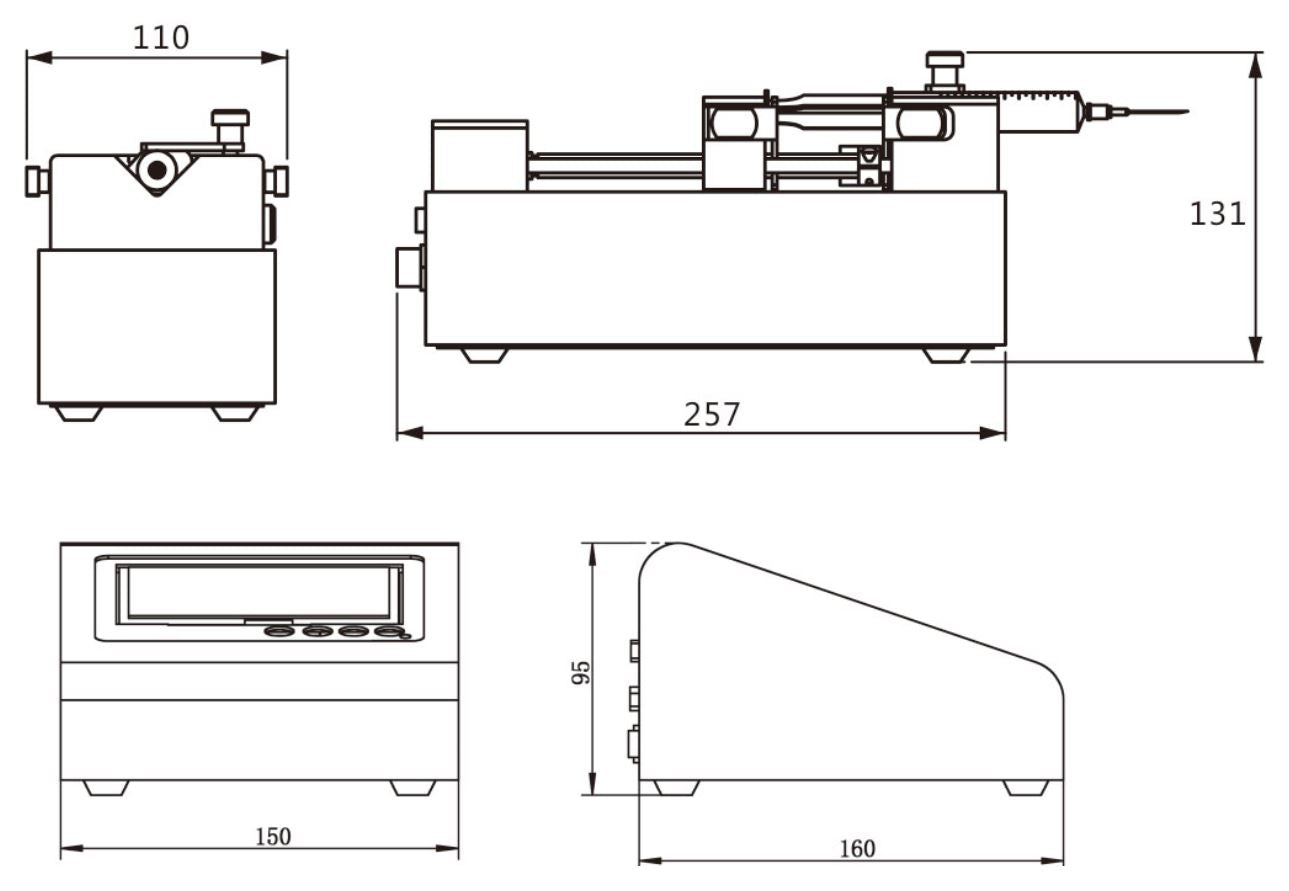

| Controller dimensions |
160 x 150 x 95 (mm) |
| Controller weight |
1 Kg |
| Pump unit dimensions |
257 x 110 x 131 (mm) |
| Pump unit weight |
2.6 Kg |
Content
1x SPM/ZU-I controller unit
1-8x SPM/ZU-I independent syringe pump unit(s)
Documentation
? SPM/ZU-I syringe pump brochure
? SPM/ZU-I syringe pump manual
? SPM series MODBUS communication protocol
