This intelligent high flow rate peristaltic pump features a 4.3" LCD touch screen with several features such as calibration and dispensing mode. Made of laboratory-grade ABS, it is user-friendly and capable of achieving flow rates as low as a few µL/min anup to 1808 mL/min.
Available with different EasyPump pump heads from 1 to 8 channels.
MSRP:
Now:
£1,272.70 - £1,861.80
Was:
(You save)
Product SKU:
Worldwide Express Shipping
Delivery in 1-3 days for products in stock
Simplified Purchasing
Easily request a quote and track your orders.
Outstanding Support
Support by a team of Engineers and PhDs (Inhouse)
Complete Your Setup
Accessories and consumables that work with this product
Whereas standard ChipShop connectors only accept soft-walled tubing, this set of connectors allows connecting
any 1/16" OD rigid tubing to a ChipShop chip.
Suitable for rigid tubing (PTFE, PEEK, etc.) with an OD of 1/16" (1.6 mm). Manufactured in blue TPE, max.
pressure of 3.2 bar with a 1/16" OD PEEK tubing.
Plugs to block unused ports are also available in our shop.
See All Availability
Use the filter to narrow your search
This intelligent high flow rate peristaltic pump features a 4.3" LCD touch screen with several features such as calibration and dispensing mode. Made of laboratory-grade ABS, it is user-friendly and capable of achieving flow rates as low as a few µL/min anup to 1808 mL/min.
Available with different EasyPump pump heads from 1 to 8 channels.
General
The LabV3-III peristaltic pump is an accurate microfluidic flow control system designed for cost-effective, high-flow and user-friendly applications. It has calibration feature and displays dynamically the flow rate and system configuration on a 4.3" color LCD screen. The pump can be operated via its touchscreen and mechanical keypad or external commands. It offers intelligent features such as start, stop, speed control, direction change, fast forward, calibration, volume and time fixed dispensing.
Features & Benefits

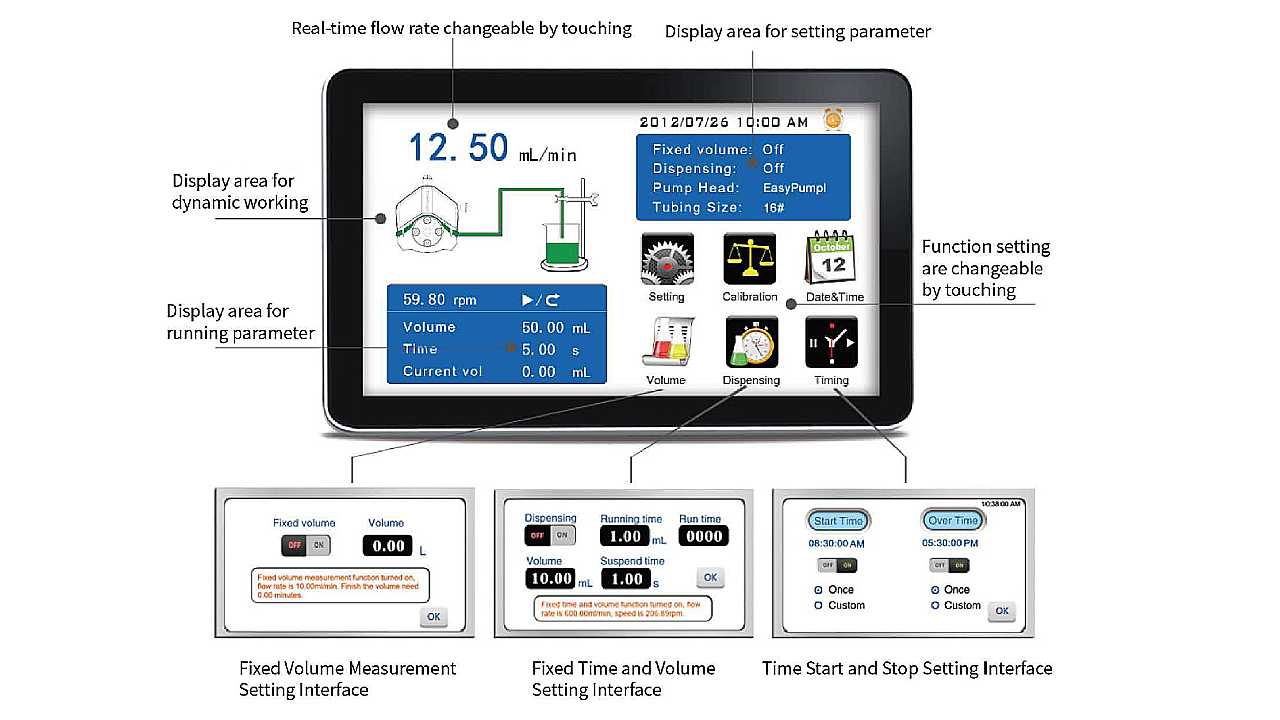

Industrial grade 4.3" true color LCD screen, touch screen control.
Flow rate calibration, back suction feature,
ABS engineering plastic shell and UV spray coating: anti-corrosion and anti-static,
Motor speed range of 0.1 to 350 rpm,
Up to 8 channels through stacked EasyPump series pump heads with 4 rollers,
Flow rate ranges from 5.3 µL/min to 1808 mL/min,
Suitable for 1.6 and 2.4 mm wall thickness tubing,
RS485 & RS232 interface, Modbus protocol,
CE & SGS certifications.
Pump head options
Pump head
Occlusion
Number of channels
Tubing wall thickness
EasyPump I
Fixed
Single (1)
1.6 mm
EasyPump II
Fixed
Single (1)
2.4 mm
EasyPump V
Fixed
Dual (2)
1.6 mm
EasyPump III
Adjustable
Single (1)
1.6 mm
EasyPump IV
Adjustable
Single (1)
2.4 mm
EasyPump VI
Adjustable
Dual (2)
1.6 mm
Tubing & Flow range
Pump Head
Tubing
Tubing ID x WT (mm)
Flow rate (mL/min) (0.1 - 350 rpm)
EasyPump I
EasyPump III
(Single Channel)
13#
0.8 x 1.6
0.0053 - 19
14#
1.6 x 1.6
0.027 - 95
19#
2.4 x 1.6
0.055 - 193
16#
3.1 x 1.6
0.093 - 327
25#
4.8 x 1.6
0.197 - 688
17#
6.4 x 1.6
0.333 - 1167
18#
7.9 x 1.6
0.43 - 1505
EasyPump II
EasyPump IV
(Single Channel)
15#
4.8 x 2.4
0.18 - 630
24#
6.4 x 2.4
0.273 - 957
35#
7.9 x 2.4
0.383 - 1342
36#
9.6 x 2.4
0.517 - 1808
EasyPump V
EasyPump VI
(Dual Channel)
13#
0.8 x 1.6
0.0053 - 19
14#
1.6 x 1.6
0.027 - 95
19#
2.4 x 1.6
0.055 - 193
16#
3.1 x 1.6
0.093 - 327
25#
4.8 x 1.6
0.197 - 688
Content
1x LabV3-III intelligent flow rate peristaltic pump with EasyPump(s) pump head
1x Power supply
With the EasyPump pump I, III, V, and VI, for each channel:
1x 2m of 25# (4.8 x 1.6 mm ID x WT) peristaltic tubing
With the EasyPump pump II and IV, for each channel:
1x 2m of 15# (4.8 x 2.4 mm ID x WT) peristaltic tubing
Specifications
Performance specifications
Flow rate range
5.3 µL/min - 1808 mL/min
Flow rate resolution
0.01 mL
Speed range
0.1 - 350 rpm
Speed resolution
0.01 rpm
Compatible tubing
1.6 and 2.4 mm wall thickness tubing
Max outlet pressure
0.1 - 0.27 MPa
Back suction angle
0-360°
Electrical specifications
Motor type
Closed-loop stepper motor
Display
3.2" high definition LCD screen
Control method
Digital knob and mechanical keypad
Keypad lifetime
300,000 times
Power supply
220V +/- 10% 50Hz/60Hz 110V +/- 10% 50Hz/60hz
External control signal
0-5 V, 0-10 V, 4-20 mA in option
Start/stop, change direction signal
Passive switch signals such as foot pedal switch Active switch signal: 5V, 12V, 24V (optional)
Communication interface
RS232, RS485 supports ModBus protocol (RTU mode)
Physical specifications
Drive dimensions (LxWxH)
259×157×237 mm
Drive weight
4.4 kg
Power consumption
< 80 W
Working temperature
0-40 °C
Relative humidity
< 80%
IP rate
IP31
Drive material
ABS engineering plastic shell and UV spray coating
