Accessories and consumables that work with this product
Whereas standard ChipShop connectors only accept soft-walled tubing, this set of connectors allows connecting any 1/16" OD rigid tubing to a ChipShop chip.
Suitable for rigid tubing (PTFE, PEEK, etc.) with an OD of 1/16" (1.6 mm). Manufactured in blue TPE, max. pressure of 3.2 bar with a 1/16" OD PEEK tubing.
Plugs to block unused ports are also available in our shop.
Use the filter to narrow your search
The LabV1-III is the latest evolution of the LabV series, featuring a new servo motor for better performance. This allows for mounting up to 4 pump heads and flow rates ranging from ~ 5 µL/min to 775 mL/min. They are offered with the new generation Easypump, a more easy-to-use and stable pump head with 4 rollers.
| Pump Head | Occlusion | Number of channels | Tubing Wall Thickness |
| EasyPump I | Fixed | Single (1) | 1.6 mm |
| EasyPump II | Fixed | Single (1) | 2.4mm |
| EasyPump V | Fixed | Dual (2) | 1.6mm |
| EasyPump III | Adjustable | Single (1) | 1.6mm |
| EasyPump IV | Adjustable | Single (1) | 2.4mm |
| EasyPump VI | Adjustable | Dual (2) | 1.6mm |
1x LabV1-III peristaltic pump with EasyPump pump head(s)
With the EasyPump pump I, III, V, and VI, for each channel:
1x 2m of 25# (4.8 x 1.6 mm ID x WT) peristaltic tubing
With the EasyPump pump II and IV, for each channel:
1x 2m of 15# (4.8 x 2.4 mm ID x WT) peristaltic tubing
| Pump Head | Tubing | Tubing ID x WT (mm) | Flow rate (mL/min) (0.1 - 150 rpm) |
|
EasyPump I EasyPump III (Single Channel) |
13# | 0.8 x 1.6 | 0.0053 - 8 |
| 14# | 1.6 x 1.6 | 0.027 - 41 | |
| 19# | 2.4 x 1.6 | 0.055 - 83 | |
| 16# | 3.1 x 1.6 |
0.0933 - 140 |
|
| 25# | 4.8 x 1.6 | 0.1967 - 295 | |
| 17# | 6.4 x 1.6 | 0.3333 - 500 | |
| 18# | 7.9 x 1.6 | 0.43 - 645 | |
|
EasyPump II EasyPump IV (Single Channel) |
15# | 4.8 x 2.4 | 0.18 - 270 |
| 24# | 6.4 x 2.4 | 0.2733 - 410 | |
| 35# | 7.9 x 2.4 | 0.3833 - 575 | |
| 36# | 9.6 x 2.4 | 0.5167 - 775 | |
|
EasyPump V EasyPump VI (Dual Channel) |
13# | 0.8 x 1.6 | 0.0053 - 8 |
| 14# | 1.6 x 1.6 | 0.027 - 41 | |
| 19# | 2.4 x 1.6 | 0.055 - 83 | |
| 16# | 3.1 x 1.6 | 0.0933 - 140 | |
| 25# | 4.8 x 1.6 | 0.1967 - 295 |
| Flow rate range | 0.0053 µL/min -775 mL/min |
| Speed range | 0.1 - 150 rpm |
| Speed resolution | 0.01 rpm |
| Flow rate resolution | 0.01 mL |
| Flow rate accuracy | <± 0.5% |
| Back suction angle | 0-360° |
| Max outlet pressure |
0.1 - 0.27 MPa |
| Motor type | Closed-loop stepper motor |

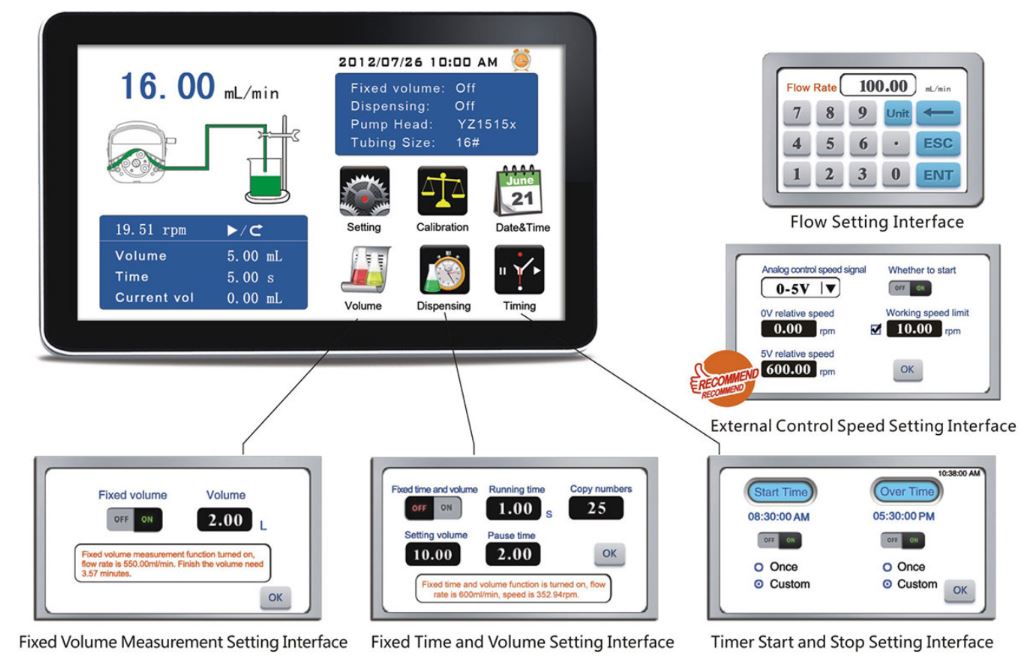

| Display | 4.3" industrial grade - True color LCD screen |
| Control method | Touch screen and mechanical keypad |
| Keypad lifetime | 300,000 times |
| External control signal | 0-5 V, 0-10 V, 4-20 mA in option |
| Start/stop, change direction signal |
Passive switch signals such as foot pedal switch Active switch signal: 5-24 V in option |
| Communication interface | RS232, RS485 support ModBus protocol (RTU mode) |
| Output interface | Output motor working status (open-collector output) |
| Power supply | 220V +/- 10% 50Hz/60Hz (standard) 110V +/- 10% 50Hz/60hz (optional) |
| Drive dimensions | 259 x 157 x 237 (LxWxH) |
| Drive weight | 4.4 kg |
| Power consumption | < 50W |
| Working temperature | 0-40 °C |
| Relative humidity | < 80% |
| IP rate | IP31 |
| Warranty | 3 years |


Appliable to all Innofluid Lab peristaltic pump series: How to Control a LabV Pump Using the MODBUS Protocol ?.
