Simple and budget-friendly peristaltic pump with flow rate and motor speed controls. It comes with a 3.2" color LCD screen and new Easypump pump heads. Built from laboratory-grade ABS, this pump is easy to use and can handle flow rates as low as a few µL/min.
Available with different pump heads from 1 to 8 channels.
General

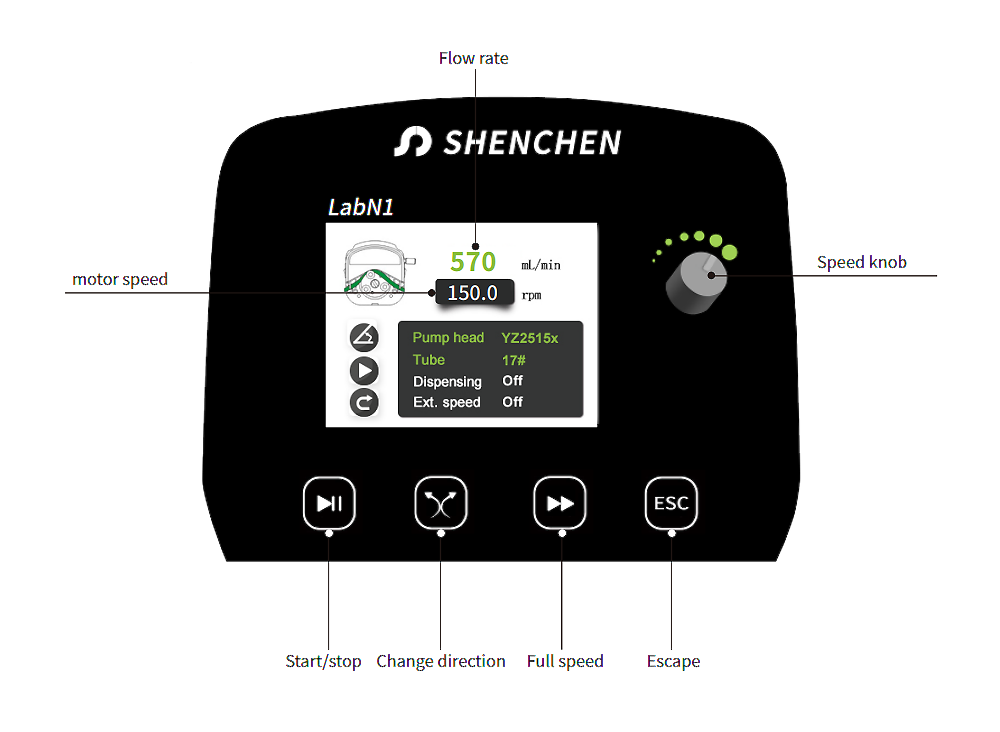

The LabN1-III peristaltic pump is a precise microfluidic flow control system designed for cost-effective applications. As the latest upgrade in the LabN series and successor to the LabM model, it features a new servo motor for enhanced performance. It features calibration capabilities and shows motor speed and flow rate on a 3.2" color LCD screen. The pump can be controlled using its mechanical keypad and digital knob or via external methods. It provides various basic functions, including start, stop, speed control, direction change, and fast forward for filling or emptying. The time range extends from 0.1 seconds to 9999 hours for simple time-based dispensing.
Features & Benefits
- Motor speed and flow rate display,
- Flow rate calibration, back suction feature,
- 3.2" color LCD screen,
- Mechanical keypad and knob control,
- ABS engineering plastic shell and UV spray coating: anti-corrosion and anti-static,
- Motor speed range of 0.1 to 150 rpm,
- Up to 8 channels through stacked EasyPump series pump heads with 4 rollers,
- Flow rate ranges from 5.3 µL/min to 775 mL/min,
- Suitable for 1.6 and 2.4 mm wall thickness tubing,
- RS485 & RS232 interface, Modbus protocol,
- CE & SGS certifications.
Pump head options
| Pump head |
Occlusion |
Number of channels |
Tubing wall thickness |
| EasyPump I |
Fixed |
Single (1) |
1.6 mm |
| EasyPump II |
Fixed |
Single (1) |
2.4 mm |
| EasyPump V |
Fixed |
Dual (2) |
1.6 mm |
| EasyPump III |
Adjustable |
Single (1) |
1.6 mm |
| EasyPump IV |
Adjustable |
Single (1) |
2.4 mm |
| EasyPump VI |
Adjustable |
Dual (2) |
1.6 mm |
Tubing & Flow range
| Pump Head |
Tubing |
Tubing ID x WT (mm) |
Flow rate (mL/min)
(0.1 - 150 rpm) |
|
EasyPump I
EasyPump III
(Single Channel)
|
13# |
0.8 x 1.6 |
0.0053 - 8 |
| 14# |
1.6 x 1.6 |
0.027 - 41 |
| 19# |
2.4 x 1.6 |
0.055 - 83 |
| 16# |
3.1 x 1.6 |
0.0933 - 140 |
| 25# |
4.8 x 1.6 |
0.1967 - 295 |
| 17# |
6.4 x 1.6 |
0.3333 - 500 |
| 18# |
7.9 x 1.6 |
0.43 - 645 |
|
EasyPump II
EasyPump IV
(Single Channel)
|
15# |
4.8 x 2.4 |
0.18 - 270 |
| 24# |
6.4 x 2.4 |
0.2733 - 410 |
| 35# |
7.9 x 2.4 |
0.3833 - 575 |
| 36# |
9.6 x 2.4 |
0.5167 - 775 |
|
EasyPump V
EasyPump VI
(Dual Channel)
|
13# |
0.8 x 1.6 |
0.0053 - 8 |
| 14# |
1.6 x 1.6 |
0.027 - 41 |
| 19# |
2.4 x 1.6 |
0.055 - 83 |
| 16# |
3.1 x 1.6 |
0.0933 - 140 |
| 25# |
4.8 x 1.6 |
0.1967 - 295 |
Content
1x LabN1-III flow rate peristaltic pump with EasyPump(s) pump head
1x Power supply
With the EasyPump pump I, III, V, and VI, for each channel:
- 1x 2m of 25# (4.8 x 1.6 mm ID x WT) peristaltic tubing
With the EasyPump pump II and IV, for each channel:
- 1x 2m of 15# (4.8 x 2.4 mm ID x WT) peristaltic tubing
Specifications
| Performance specifications |
| Flow rate range |
5.3 µL/min - 775 mL/min |
Flow rate resolution
|
0.01 μL |
| Speed range |
0.1 - 150 rpm |
| Speed resolution |
0.01 |
| Compatible tubing |
1.6 and 2.4 mm wall thickness tubing |
| Max outlet pressure |
0.1 - 0.27 MPa |
| Testing time range |
0.1 s - 9999 h |
| Back suction angle |
0-360° |
| External control signal |
0-5 V, 0-10 V, 4-20 mA in option |
| Start/stop, change direction signal |
Passive switch signals such as foot pedal switch
Active switch signal: 5V, 12V, 24V (optional) |
| Communication interface |
RS232, RS485 supports ModBus protocol (RTU mode) |
| Electrical specifications |
| Motor type |
Closed-loop stepper motor |
| Display |
3.2" high definition LCD screen |
| Control method |
Digital knob and mechanical keypad |
| Keypad lifetime |
300,000 times |
| Power supply |
220V +/- 10% 50Hz/60Hz
110V +/- 10% 50Hz/60hz |
| Physical specifications |
| Drive dimensions (LxWxH) |
259×157×237 mm |
| Drive weight |
4.4 kg |
| Power consumption |
< 80 W |
| Working temperature |
0-40 °C |
| Relative humidity |
< 80% |
| IP rate |
IP31 |
| Drive material |
ABS engineering plastic shell and UV spray coating |
| Pump head housing material |
Engineering plastic / PPS |
| Pump head rollers material |
304 stainless steel |
| Certifications |
CE, SGS |
| Warranty |
3 years |
Documentation
? LabN1-III standard peristaltic pump brochure
? LabN series pump manual
? LabN series MODBUS Protocol
Appliable to all Innofluid Lab peristaltic pump series: How to Control a LabV Pump Using the MODBUS Protocol ?.
