Simple and affordable high flow rate peristaltic pump featuring a 3-digit LED display for motor speed and equipped with the latest Easypump pump heads. Constructed from laboratory-grade ABS, this user-friendly pump can achieve flow rates ranging from just a few µL/min to 1808 mL/min.
Available with different pump heads from 1 to 8 channels.
General

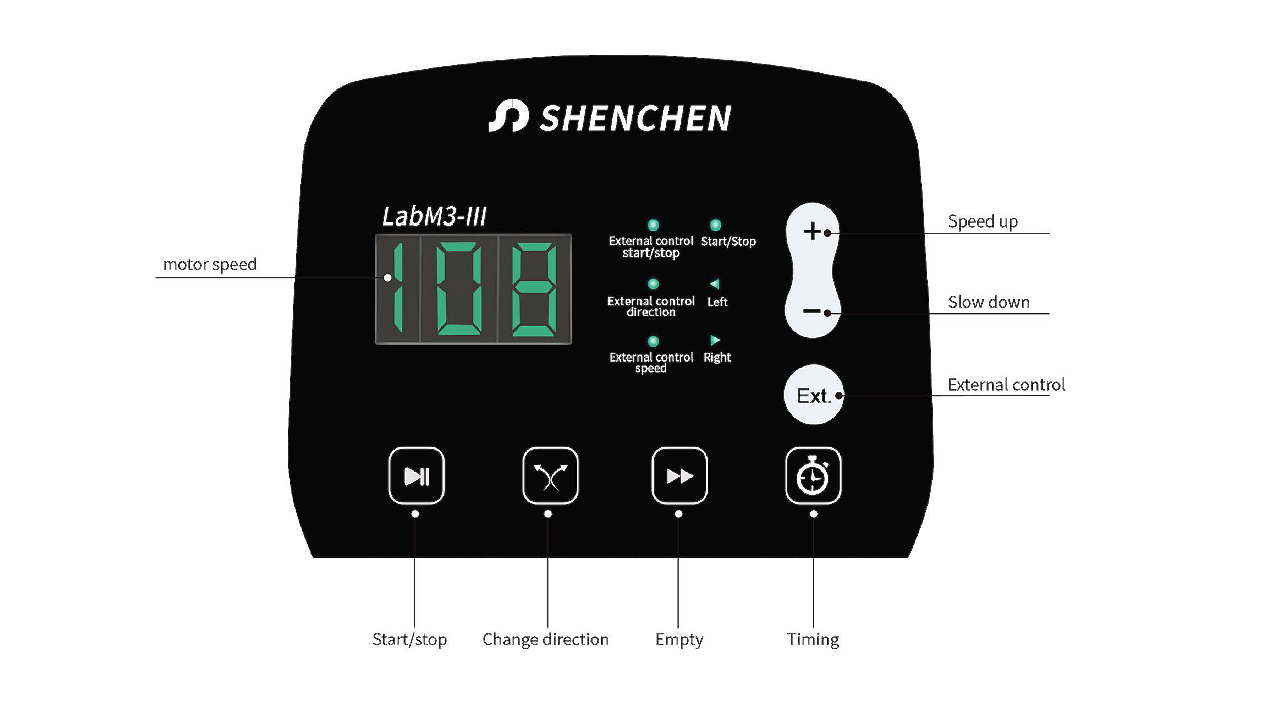

The LabM3-III peristaltic pump offers precise microfluidic flow control for budget-conscious needs. As the latest advancement in the LabM series, it includes a new servo motor for enhanced performance. Capable of achieving higher flow rates than the LabM1-III, it displays motor speed in rpm on a 3-digit LED interface and can be operated via a mechanical keypad or externally. Basic functions such as start, stop, speed adjustment, direction change, and fast forward for filling or emptying are available. A time range of 0.5 to 999 seconds allows for simple time-based dispensing.
Features & Benefits
- 3 digital LED display motor speed, mechanical keypad control,
- ABS engineering plastic shell and UV spray coating: anti-corrosion and anti-static,
- Motor speed range of 0.1 to 350 rpm,
- Up to 8 channels through stacked EasyPump series pump heads with 4 rollers,
- Flow rate ranges from 5.3 µL/min to 1808 mL/min,
- Suitable for 1.6 and 2.4 mm wall thickness tubing,
- RS485 & RS232 interface, Modbus protocol,
- CE & SGS certifications.

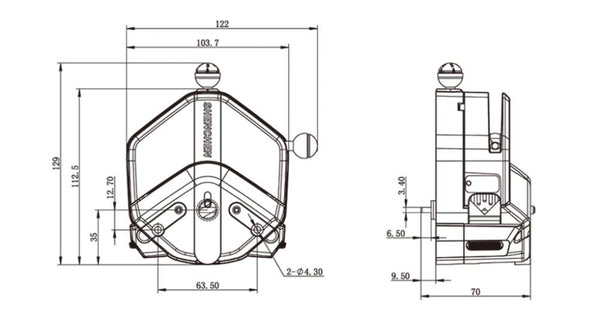

Pump head options
| Pump head |
Occlusion |
Number of channels |
Tubing wall thickness |
| EasyPump I |
Fixed |
Single (1) |
1.6 mm |
| EasyPump II |
Fixed |
Single (1) |
2.4 mm |
| EasyPump V |
Fixed |
Dual (2) |
1.6 mm |
| EasyPump III |
Adjustable |
Single (1) |
1.6 mm |
| EasyPump IV |
Adjustable |
Single (1) |
2.4 mm |
| EasyPump VI |
Adjustable |
Dual (2) |
1.6 mm |
Tubing & Flow range
| Pump Head |
Tubing |
Tubing ID x WT (mm) |
Flow rate (mL/min)
(0.1 - 350 rpm) |
|
EasyPump I
EasyPump III
(Single Channel)
|
13# |
0.8 x 1.6 |
0.0053 - 19 |
| 14# |
1.6 x 1.6 |
0.027 - 95 |
| 19# |
2.4 x 1.6 |
0.055 - 193 |
| 16# |
3.1 x 1.6 |
0.093 - 327 |
| 25# |
4.8 x 1.6 |
0.196 - 688 |
| 17# |
6.4 x 1.6 |
0.333 - 1167 |
| 18# |
7.9 x 1.6 |
0.43 - 1505 |
|
EasyPump II
EasyPump IV
(Single Channel)
|
15# |
4.8 x 2.4 |
0.18 - 630 |
| 24# |
6.4 x 2.4 |
0.273 - 957 |
| 35# |
7.9 x 2.4 |
0.383 - 1342 |
| 36# |
9.6 x 2.4 |
0.517 - 1808 |
|
EasyPump V
EasyPump VI
(Dual Channel)
|
13# |
0.8 x 1.6 |
0.0053 - 19 |
| 14# |
1.6 x 1.6 |
0.027 - 95 |
| 19# |
2.4 x 1.6 |
0.055 - 193 |
| 16# |
3.1 x 1.6 |
0.093 - 327 |
| 25# |
4.8 x 1.6 |
0.197 - 688 |
Content
1x LabM3-III peristaltic pump with EasyPump(s) pump head
1x Power supply
With the EasyPump pump I, III, V, and VI, for each channel:
- 1x 2m of 25# (4.8 x 1.6 mm ID x WT) peristaltic tubing
With the EasyPump pump II and IV, for each channel:
- 1x 2m of 15# (4.8 x 2.4 mm ID x WT) peristaltic tubing
Specifications
| Performance specifications |
| Flow rate range |
5.3 µL/min - 1808 mL/min |
| Speed range |
0.1 - 350 rpm |
| Speed resolution |
0.1 rpm within 0-100 rpm, 1 rpm up to 350 rpm |
| Compatible tubing |
1.6 and 2.4 mm wall thickness tubing |
| Max outlet pressure |
0.1 - 0.27 MPa |
| Testing time range |
0.5 - 999 s |
| External control signal |
0-5 V, 0-10 V, 4-20 mA in option |
| Start/stop, change direction signal |
Passive switch signals such as foot pedal switch
Active switch signal: 5V, 12V, 24V (optional) |
| Communication interface |
RS232, RS485 supports ModBus protocol (RTU mode) |
| Electrical specifications |
| Motor type |
Closed-loop stepper motor |
| Display |
3 digital LED |
| Control method |
Mechanical keypad |
| Keypad lifetime |
300,000 times |
| Power supply |
220V +/- 10% 50Hz/60Hz
110V +/- 10% 50Hz/60hz |
| Physical specifications |

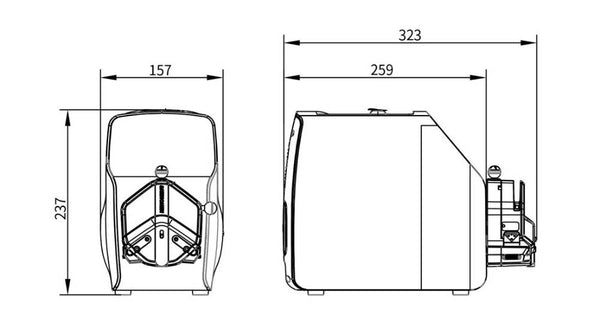

| Drive dimensions (LxWxH) |
259 x 157 x 237 mm |
| Drive weight |
4.4 kg |
| Power consumption |
< 80 W |
| Working temperature |
0-40 °C |
| Relative humidity |
< 80% |
| IP rate |
IP31 |
| Drive material |
ABS engineering plastic shell and UV spray coating |
| Pump head housing material |
Engineering plastic / PPS |
| Pump head rollers material |
304 stainless steel |
| Certifications |
CE, SGS |
| Warranty |
3 years |
Documentation
? LabM3-III standard peristaltic pump brochure
? LabM series pump manual
? LabM series MODBUS Protocol
Appliable to all Innofluid Lab peristaltic pump series: How to Control a LabV Pump Using the MODBUS Protocol ?.
