Flangeless Ferrule (10-pack) - PFA

This Flangeless ferrule is a component designed to create a secure, leak-free seal between a rigid tubing and a mating port. Made from Perfluoroalkoxy Alkanes (PFA), these ferrules are ideal for high-purity, chemically aggressive applications and are meant to be used with PTFE nuts. They are sold in a 10-pack for convenience.

£12.10

Product SKU:

Tube OD - Style: (Required)

1/16" (1.6 mm) - T-Shaped

3.0 mm - U-Shaped

1/8" (3.2 mm) - U-Shaped

Quantity:

Adding to cart… The item has been added

See all options Compare variants and lead times

Ask an expert Talk to our engineers & PhDs

Worldwide Express Shipping

Delivery in 1-3 days for products in stock

Simplified Purchasing

Easily request a quote and track your orders.

Outstanding Support

Support by a team of Engineers and PhDs (Inhouse)

General
Content
Specifications
Documentation

General

Whereas standard ChipShop connectors only accept soft-walled tubing, this set of connectors allows connecting any 1/16" OD rigid tubing to a ChipShop chip.

Suitable for rigid tubing (PTFE, PEEK, etc.) with an OD of 1/16" (1.6 mm). Manufactured in blue TPE, max. pressure of 3.2 bar with a 1/16" OD PEEK tubing.

Plugs to block unused ports are also available in our shop.

Tube OD - Style

Sort by

Flangeless Ferrule (10-pack) - PFA

SKU: DM-FE-005

1/16" (1.6 mm) - T-Shaped

£12.10

Buy in bulk and save

Available immediately

Flangeless Ferrule (10-pack) - PFA

SKU: DM-FE-006

3.0 mm - U-Shaped

£12.10

Buy in bulk and save

Available immediately

Flangeless Ferrule (10-pack) - PFA

SKU: DM-FE-007

1/8" (3.2 mm) - U-Shaped

£12.10

Buy in bulk and save

Available immediately

This Flangeless ferrule is a component designed to create a secure, leak-free seal between a rigid tubing and a mating port. Made from Perfluoroalkoxy Alkanes (PFA), these ferrules are ideal for high-purity, chemically aggressive applications and are meant to be used with PTFE nuts. They are sold in a 10-pack for convenience.

General

A flangeless ferrule is a critical component for creating a secure connection in microfluidic systems without the need for tubing flanging. As a fluidic nut is tightened, the ferrule compresses around the tubing, forming a tight seal that prevents fluid leakage. The choice between U-Shaped and T-Shaped ferrules depends on the specific nut design to ensure a perfect fit and reliable performance.

Features

Secure Seal: Provides a reliable, leak-free connection by compressing onto the tubing as the nut is tightened.
Durable Material: Constructed from PFA, offering superior chemical resistance, thermal stability, and low friction, making it suitable for a wide range of demanding applications.
Flangeless Design: Eliminates the need for tube flanging, simplifying the assembly process and reducing preparation time.
Shape-Specific Fit: The U-Shaped and T-Shaped designs ensure optimal compatibility with specific nut geometries.

Compatibility Table

Ferrule Reference	Ferrule shape	Recommended Tubing OD	Compatible Nut/Fittings	Nut Port type	Nut Head Style	Nut Material
DM-FE-005	T-Shaped	1/16" (1.6 mm)	DM-NU-002	1/4-28	Standard Knurled	PTFE
			DM-ST-004	1/4-28	Standard Knurled	PTFE
			DM-ST-017	1/4-28	Pretorque Waved	PTFE
			DM-ST-038	M6	Standard Knurled	PTFE
			DM-ST-042	1/4-28	Headless Knurled	PTFE
DM-FE-006 DM-FE-007	U-Shaped	3.0 mm 1/8" (3.2 mm)	DM-NU-004	1/4-28	Standard Knurled	PTFE
			DM-ST-003	1/4-28	Standard Knurled	PTFE
			DM-ST-018	1/4-28	Pretorque Waved	PTFE
			DM-ST-039	M6	Standard Knurled	PTFE
			DM-ST-043	1/4-28	Headless Knurled	PTFE

Content

10x PFA ferrules

Specifications

SKU	DM-FE-005	DM-FE-006	DM-FE-007
Material	PFA	PFA	PFA
Ferrule Shape	T-Shaped	U-Shaped	U-Shaped
Recommended Tubing Material	Rigid Tubing (PEEK, PTFE, etc.)
Recommended Tube OD	1/16" (1.6 mm)	3.0 mm	1/8" (3.2 mm)

DM-FE-005
T-Shaped

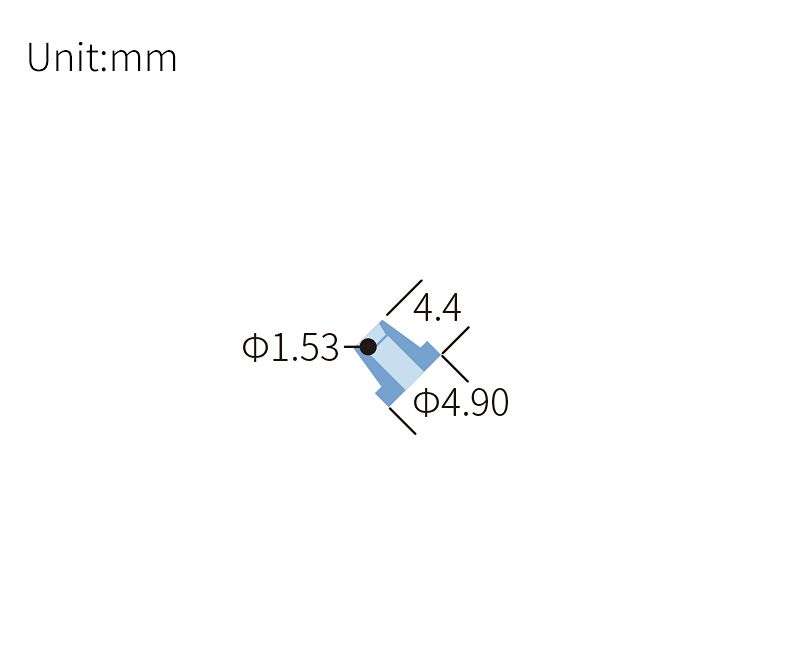

technical drawing of Flangeless ferrule - PFA FE-005

DM-FE-006
U-Shaped

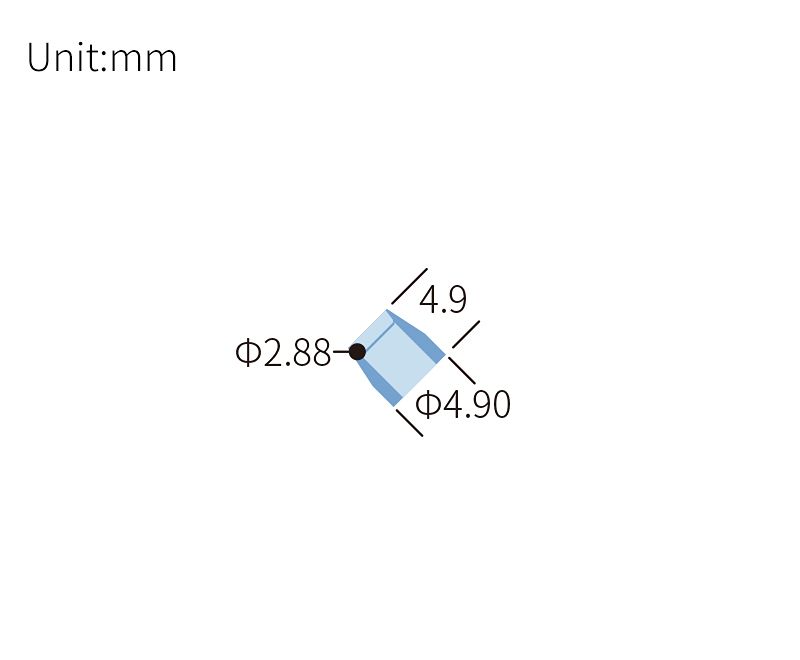

technical drawing of Flangeless ferrule - PFA FE-006

DM-FE-007
U-Shaped

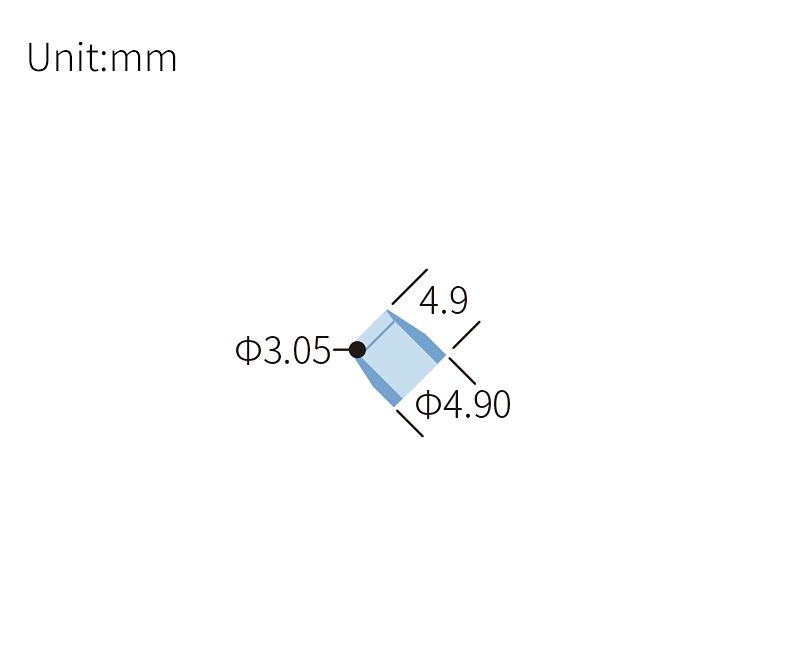

technical drawing of Flangeless ferrule - PFA FE-007

Documentation

Check the chemical compatibilities for this product here: PFA - Chemical Compatibility Chart
