Flangeless Ferrule (10-pack) - PP

Product SKU:

Support by a team of engineers & PhDs

Support by a team of engineers & PhDs

Support by a team of engineers & PhDs

£6.40 - £7.30

Current Stock:

Quantity:

Ask an expert

Adding to cart… The item has been added

Complete Your Setup

Use the checkboxes to select the products you need.

Choose Options

Tube OD - Style (Required)

Darwin Microfluidics

Flangeless Ferrule (10-pack) - PP

£6.40 - £7.30

Decrease Quantity of undefined

Increase Quantity of undefined

General
Content
Specifications
Documentation

General

Whereas standard ChipShop connectors only accept soft-walled tubing, this set of connectors allows connecting any 1/16" OD rigid tubing to a ChipShop chip.

Suitable for rigid tubing (PTFE, PEEK, etc.) with an OD of 1/16" (1.6 mm). Manufactured in blue TPE, max. pressure of 3.2 bar with a 1/16" OD PEEK tubing.

Plugs to block unused ports are also available in our shop.

Tube OD - Style

4 options for this product

Flangeless Ferrule (10-pack) - PP

SKU: DM-FE-004

1/16" (1.6 mm) - T-Shaped

£7.30

Buy in bulk and save

Available immediately

Flangeless Ferrule (10-pack) - PP

SKU: DM-FE-003

1/16" (1.6 mm) - U-Shaped

£6.40

Buy in bulk and save

Available immediately

Flangeless Ferrule (10-pack) - PP

SKU: DM-FE-002

3.0 mm - U-Shaped

£7.30

Buy in bulk and save

Available immediately

Flangeless Ferrule (10-pack) - PP

SKU: DM-FE-001

1/8" (3.2 mm) - U-Shaped

£7.30

Buy in bulk and save

Available immediately

This Flangeless ferrule is a component designed to create a secure, leak-free seal between a rigid tubing and a mating port. Made from PP (Polypropylene), these ferrules are ideal for general-purpose applications and are meant to be used with PP nuts. They are sold in a 10-pack for convenience.

General

A flangeless ferrule is a critical component for creating a secure connection in microfluidic systems without the need for tubing flanging. As a fluidic nut is tightened, the ferrule compresses around the tubing, forming a tight seal that prevents fluid leakage. The choice between U-Shaped and T-Shaped ferrules depends on the specific nut design to ensure a perfect fit and reliable performance.

Features

Secure Seal: Provides a reliable, leak-free connection by compressing onto the tubing as the nut is tightened.
Durable Material: Constructed from Polypropylene (PP), offering good chemical resistance and mechanical strength, making it suitable for a wide range of general laboratory applications.
Flangeless Design: Eliminates the need for tube flanging, simplifying the assembly process and reducing preparation time.
Shape-Specific Fit: The U-Shaped and T-Shaped designs ensure optimal compatibility with specific nut geometries.

Compatibility Table

Ferrule Reference	Ferrule shape	Recommended Tubing OD	Compatible Nut/Fittings	Nut Port type	Nut Head Style	Nut Material
DM-FE-004	T-Shaped	1/16" (1.6 mm)	DM-NU-001	1/4-28	Standard Knurled	PP
			DM-ST-002	1/4-28	Standard Knurled	PP
			DM-ST-015	1/4-28	Pretorque Waved	PP
			DM-ST-036	M6	Standard Knurled	PP
			DM-ST-040	1/4-28	Headless Knurled	PP
DM-FE-003	U-Shaped	1/16" (1.6 mm)	DM-NU-005	1/4-28	Standard Knurled	PP
			DM-NU-006	1/4-28	Standard Knurled	PP
			DM-NU-007	1/4-28	Standard Knurled	PP
			DM-NU-008	1/4-28	Standard Knurled	PP
			DM-NU-009	1/4-28	Standard Knurled	PP
			DM-ST-005	1/4-28	Standard Knurled	PP
			DM-ST-007	1/4-28	Standard Knurled	PP
			DM-ST-009	1/4-28	Standard Knurled	PP
			DM-ST-011	1/4-28	Standard Knurled	PP
			DM-ST-013	1/4-28	Standard Knurled	PP
DM-FE-002 DM-FE-001	U-Shaped	3.0 mm 1/8" (3.2 mm)	DM-NU-003	1/4-28	Standard Knurled	PP
			DM-NU-005	1/4-28	Standard Knurled	PP
			DM-NU-006	1/4-28	Standard Knurled	PP
			DM-NU-007	1/4-28	Standard Knurled	PP
			DM-NU-008	1/4-28	Standard Knurled	PP
			DM-NU-009	1/4-28	Standard Knurled	PP
			DM-ST-001	1/4-28	Standard Knurled	PP
			DM-ST-006	1/4-28	Standard Knurled	PP
			DM-ST-008	1/4-28	Standard Knurled	PP
			DM-ST-010	1/4-28	Standard Knurled	PP
			DM-ST-012	1/4-28	Standard Knurled	PP
			DM-ST-014	1/4-28	Standard Knurled	PP
			DM-ST-016	1/4-28	Standard Knurled	PP
			DM-ST-037	M6	Standard Knurled	PP
			DM-ST-041	1/4-28	Standard Knurled	PP

Content

10x PP ferrules

Specifications

SKU	DM-FE-004	DM-FE-003	DM-FE-002	DM-FE-001
Material	PP	PP	PP	PP
Ferrule Shape	T-Shaped	U-Shaped	U-Shaped	U-Shaped
Recommended Tubing Material	Rigid Tubing (PEEK, PTFE, etc.)
Recommended Tube OD	1/16" (1.6 mm)	1/16" (1.6 mm)	3.0 mm	1/8" (3.2 mm)

DM-FE-004
T-Shaped

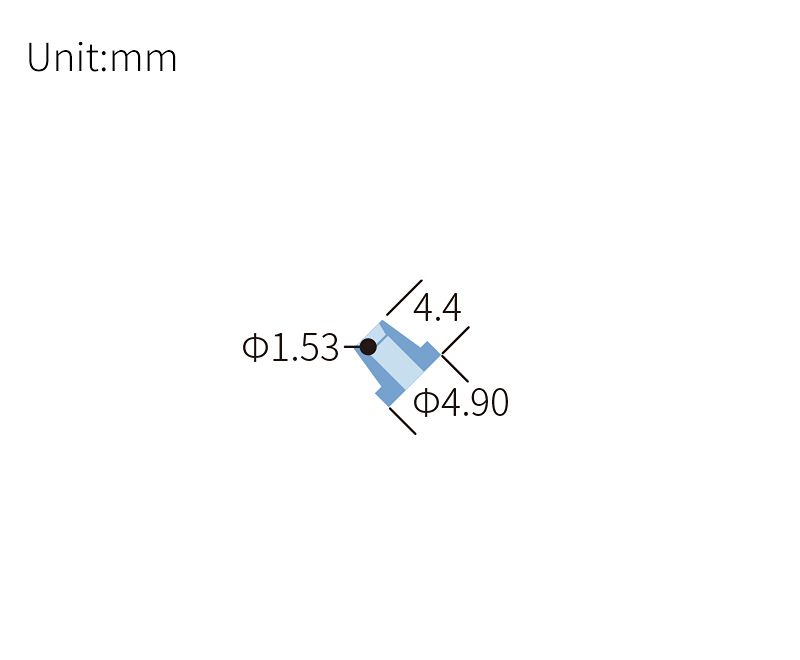

technical drawing of Flangeless ferrule - PP FE-004

DM-FE-003
U-Shaped

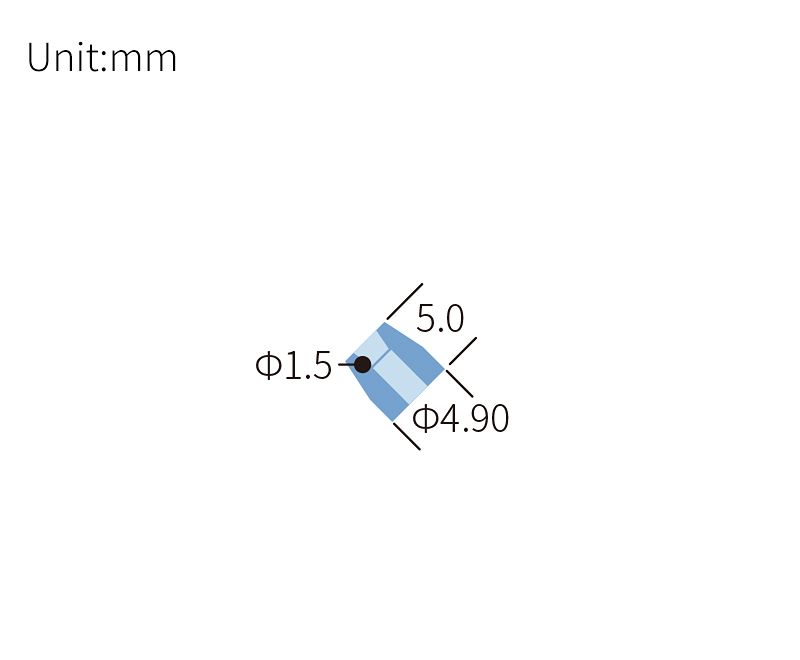

technical drawing of Flangeless ferrule - PP FE-003

DM-FE-002
U-Shaped

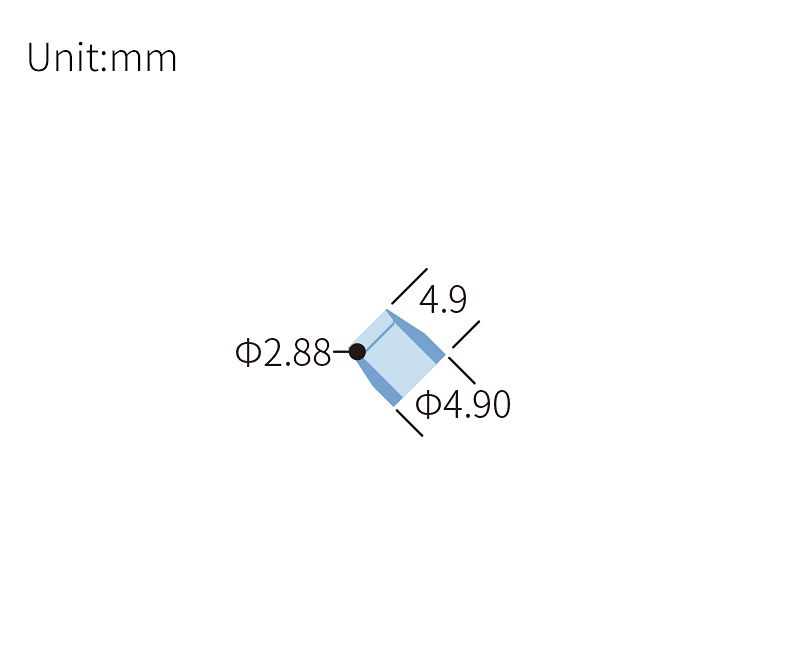

technical drawing of Flangeless ferrule - PP FE-002

DM-FE-001
U-Shaped

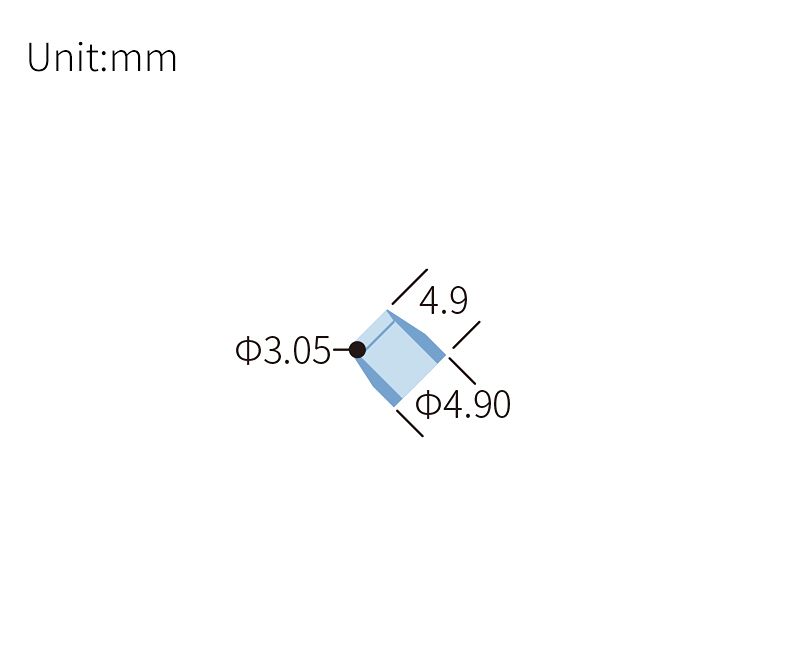

technical drawing of Flangeless ferrule - PP FE-001

Documentation

Check the chemical compatibilities for this product here: PP - Chemical Compatibility Chart
