Whereas standard ChipShop connectors only accept soft-walled tubing, this set of connectors allows connecting
any 1/16" OD rigid tubing to a ChipShop chip.
Suitable for rigid tubing (PTFE, PEEK, etc.) with an OD of 1/16" (1.6 mm). Manufactured in blue TPE, max.
pressure of 3.2 bar with a 1/16" OD PEEK tubing.
Plugs to block unused ports are also available in our shop.
See All Availability
Use the filter to narrow your search
The V6-12L intelligent industrial peristaltic pump offers 30 or 36 channels, delivering flow rates from 0.2 µL/min to 65 mL/min per channel.

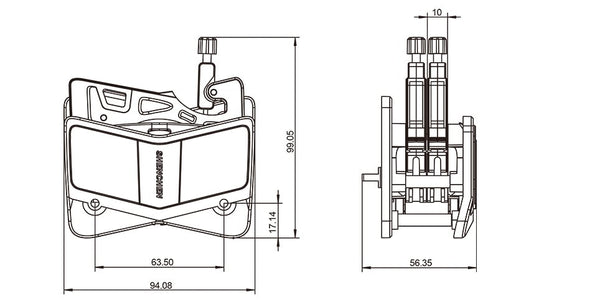

Available with AMC pump heads, 6 or 10 rollers.
General
The V6-12L peristaltic pump is a multichannel industrial flow control system with 30 or 36 channels. It features a servo motor and a 4.3" true-color LCD touchscreen for easy operation. The pump operates at speeds from 0.1 to 150 rpm, delivering flow rates of 0.2 µL/min to 65 mL/min per channel, with built-in calibration capabilities. The single-screen interface displays real-time information including transfer mode, flow rate, motor speed, settings, and system configuration. Users can control the pump through its mechanical keypad and touchscreen or via external controls. Key functions include start/stop operation, speed and flow adjustments, direction control, dispensing, and fast forward for quick filling or emptying.
Features & Benefits
Motor speed and flow rate display,
Intelligent flow rate calibration, back suction feature,

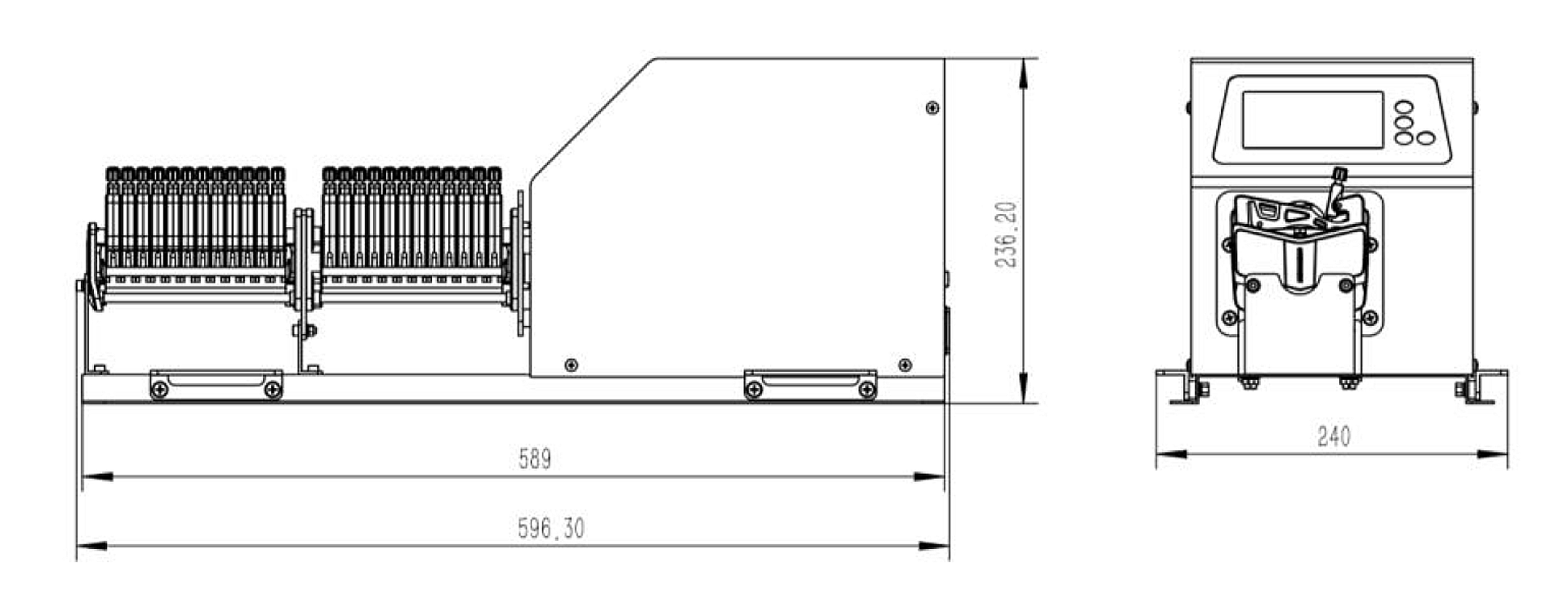

This V6-6L intelligent industrial peristaltic pump features 20 or 24 channels, with a flow rate ranging from 0.2 µL/min to 65 mL/min per channel.
Available with AMC pump heads, 6 or 10 rollers...
The NEW Reglo Peristaltic Pumps deliver the technical precision that is synonymous with Masterflex® and Ismatec® combined to form the first highly accurate, low-flow (from 0.0001 up to 68 mL/min),...
The new version of the well-known IPC programmable peristaltic pump ensures repeatable results accross 8, 12, 16 or 24 channels at low flow rates. Its planetary gear technology ensures provides flows...
A precision peristaltic pump with 4 up to 24 parallel channels from 2 µL/min. A graphic LCD screen displays either rpm or flow and facilitates quick and easy control of the pump.
Silicone tubing is...
This precise peristaltic pump covers a wide range of laboratory applications up to 2400 mL/min. Program complex multi-step workflows from the intuitive graphic interface, and quickly set up your...
MSRP:
Now:
£2,135.80 - £2,325.90
