The SPM+ HD sequential microdispenser is the high-precision, high-volume OEM version of the SPM+. It combines extended syringe capacity with enhanced resolution and accuracy, ensuring pulseless flows and minimal carryover even at higher volumes.
General
The SPM+ HD integrates a high-resolution stepper drive with encoder into the high-volume OEM SPM+ platform. It delivers stable, continuous flows with excellent reproducibility, and supports syringes up to 5 mL for applications requiring both volume flexibility and nanolitre-level accuracy.
Also available in other OEM versions: SPM (standard), SPM+ (high-volume), and SPM HD (high-precision low-volume). For the standalone benchtop version, see LSPone+ HD.
Key Features
- High-precision encoder-controlled drive for maximum accuracy
- Supports 2.5 mL and 5 mL syringes with nanolitre precision
- Ultra-low pulsation continuous flow
- Minimal carryover and excellent cleanability
- Robust OEM design for integration into analytical and diagnostic instruments

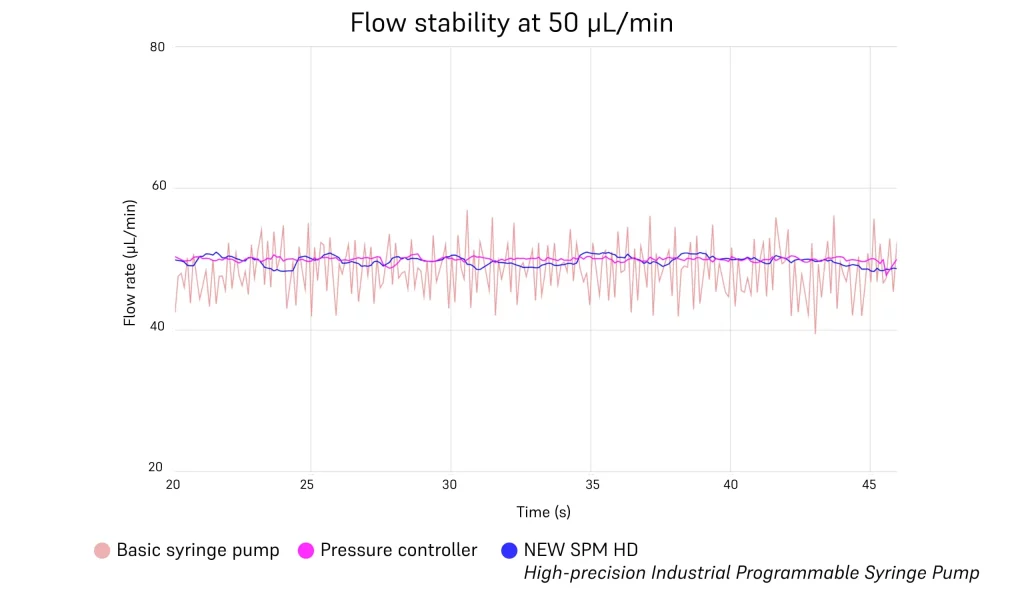

Improved Flow Stability
Conventional syringe and peristaltic pumps exhibit pulsation and drift at sub-µL/min rates. The SPM+ HD delivers continuous, pulseless flow with enhanced resolution, eliminating the need for dampers, sensors, or closed-loop feedback.
- Pulseless flow across the full operating range (unlike syringe and peristaltic pumps, which produce significant pulsation at low rates)
- Stable baselines without pressure-induced drift (no dependency on compliance or tubing elasticity)
- Direct volumetric control for reproducible flow delivery
- Simplified setup with no requirement for flow dampers, pressure sensors, or feedback loops
- Compatibility with sensitive applications such as organ-on-chip, single-cell assays, and gradient generation
Result: Cleaner baselines, higher reproducibility, and precise control of experimental conditions at the nanoliter scale.
Applications
Ideal for automated fluidics where both high precision and larger working volumes are required, such as:
- Sample preparation and dilution
- Automated microfluidics and perfusion systems
- High-volume dosing in biotechnology and chemistry
- Sequential injection with high reproducibility
Content
1x SPM+ HD syringe pump with distribution valve
1x Compatible syringe
Specifications
Syringes specifications
| SPM+ HD |
Volume |
Min. flow rate |
Max. flow rate |
Min. dosing volume |
| High-volume syringes |
2.5 mL |
0.359 µL/min |
20 000 µL/min |
5 µL |
| 5 mL |
0.717 µL/min |
40 000 µL/min |
10 µL |
Warning: the high-volume SPM+ HD is only compatible with 2.5 mL and 5 mL syringes. For 50 to 1000 µL syringes, please check out the SPM HD (high-precision low-volume). Low-volume and high-volume syringes cannot be interchanged.
Valve specifications
| Valve configuration |
Zero dead-volume multi-port distribution with encoder |
| Tube port fittings |
Standard 1/4-28 UNF |
| Channel diameter |
0.5 mm, 0.8 mm, or 1 mm |
| Valve materials |
PCTFE body, PTFE or UHMW-PE plug |
| Max. pressure |
7 bar (102 psi) |
Pump specifications
| Accuracy |
< 1% deviation at full stroke |
| Plunger travel |
30 mm with 1 296 000 micro-steps |
| Resolution |
Selectable 3000 steps (standard) / 24000 steps (high) |
| Drive |
Screw drive with linear encoder for step loss detection |
| Stroke time |
2 – 3000 seconds |
| Syringe material |
Borosilicate glass |
| Plunger material |
PTFE |
General specifications
| Operating temperature |
15–45°C (59–113°F) |
| Operating humidity |
20–80%, non-condensing |
| Max. pressure |
5 bar (72 psi) |
| Communication interface |
USB mini, 9-PIN D-SUB |
| Communication type |
Serial, I2C |
| Power |
18–24 VDC, 2.2 A peak, 40 W |
| Dimensions |
199.7 × 126.3 × 50.5 mm |
| Weight |
1.6 kg |
Documentation
✅ OEM brochure
✅ SPM operating manual
✅ SPM+ HD datasheet
✅ Maintenance guide
