Combining the experience of Masterflex® and Ismatec®, the new Reglo Digital Miniflex® Peristaltic Pump provides you with a connected, intuitive, powerful, and secure fluid handling experience.
This is the first highly accurate, low-flow (from 0.004 up to 365 mL/min), MasterflexLive®-enabled, and 21 CFR Part 11 and EU Annex 11 compliant models to enter the market.
General
Reglo Digital Miniflex® versatile multichannel pump for accurate low-flow fluid delivery – with an intuitive touch-screen interface. Flow rate from 0.004 up to 365 mL/min.
- Intuitive 5" touchscreen: 5" (12.7 cm) capacitive TFT/RGB touch screen with in-plane switching for a clear, wide viewing angle. Capacitive screen can be used with gloves.
- Miniflex® pump head: Accepts continuous tubing for clean, uninterrupted fluid paths.
- Programmable: Continuous run, volume dispense, and time dispense modes -- batch control and interval/off time in Volume and Time modes.
- 3-roller pump head
- Connected: Remotely monitor and control critical processes via MasterflexLive® on your smartphone. You can also control the pump from a computer: with WiFi capabilities, there is no need for ethernet connectivity.
- Compliant with 21 CFR Part 11 & EU Annex 11: robust management of data, digital records, & controlled access to data
- Reliable: no-maintenance BLDC with encoder – uses less power & is more reliable than older models.
- Flexible operational control via screen, MasterflexLive®, or analogue remote control.
- Anti-drip and programmable speed ramping: ensure accuracy and minimize sample loss.
- Small footprint: 229 x 147 x 157 (L x W x H, mm), 9 x 5.8 x 6.3 (L x W x H, inches).

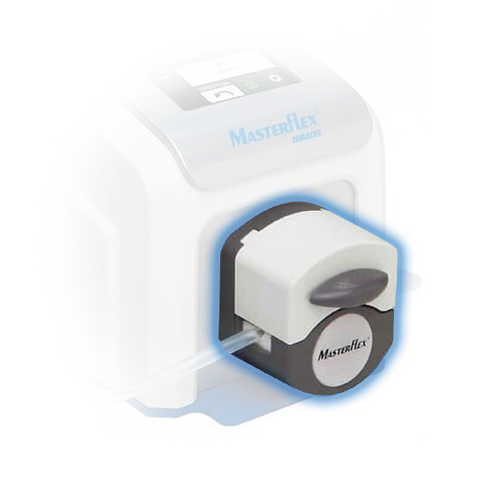

Miniflex pump head
The Miniflex pump head features a wide occlusion angle that prevents fluid backflow up to the rated pressure of the tubing. Self-lubricating thermoplastic polyester rollers are low friction and long-wearing for smooth operation and long life. The 3-roller design ensures minimal pulsation and a wide flow-rate range.
Operating modes
Use the user-friendly touchscreen interface of the pump to program your experiments following these operating modes:
- Dispense volume / time
- Interval (pause)
- Ramp (up/down)
- Batching
- Anti-drip
- Flow rate (μL/min, μL/hr, mL/min, mL/hr, L/day, oZ/min, oZ/hr, RPM, %)
Flow rates
| L/S Tubing size |
Inner Diameter |
1 Channel |
2 Channels (per channel) |
| L/S 13 |
0.8 mm (0.03") |
0.008 to 14 mL/min |
0.008 to 14 mL/min |
| L/S 14 |
1.6 mm (0.06") |
0.028 to 49 mL/min |
0.028 to 49 mL/min |
| L/S 16 |
3.2 mm (0.12") |
0.108 to 189 mL/min |
0.108 to 189 mL/min |
| L/S 25 |
4.8 mm (0.19") |
0.21 to 367 mL/min |
N/A |
Remote control with MasterflexLive®
MasterflexLive is a secure, Cloud-enabled platform for control and monitoring of Masterflex pumps; get real-time control of all pump parameters – including speed, flow rate, dispense volume, and more. You can monitor and adjust critical processes running 24/7 without the need for onsite personnel while push notifications alert you to operating conditions and error messages. Internet connection via standard Ethernet (RJ45) jack on the rear of drive; USB connection allows for downloadable firmware updates to be loaded into the pump.
Content
1x Reglo Digital Miniflex peristaltic pump drive
1x Reglo Digital Miniflex peristaltic pump head
1x Power supply
Specifications
| Compatible tubing type |
Flexible tubing without stoppers |
| Compatible tubing dimensions |
L/S® 13, 14, 16, and 25*
*Only compatible with single-channel version |
| Max. pressure |
3 bar (45 psi) |
| Speed range |
0.1 to 350 rpm |
| Speed control accuracy |
+/- 0.1 % |
| Resolution |
0.1 rpm |
| Motor |
BLDC with encoder |
| Number of rollers |
3 |
| Display |
5” capacitive touchscreen, RGB with
IN-plane switching (wide viewing angle) |
| Dimensions and weight |
229 x 147 x 157 (L x W x H, mm) - 3.2kg
9 x 5.8 x 6.3 (L x W x H, inches) - 7lbs |
| Rear panel control & connections |
RJ45, 25 pin serial port, on/off switch, USB port, power supply connection |
| Analogue |
Through DB-25
- In: Speed (via mA, V), Start/Stop, Direction (CW/CCW), Prime
- Out: Tach output 5V TTL pulse, drive running, local/remote, open-head relay
|
| Digital |
- RJ-45 Ethernet and WiFi (for MasterflexLive Cloud connectivity),
- USB (for firmware upgrades)
|
| Power supply |
Separate Universal Voltage input 90 to 260V, 24V out 90W max |
| Enclosure materials |
ABS Plastic housing with an aluminum chassis and aluminum bezel |
| Approvals |
CE, RoHS 2; Power supply is UL, cUL |
| IP rating |
IP31 |
| Warranty |
2 years |
Documentation
? Reglo Digital Miniflex user guide
