This bundle gathers 4 MEPS-TBC-WL organ-on-a-chip devices as well as all accessories necessary for their use. The MEPS-TBC-WL platform allows 2D-3D co-culture of tissues with physiological shear stress, for biologically relevant modeling of key organs.
General

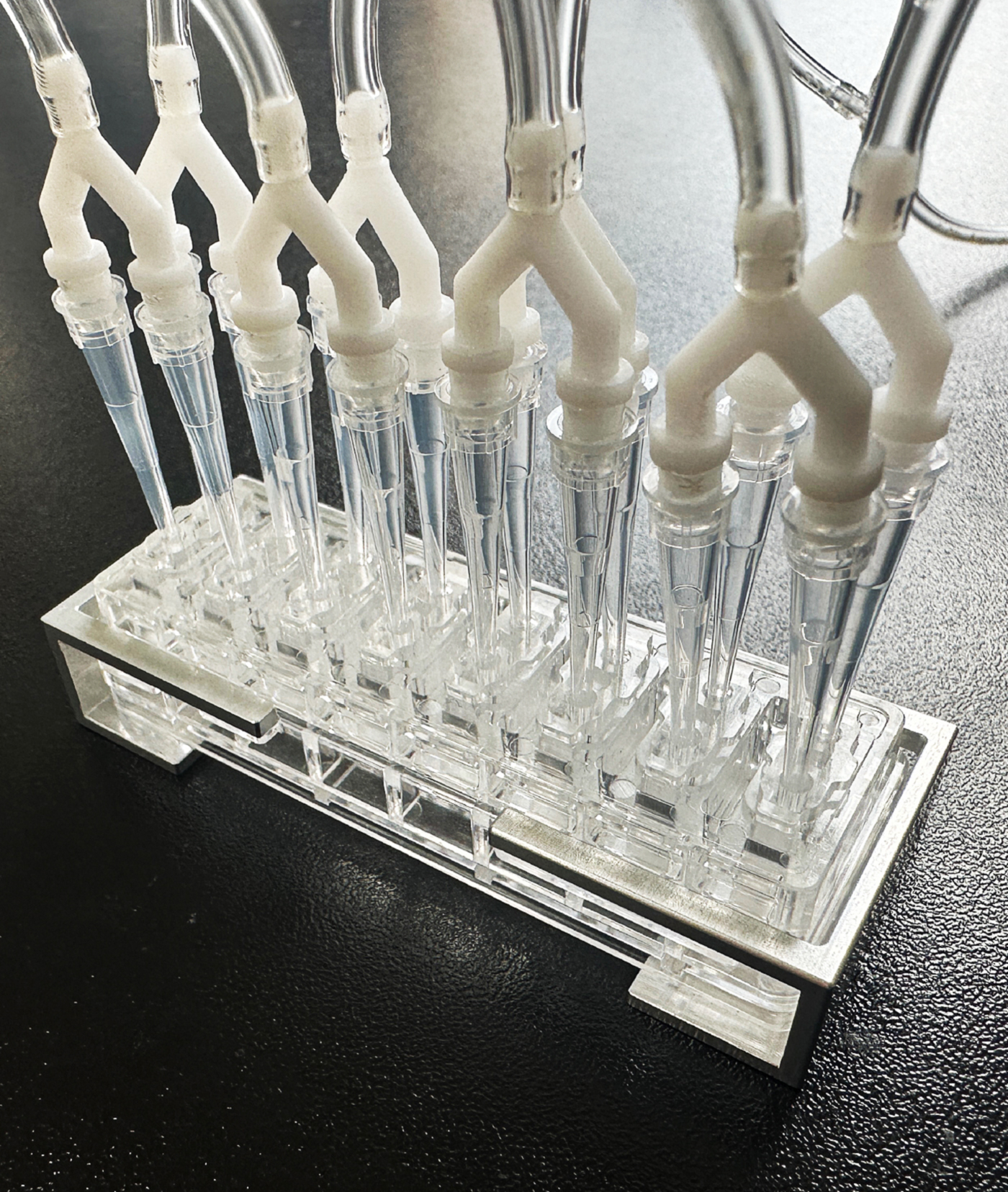

The MEPS-TBC-WL bundle provides all the materials to build 2D-3D tissue-to-tissue barrier models with the MEPS-TBC-WL platform. It includes 4 chips and all accessories for connecting the chips to a flow control system to apply shear stress and recapitulate organ-specific physiological functions. It includes a chip clamp to avoid any leakage of air or solution during perfusion.
The MEPS-TBC-WL platform features 8 independent designs each composed of one upper microfluidic channel and a lower chamber separated by a porous membrane to construct 2D-3D co-culture models.

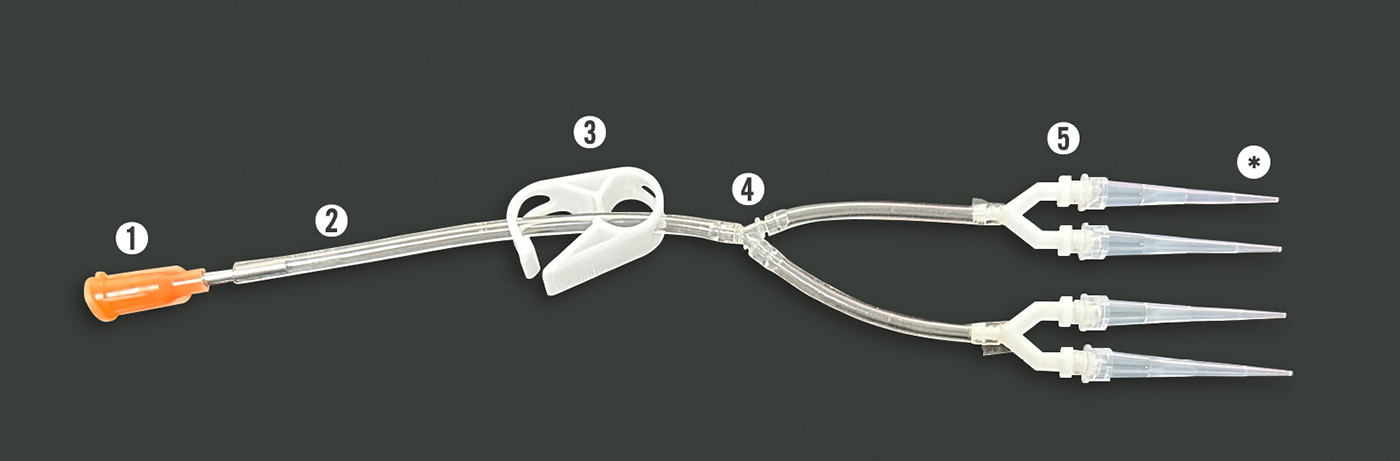

- Plastic dispensing needle 15G, 1/2" (10 EA)
- Tygon tube, 1/16"ID x 1/8" OD (1 EA)
- Tube clamp (10 EA)
- Fitting barb Y style, 1/16" to 1/16" (10 EA)
- Fitting barb Y style, 1/16" to 10G (10 EA)

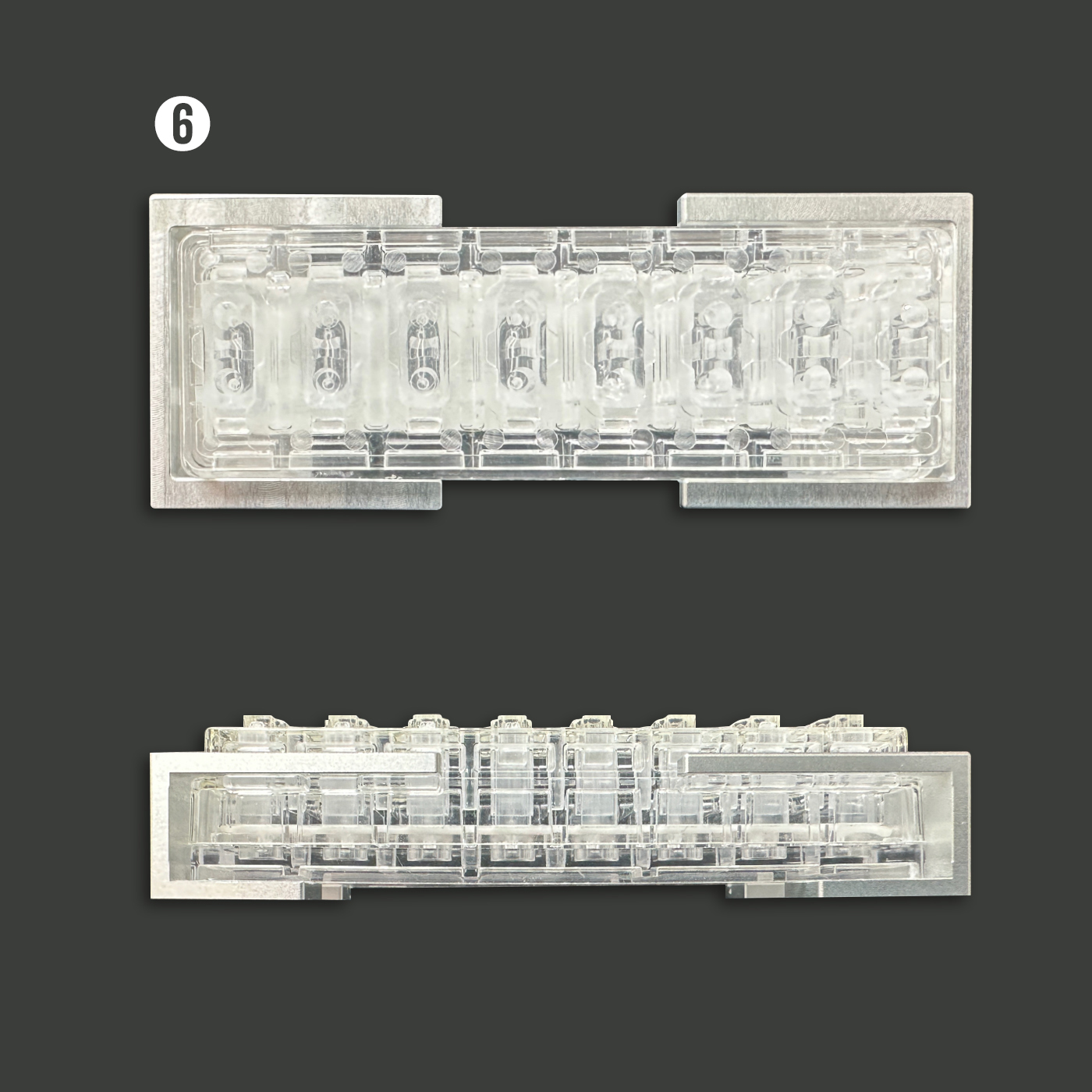

- Chip clamp (2 EA)
*1-10 µL pipette tip (not included)
Content

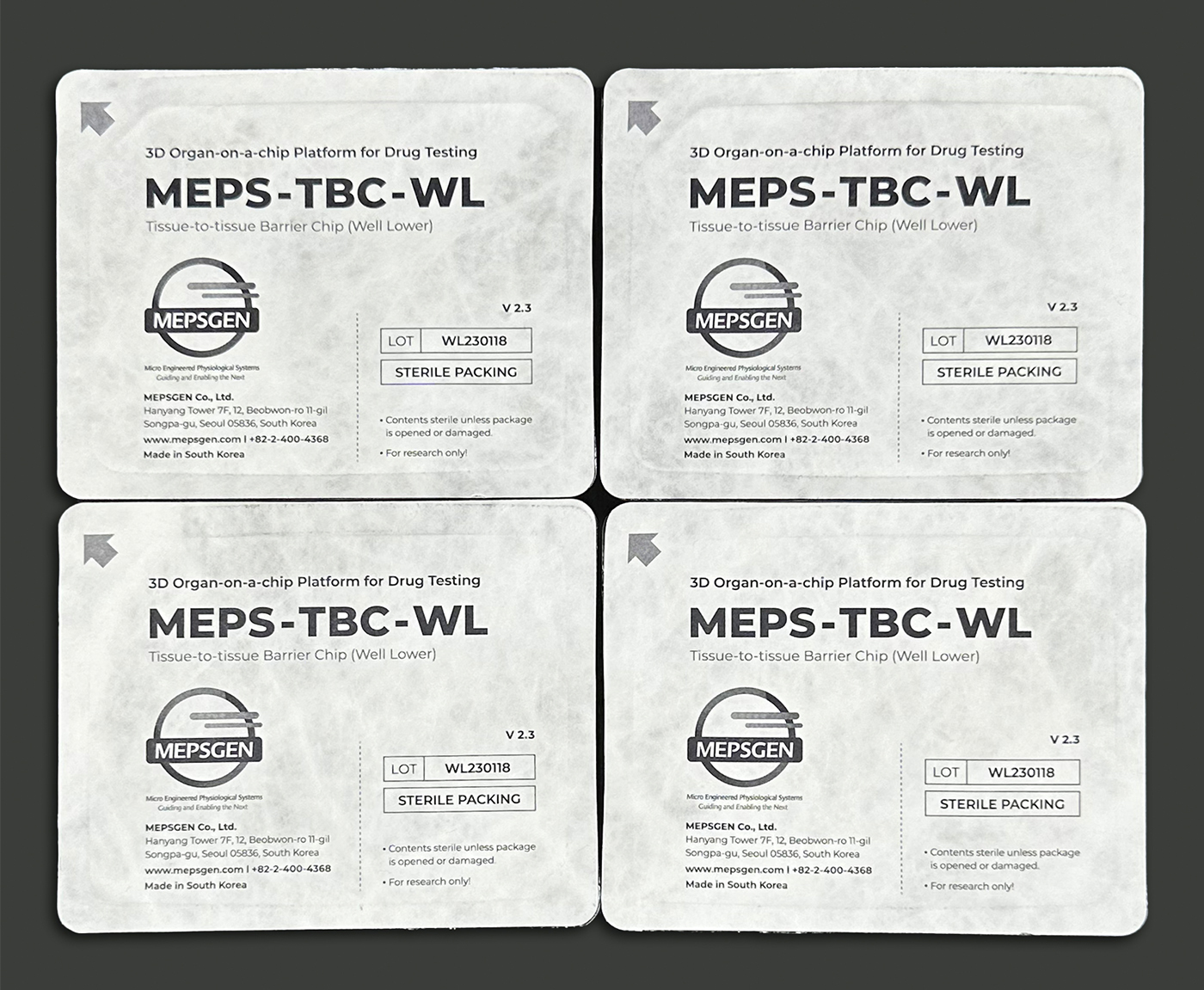

4x MEPS-TBC-CH chips
1x Tygon tube 1/16" ID x 1/8" OD
10x Tube clamps
10x Plastic dispensing needles 15G (1/2")
10x Y barbed connectors (1/16" to 1/16")
10x Y barbed connectors (1/16" to 10G)
2x Chip clamps
Specifications
Technical specifications of the MEPS-TBC-CH platform:
| Applications |
Perfused 2D/3D tissue-tissue co-culture |
| Materials |
Polystyrene |
| Number of units per chip |
8 |
| Dimensions |
30 mm x 75 mm |
| Base |
Channel width x height |
1000 µm x 3000 µm |
| |
Well surface area |
4 mm x 1 mm |
| |
ECM-gel well volume |
2~14.35 µL |
| Insert |
Channel width x height |
500 µm x 100 µm |
| |
Inlet/outlet diameter |
⌀ 2.5 mm |
| |
Perfusion channel volume |
0.3 µL |
| Membrane |
Pore size/density |
3 µm / 6E+05 cm² |
| |
Materials |
Polyester |
| |
Thickness |
9 µm |
| |
Co-culture interface surface |
1.14 mm² |
| Sampling plate |
Plate width x height |
900 µm x 2900 µm |
| |
Containing volume |
50 µL in each well |
