This precise peristaltic pump covers a wide range of laboratory applications up to 266.7 mL/min. Program complex multi-step workflows from the intuitive graphic interface, and quickly set up your experiment.
Various pump heads are available from 1 up to 8 channels. Silicone tubing included with each pump channel.
General
The L100-1F is a compact yet powerful precision peristaltic pump for accurate dispensing over a wide range of flow rates. Program multi-step workflows from the convenient touch screen, various configurations of pump heads, and channels available.
- 7" LCD color touch screen and intuitive display: program your pump directly from the built-in interface
- Control your pump from the touch screen, footswitch, analog signal, and communication commands, combined with a variety of interfaces (USB, RJ11, DB9, etc.) for easy system connection
- Multiple control modules designed for a wide variety of applications, including routine and multi-step complex applications:
- 9 running control modules: constant, ramp up, ramp down, stepped up, stepped down, sine, constant dispensing, ramp up dispensing. ramp down dispensing
- 8 logic control modules: direction, delay, event trigger, status output, pause, jump, loop, stop
The L100-1F can dispense fluids from 1.5 µL/min to 266.7 mL/min (0-100 rpm CW/CCW), with a speed resolution of 0.1 rpm.
Four different pump heads are available. Each of them allows you to create a specific setup in terms of number of channels, tubing, number of rollers, and flow range. In the Specifications tab, a table lists the tubing requirements and the maximum flow rate possible for each pump head.
Tip: Adding rollers will allow a more accurate and less pulsatile flow, but a lower max. flow rate.
Silicone tubing included with each channel:
- DG: 3-stop 1*1 mm (1 mm ID x 3 mm OD) and 2*1 mm (2 mm ID x 4 mm OD)
- YZ1515X or YZII15: 16# (3.1 mm ID x 6.3 mm OD) and 25# (4.8 mm ID x 8 mm OD)
- YZ2515X or YZII25: 15# (4.8 mm ID x 9.6 mm OD) and 24# (6.4 mm ID x 11.2 mm OD)
- FG15-13: 16# (3.1 mm ID x 6.3 mm OD) and 25# (4.8 mm ID x 8 mm OD)
- FG25-13: 15# (4.8 mm ID x 9.6 mm OD) and 24# (6.4 mm ID x 11.2 mm OD)
- DG15-24: 16# (3.1 mm ID x 6.3 mm OD) and 25# (4.8 mm ID x 8 mm OD)
- DG15-28: 13# (0.8 mm ID x 4.0 mm OD and 14# (1.6 mm ID x 5.0 mm OD) with slip-on tubing stops
| Pump head |
Materials |
Compatible tubing type |
Number of rollers |
Flow range (0.1-100 rpm) |
|
DG-A (6 rollers)
Up to 8 channels
Not stackable
|
Cartridges: POM
Rollers: Stainless steel
|
3-stop tubing 13#, 14#, 0.5*0.8, 1*1, 2*1, 2.4*0.8
3-stop microbore tubing ID ≤ 3.17 mm, wall thickness 0.8-1 mm
|
6 |
0.5*0.8: 0.0025-2 mL/min
1*1: 0.008-8 mL/min
2*1: 0.028-28 mL/min
2.4*0.8: 0.032-32 mL/min
3*1: 0.048-48 mL/min
|
|
DG-B (10 rollers)
Up to 4 channels
Not stackable
|
Cartridges: POM
Rollers: Stainless steel
|
3-stop tubing 13#, 14#, 0.5*0.8, 1*1, 2*1, 2.4*0.8
3-stop microbore tubing ID ≤ 3.17 mm, wall thickness 0.8-1 mm
|
10 |
0.5*0.8: 0.002-1.5 mL/min
1*1: 0.006-6 mL/min
2*1: 0.022-22 mL/min
2.4*0.8: 0.024-24 mL/min
3*1: 0.032-32 mL/min
|
|
YZ1515X-A / YZII15
0.006-366.7 mL/min
1 channel
Not stackable
|
Housing: PESU
Rollers: Stainless steel
|
Standard tubing without stoppers, wall thickness of 1.6 mm
Tubing sizes: 13#, 14#, 19#, 16#, 25#, 17#, 18#
|
3 |
13# (0.8 mm ID): 0.006-6.3 mL/min
14# (1.6 mm ID): 0.025-25 mL/min
19# (2.4 mm ID): 0.042-41.7 mL/min
16# (3.2 mm ID): 0.077-76.7 mL/min
25# (4.8 mm ID): 0.16-160 mL/min
17# (6.4 mm ID): 0.26-266.7 mL/min
18# (7.9 mm ID): 0.36-366.7 mL/min
|
|
YZ1515X-B
0.006-244.3 mL/min
1 channel
Not stackable
|
Housing: PESU
Rollers: Stainless steel
|
Standard tubing without stoppers, wall thickness of 1.6 mm
Tubing sizes: 13#, 14#, 19#, 16#, 25#, 17#, 18#
|
6 |
13# (0.8 mm ID): 0.006-4.2 mL/min
14# (1.6 mm ID): 0.025-16.7 mL/min
19# (2.4 mm ID): 0.042-27.8 mL/min
16# (3.2 mm ID): 0.077-51.1 mL/min
25# (4.8 mm ID): 0.16-106.7 mL/min
17# (6.4 mm ID): 0.26-177.6 mL/min
18# (7.9 mm ID): 0.36-244.3 mL/min
|
|
YZ2515X
0.16-266.7 mL/min
1 channel
Not stackable
|
Housing: PESU
Rollers: Stainless steel
|
Standard tubing without stoppers, wall thickness of 2.4 mm
Tubing sizes: 15#, 24#
|
3 |
15# (4.8 mm ID): 0.16-160 mL/min
24# (6.4 mm ID): 0.26-266.7 mL/min
|
|
YZII25
0.16-500 mL/min
1 channel
Not stackable
|
Housing: PESU
Rollers: Stainless steel
|
Standard tubing without stoppers, wall thickness of 2.4 mm
Tubing sizes: 15#, 24#, 35#, 36#
|
3 |
15# (4.8 mm ID): 0.16-160 mL/min
24# (6.4 mm ID): 0.26-266.7 mL/min
35# (7.9 mm ID): 0.36-366.7 mL/min
36# (9.7 mm ID): 0.5-500 mL/min
|
|
DG15-24
0.09-300 mL/min
2 channels
Not stackable
|
Cartridges: POM
Rollers: Stainless steel
|
Standard tubing without stoppers
Tubing sizes: 16#, 25#, 17#
|
4 |
16# (3.2 mm ID): 0.09-60 mL/min
25# (4.8 mm ID): 0.24-183.3 mL/min
17# (6.4 mm ID): 0.4-300 mL/min
|
|
DG15-28
0.03-46 mL/min
2 channels
Not stackable
|
Cartridges: POM
Rollers: Stainless steel
|
Standard tubing without stoppers, addition of slip-on tubing stops required
Tubing sizes: 13#, 14#, 0.5*0.8, 1*1, 2*1, 2.4*0.8, or microbore tubing ID ≤ 3.17 mm, wall thickness 0.8-1 mm
|
8 |
ID ≤ 3.17 mm, wall thickness 0.8-1 mm: ≤75 mL/min
0.5*0.8: 0.03-3.2 mL/min
1*1: 0.13-10 mL/min
2*1: 0.3-46 mL/min
2.4*0.8: 0.5-46 mL/min
13# (0.8 mm ID): 0.07-3.8 mL/min
14# (1.6 mm ID): 0.27-18 mL/min
|
|
FG15-13
1 channel
Not stackable
|
Housing: IXEF
Rollers: PA6
|
Standard tubing without stoppers, wall thickness of 1.6 mm
Tubing sizes: 13#, 14#, 19#, 16#, 25#, 17#, 18#
|
3 |
≤ 400 mL/min |
|
FG25-13
1 channel
Not stackable
|
Housing: IXEF
Rollers: PA6
|
Standard tubing without stoppers, wall thickness of 2.4 mm
Tubing sizes: 15#, 24#
|
3 |
≤ 366.7 mL/min |
Pump functions
Display

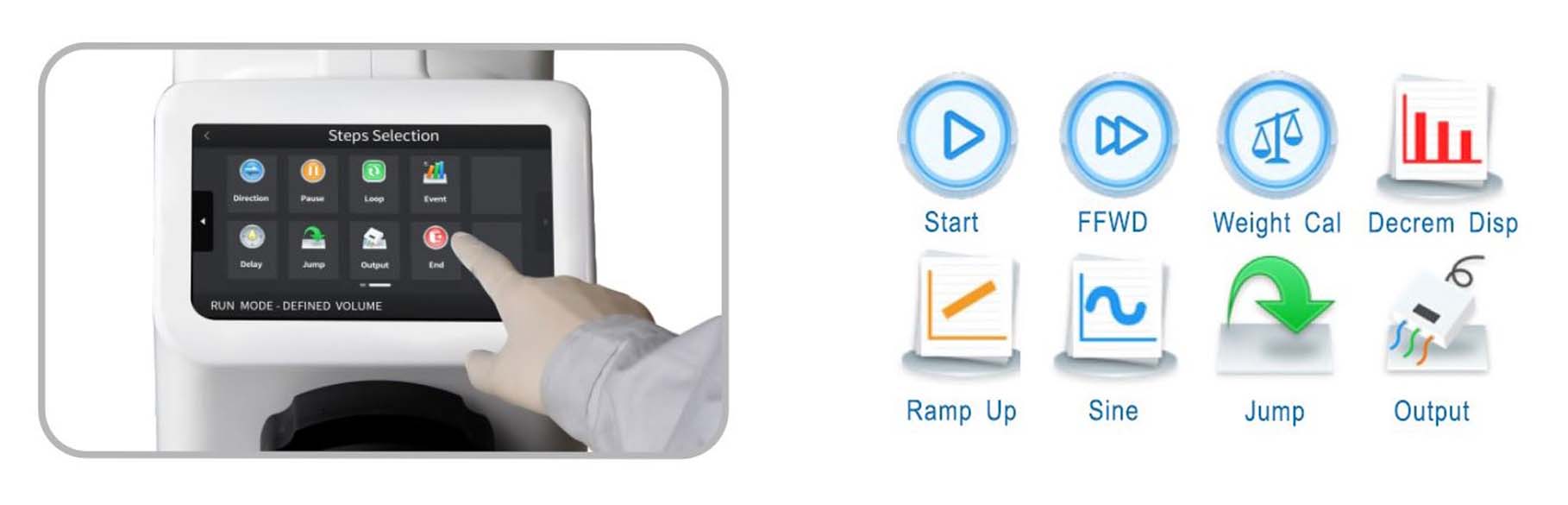

All the intelligent peristaltic pumps have a 7 inch color display, full touch screen, and with an intuitive graphic interface to provide easy-to-use operations:
- the 7 inch color display shows different useful information simultaneously
- the intuitive graphic interface and full touch screen allow you to quickly set up the application process
- the screen is unaffected by dust and can be used with gloves
Programs

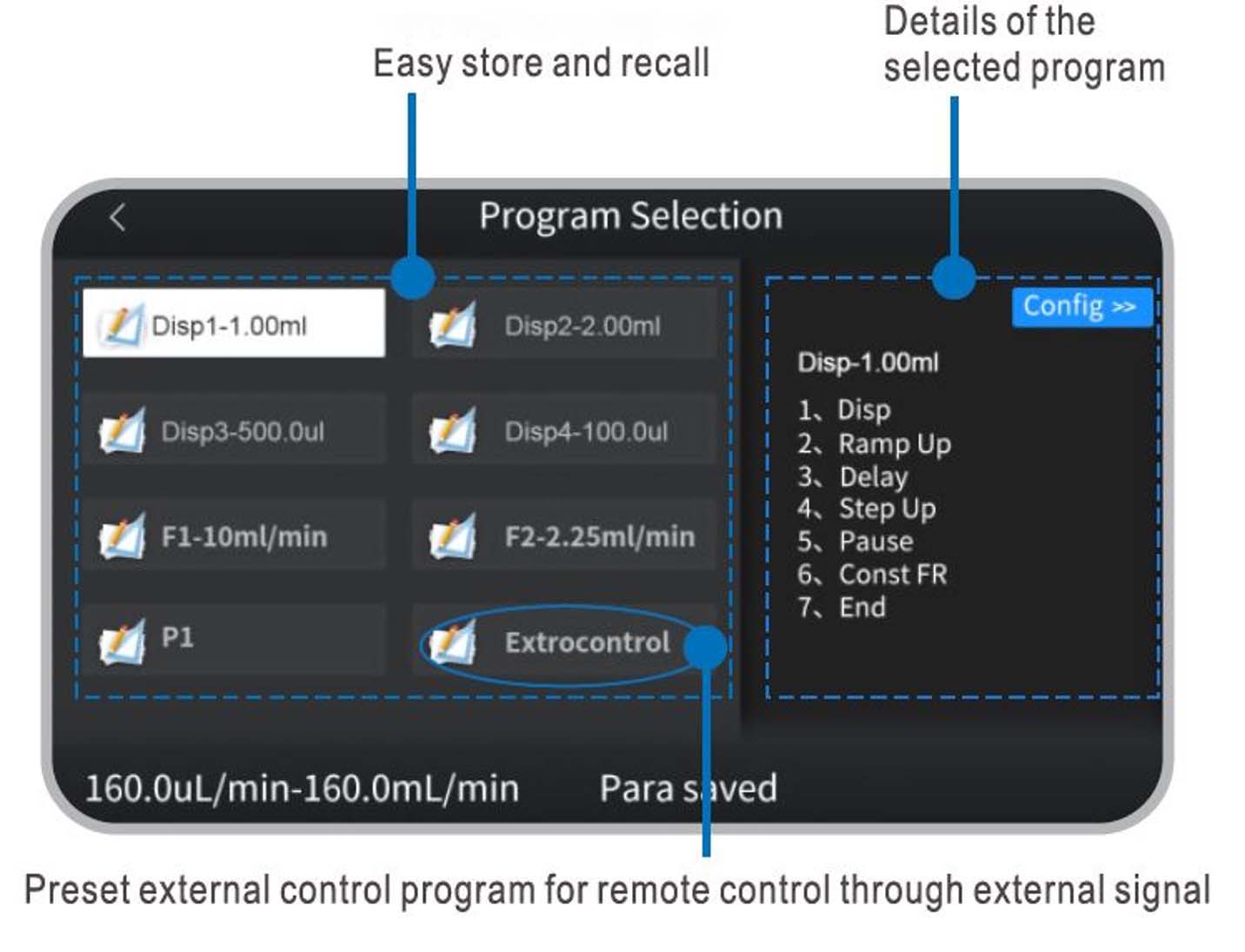

The integrated software allows you to customize parameters by programming, and the parameter programs can be stored and easily recalled:
- 8 parameter programs of up to 10 steps can be configured and stored
- program name can be easily defined by letters and numbers
- the preset external control program is for remote control through external signal
Control modules

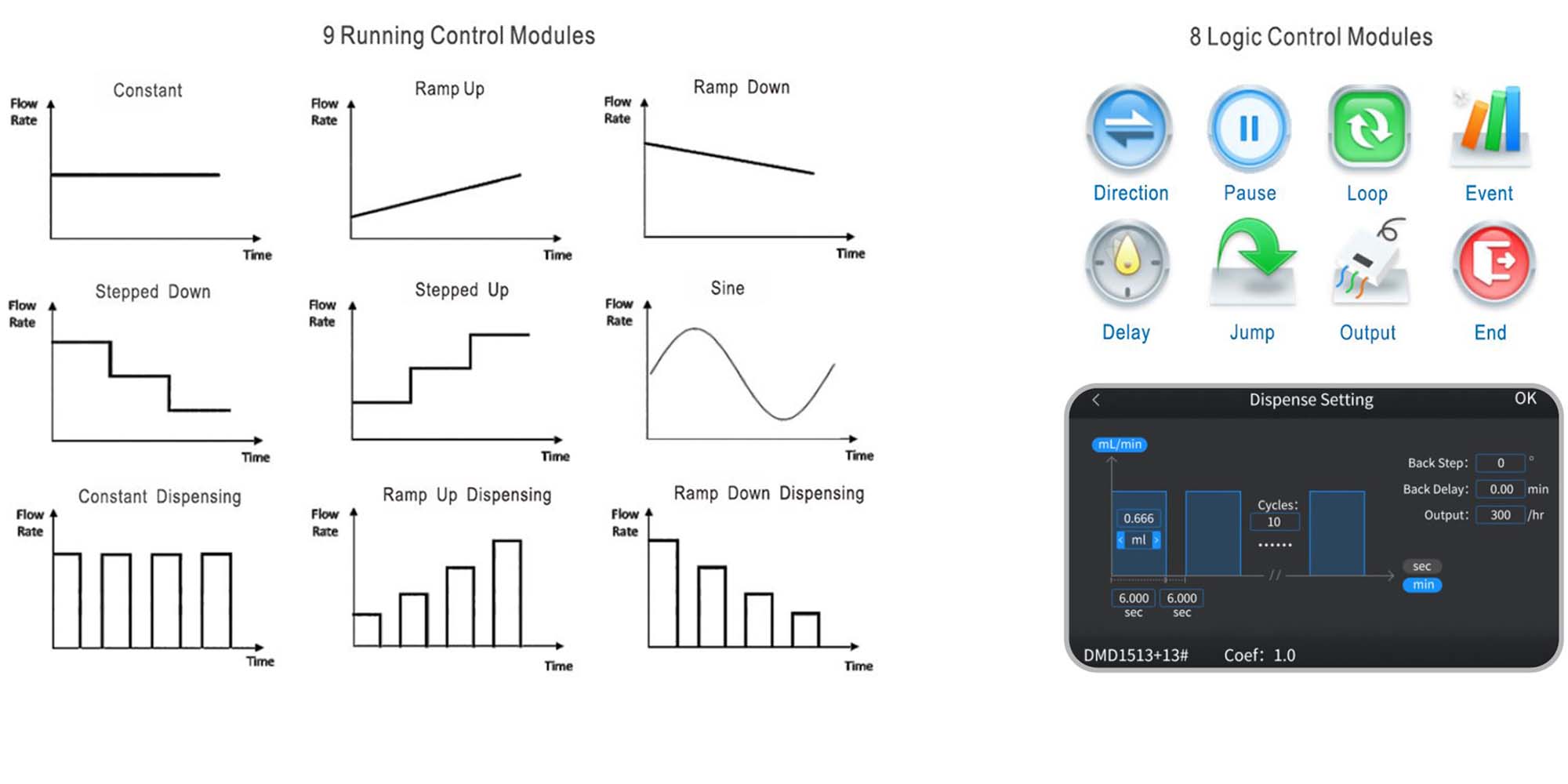

Multiple function modules and intelligent algorithms are designed for a wide variety of applications:
- 9 running control modules: constant, ramp up, ramp down, stepped up, stepped down, sine, constant dispensing, ramp up dispensing. ramp down dispensing
- 8 logic control modules: direction, delay, event trigger, status output, pause, jump, loop, stop
Each running control module can be used independently for simple routine applications or to configure multi-steps programs with multiple modules for a more complex application.
Content
1x L100-1F peristaltic pump drive
1x Pump head
1x Power supply
With the DG pump head, for each channel:
- 1x 1m of 3-stop 1*1 mm tubing
- 1x 1m of 3-stop 2*1 mm tubing
With the YZ1515X or YZII15 pump head:
- 1x 2m of 16# peristaltic tubing
- 1x 2m of 25# peristaltic tubing
With the YZ2515X or YZII25 pump head:
- 1x 2m of 15# peristaltic tubing
- 1x 2m of 24# peristaltic tubing
With the FG15-13 pump head:
- 1x 2m of 16# peristaltic tubing
- 1x 2m of 25# peristaltic tubing
- 1x Mounting plate
With the FG25-13 pump head:
- 1x 2m of 15# peristaltic tubing
- 1x 2m of 24# peristaltic tubing
- 1x Mounting plate
With the DG15-24 pump head:
- 1x 2m of 16# peristaltic tubing
- 1x 2m of 25# peristaltic tubing
With the DG15-28 pump head:
- 1x 2m of 13# peristaltic tubing
- 1x 2m of 14# peristaltic tubing
- O-rings/Slip-on tubing stops
Specifications
| Technical specifications |
| Speed & resolution |
0-100 rpm, speed resolution of 0.1 rpm |
| Dispensing volume |
0.1 mL - 9999 L |
| Accuracy |
2% with calibration |
| Calibration |
Improve the flow rate and dispensing volume accuracy |
| Display |
7" 1024*600 Color LCD |
| Language |
English or Chinese, set as needed |
| Control mode |
Touch screen control, footswitch control, external signal control, and communication control |
| Work mode |
Programming |
| Programming function |
- Running control mode: constant, ramp up/down, stepped up/down, sine, constant dispersing, rump up/down dispersing
- Logic control mode: direction, delay, event trigger, status output, pause, jump, loop, stop
- Configure multi-step program with multiple modules for complex application
|
| External control |
Start/stop control, direction control: voltage level signal or switch signal (dry contact) |
| Speed control |
0-5 V, 0-10 V, 4-20 mA or 0-10 kHz with uniform interface, max speed can be set |
| Communication control |
USB or RS485 (RJ11) interface, Modbus protocol, multiple baud rate (1200/2400/4800/9600/19200/38400 bps) |
| Status output |
Output voltage level signals to indicate pump running status, direction status and other custom status |
| Parameter programs |
7 parameter programs can be stored and easily recalled |
| Delayed start |
Pump can start running at desired time |
| Back suction |
Antidrip through setting back suction angle and delay time for high dispersing accuracy |
| Dispensing volume setting range |
0.001 mL - 9999 L |
| Dispensing time setting range |
0.5 s - 9000 s (0 for continuous transfer without time limit) |
| Dispensing cycle setting range |
1 - 99999 (0 for unlimited) |
| Prime |
Fast fitting and emptying at full speed |
| EMC |
Comply with EMC Directive 2014/30/EU |

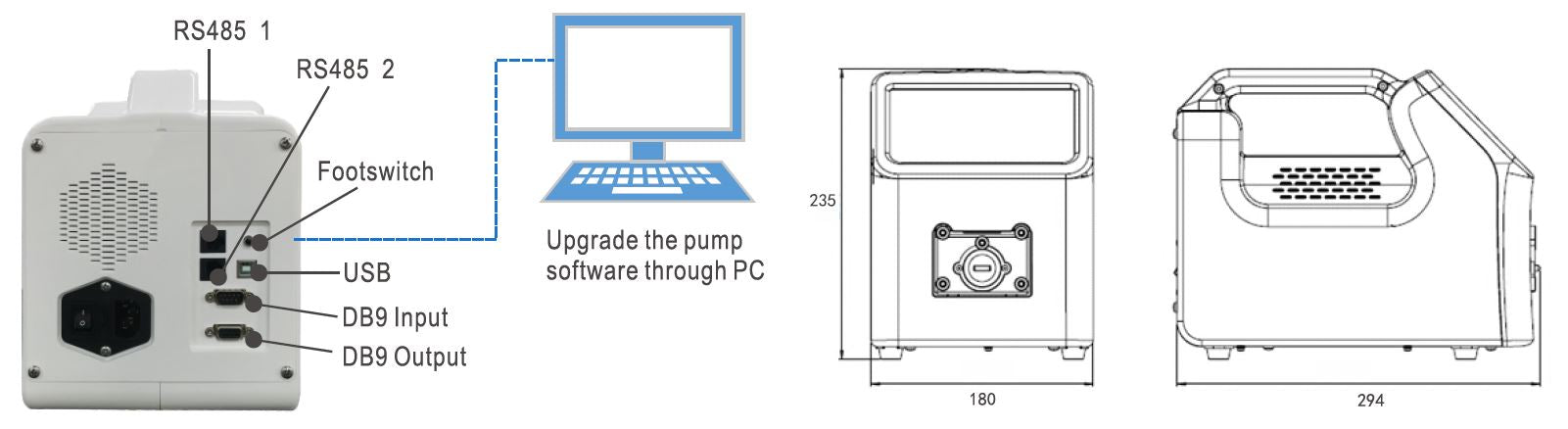

| Dimensions (L x W x H) |
180 mm x 294 mm x 235 mm |
| Power supply |
AC220V, 50-60Hz |
| Operating temperature (°C) |
0 to 40 |
| Relative humidity |
10% - 80% |
| IP rating |
IP31 |
| Drive weight (kg) |
5 |
| Pump head compatibility |
| Pump head |
Number of channels |
Max. stacked pump heads on one drive |
Tubing compatibility |
| YZ1515X |
1 |
1 |
13#, 14#, 19#, 16#, 25#, 17#, 18# |
| YZ2515X |
1 |
1 |
15#, 24# |
| YZII15 |
1 |
1 |
13#, 14#, 19#, 16#, 25#, 17#, 18# |
| YZII25 |
1 |
1 |
15#, 24#, 35#, 36# |
| DG |
Up to 8 |
1 |
3-stop tubing
ID ≤ 3.17 mm, wall thickness 0.8-1 mm
|
| DG15-24 |
2 |
1 |
16#, 25#, 17# |
| DG15-28 |
2 |
1 |
Standard tubing with slip-on tubing stops
ID ≤ 3.17 mm, wall thickness 0.8-1 mm
|
| FG15-13 |
1 |
1 |
13#, 14#, 19#, 16#, 25#, 17#, 18# |
| FG25-13 |
1 |
1 |
15#, 24# |
|
DMD15-13-B
DMD15-13-D
|
1 |
1 |
13#, 14#, 19#, 16#, 25# |
|
BZ15-13
BZ25-13
|
1 |
1 |
14#, 16#, 25#, 17#, 24# |
