The new G100-1L peristaltic pump is an update of the well-known G100-2J. It is still compatible with working directly in the incubator to be as close as possible to your sample or microfluidic chip. It has been improved with a better IP rating of IP66 and more convenient features such as calibration.
Flow range from 0.15 µL/min to 750 mL/min, various pump heads are available from 1 up to 8 channels.
Standard silicone tubing included with each pump channel.
General
This G100-1L peristaltic pump is the new version of the G100-2J, which will soon be discontinued. It is compatible with the incubator environment and is now IP66-rated: dust-proof and resistant to water or highly humid environments. It can be used in different working modes including continuous, timed and volume transfer to suit diverse applications. A calibration feature is now available to obtain a higher flow rate and volume accuracy.
Features & Benefits
- Wide flow range from 0.15 µL/min to 750 mL/min,
- Compatible with relative humidity conditions up to 90%,
- Improved IP rating of IP66 while the G100-2J was IP65,
- Die-cast aluminum housing with powder coat for good corrosion protection,

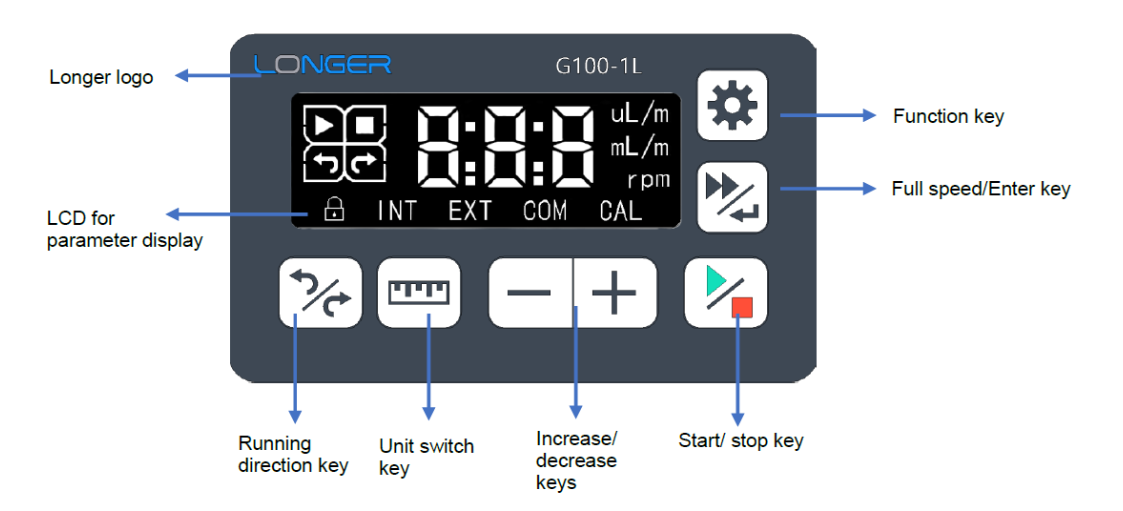

- LCD screen to display flow rate, running time, pump speed, dispensed volume and other parameters,
- Keypad lock function to prevent misoperation (the locking delay time can be tuned),
- Start/Stop, Direction, and Speed parameters can be controlled from the keypad,
- Available with various pump heads, flow range from 0.15 µL/min to 750 mL/min,
- Programmable from a computer: RS485 interface (waterproof connector included).
As indicated by the manufacturer, the G100-1L peristaltic pump can tolerate the common working conditions of a cell culture incubator and has good heat dissipation performance.
Pump head options
| Pump head |
Number of channels |
Max. stacked pump heads on this drive |
Tubing compatibility |
| YZ1515X |
1 |
1 |
13#, 14#, 19#, 16#, 25#, 17#, 18# |
| YZ2515X |
1 |
1 |
15#, 24# |
| YZII15 |
1 |
1 |
13#, 14#, 19#, 16#, 25#, 17#, 18# |
| YZII25 |
1 |
1 |
15#, 24# |
| DG |
Up to 8 |
1 |
3-stop tubing: ID≤ 3.17 mm, wall thickness 0.8-1 mm |
| DG15-24 |
2 |
1 |
16#, 25#, 17# |
| DG15-28 |
2 |
1 |
Standard tubing with slip-on tubing stops: ID≤ 3.17 mm, wall thickness 0.8-1 mm |
DMD15-13-B
DMD15-13-D |
1 |
1 |
13#, 14#, 19#, 16#, 25# |
BZ15-13
BZ25-13 |
1 |
1 |
14#, 16#, 25#, 17#, 24# |
Tubing & Flow range
Silicone tubing included with each channel:
- DG: 3-stop 1*1 mm (1 mm ID x 3 mm OD) and 2*1 mm (2 mm ID x 4 mm OD)
- YZ1515X or YZII15: 16# (3.1 mm ID x 6.3 mm OD) and 25# (4.8 mm ID x 8 mm OD)
- YZ2515X or YZII25 15# (4.8 mm ID x 9.6 mm OD) and 24# (6.4 mm ID x 11.2 mm OD)
- DG15-24 16# (3.1 mm ID x 6.3 mm OD) and 25# (4.8 mm ID x 8 mm OD)
- DG15-28: 13# (0.8 mm ID x 4.0 mm OD and 14# (1.6 mm ID x 5.0 mm OD) with slip-on tubing stops
Tip: Adding rollers will allow a more accurate and less pulsatile flow, but a lower maximum flow rate.
| Pump head |
Materials |
Compatible tubing type |
Nb of rollers |
Flow range (0.1-100 rpm) |
|
DG-A (6 rollers)
Up to 8 channels
Not stackable
|
Cartridges: POM
Rollers: Stainless steel
|
3-stop tubing 13#, 14#, 0.5*0.8, 1*1, 2*1, 2.4*0.8
3-stop microbore tubing ID ≤ 3.17 mm, wall thickness 0.8-1 mm
|
6 |
0.5*0.8: 0.0025-2 mL/min
1*1: 0.008-8 mL/min
2*1: 0.028-28 mL/min
2.4*0.8: 0.032-32 mL/min
3*1: 0.048-48 mL/min |
|
DG-B (10 rollers)
Up to 4 channels
Not stackable
|
Cartridges: POM
Rollers: Stainless steel
|
3-stop tubing 13#, 14#, 0.5*0.8, 1*1, 2*1, 2.4*0.8
3-stop microbore tubing ID ≤ 3.17 mm, wall thickness 0.8-1 mm
|
10 |
0.5*0.8: 0.002-1.5 mL/min
1*1: 0.006-6 mL/min
2*1: 0.022-22 mL/min
2.4*0.8: 0.024-24 mL/min
3*1: 0.032-32 mL/min |
|
YZ1515X-A / YZII15
0.006-366.7 mL/min
1 channel
Not stackable
|
Housing: PESU
Rollers: Stainless steel
|
Standard tubing without stoppers, wall thickness of 1.6 mm
Tubing sizes: 13#, 14#, 19#, 16#, 25#, 17#, 18#
|
3 |
13# (0.8 mm ID): 0.006-6.3 mL/min
14# (1.6 mm ID): 0.025-25 mL/min
19# (2.4 mm ID): 0.042-41.7 mL/min
16# (3.2 mm ID): 0.077-76.7 mL/min
25# (4.8 mm ID): 0.16-160 mL/min
17# (6.4 mm ID): 0.26-266.7 mL/min
18# (7.9 mm ID): 0.36-366.7 mL/min |
|
YZ1515X-B
0.006-244.3 mL/min
1 channel
Not stackable
|
Housing: PESU
Rollers: Stainless steel
|
Standard tubing without stoppers, wall thickness of 1.6 mm
Tubing sizes: 13#, 14#, 19#, 16#, 25#, 17#, 18#
|
6 |
13# (0.8 mm ID): 0.006-4.2 mL/min
14# (1.6 mm ID): 0.025-16.7 mL/min
19# (2.4 mm ID): 0.042-27.8 mL/min
16# (3.2 mm ID): 0.077-51.1 mL/min
25# (4.8 mm ID): 0.16-106.7 mL/min
17# (6.4 mm ID): 0.26-177.6 mL/min
18# (7.9 mm ID): 0.36-244.3 mL/min |
|
YZ2515X / YZII25
0.16-266.7 mL/min
1 channel
Not stackable
|
Housing: PESU
Rollers: Stainless steel
|
Standard tubing without stoppers, wall thickness of 2.4 mm
Tubing sizes: 15#, 24#
|
3 |
15# (4.8 mm ID): 0.16-160 mL/min
24# (6.4 mm ID): 0.26-266.7 mL/min |
|
DG15-24
0.09-300 mL/min
2 channels
Not stackable
|
Cartridges: POM
Rollers: Stainless steel
|
Standard tubing without stoppers
Tubing sizes: 16#, 25#, 17#
|
4 |
16# (3.2 mm ID): 0.09-90 mL/min
25# (4.8 mm ID): 0.24-183.3 mL/min
17# (6.4 mm ID): 0.4-300 mL/min |
|
DG15-28
0.03-46 mL/min
2 channels
Not stackable
|
Cartridges: POM
Rollers: Stainless steel
|
Standard tubing without stoppers, addition of slip-on tubing stops required
Tubing sizes 13#, 14#, 0.5*0.8, 1*1, 2*1, 2.4*0.8, or microbore tubing ID ≤ 3.17 mm, wall thickness 0.8-1 mm
|
8 |
0.5*0.8: 0.03-3.2 mL/min
1*1: 0.13-10 mL/min
2*1: 0.3-46 mL/min
2.4*0.8: 0.5-46 mL/min
13# (0.8 mm ID) 0.07-3.8 mL/min
14# (1.6 mm ID) 0.27-18 mL/min
|
Content
1x G100-1L peristaltic pump drive
1x Pump head (DG or YZ)
1x Power supply
With the DG pump head, for each channel:
- 1x 1m of 3-stop 1*1 mm tubing
- 1x 1m of 3-stop 2*1 mm tubing
With the YZ1515X or YZII15 pump head:
- 1x 2m of 16# peristaltic tubing
- 1x 2m of 25# peristaltic tubing
With the YZ2515X or YZII25 pump head:
- 1x 2m of 15# peristaltic tubing
- 1x 2m of 24# peristaltic tubing
With the DG15-24 pump head:
- 1x 2m of 16# peristaltic tubing
- 1x 2m of 25# peristaltic tubing
With the DG15-28 pump head:
- 1x 2m of 13# peristaltic tubing
- 1x 2m of 14# peristaltic tubing
- O-rings/Slip-on tubing stops
Specifications
| Flow rate range |
0.15 µL/min to 750 mL/min |
| Speed |
0-150 rpm, CW/CCW |
| Speed resolution |
0.01 rpm within 0-10 rpm, 0.1 rpm from 10 rpm to 100 rpm, 1 rpm up to 150 rpm |
| Display |
LCD screen |
| Control mode |
Keypad, footswitch, external signal control, and communication control available |
| External control |
Start/stop control, direction control: voltage level signal or switch signal is optional |
| Speed control |
0-5 V, 0-10 V, 4-20 mA, and 0-10 kHz are optional with a uniform interface, max speed can be changed within 100 rpm |
| Communication control |
RS485 interface (connector included), Longer protocol, or Modbus protocol, the communication parameters (baud rate, parity, stop bit) can be set through the keypad |
| Parameter memory |
Running parameters and system parameters will be saved automatically |
| Running state when power on |
The running state when power is on can be set as stop or as the previous state |
| Prime |
Fast filling or emptying at full speed |
| Certificate |
CE, UKCA |
| Keypad lock function |
The keypad can be locked to prevent misoperation. The locking delay time can be set |
| Dimensions (L x W x H) |
240 mm x 142 mm x 152 mm |
| Power supply |
AC 100-240V, 50Hz/60Hz |
Power consumption
|
25 W |
| Operating temperature |
0-40 °C |
| Relative humidity |
10 % - 90 % |
| IP rating |
IP66 |
| Drive weight |
3.64 kg |
Documentation
?G100-1L peristaltic pump brochure
?G100-1L operating manual
