HPM100 Low Flow Rate Peristaltic Pump for Incubator
The new HPM100 peristaltic pump was designed to operate seamlessly at low flow rates within an incubator, allowing it to be positioned in close proximity to your sample or microfluidic chip. This pump can reach flow rates from 0.2 µL/min to 65 mL/min.
Available with the new AMC pump heads from 1 to 12 channels, with 6 or 10 rollers for less pulsatility.
MSRP:
Now:
2,244.00€ - 2,695.50€
Was:
(You save)
Product SKU:
Worldwide Express Shipping
Delivery in 1-3 days for products in stock
Simplified Purchasing
Easily request a quote and track your orders.
Outstanding Support
Support by a team of Engineers and PhDs (Inhouse)
Complete Your Setup
Accessories and consumables that work with this product
Whereas standard ChipShop connectors only accept soft-walled tubing, this set of connectors allows connecting
any 1/16" OD rigid tubing to a ChipShop chip.
Suitable for rigid tubing (PTFE, PEEK, etc.) with an OD of 1/16" (1.6 mm). Manufactured in blue TPE, max.
pressure of 3.2 bar with a 1/16" OD PEEK tubing.
Plugs to block unused ports are also available in our shop.
See All Availability
Use the filter to narrow your search
The new HPM100 peristaltic pump was designed to operate seamlessly at low flow rates within an incubator, allowing it to be positioned in close proximity to your sample or microfluidic chip. This pump can reach flow rates from 0.2 µL/min to 65 mL/min.
Available with the new AMC pump heads from 1 to 12 channels, with 6 or 10 rollers for less pulsatility.
General
The HPM100 peristaltic pump is a precise multichannel microfluidic flow control system that can sustain incubator environment with its IP66 rating. The pump features six different sealing structures, enabling it to endure a range of harsh, hot, and humid environments while ensuring long-term stable operation. Its aluminum alloy body has excellent heat dissipation performance to be used in an incubator. The pump offers calibration options and displays both motor speed and flow rate on a 4.3" LCD touchscreen. It can be operated using its keypad and screen or controlled externally. This intelligent pump provides various functions, including start, stop, speed adjustment, direction change, fast forward for filling or emptying, dispensing modes.
Features & Benefits
Mode, motor speed and flow rate display,
Easy flow rate calibration, back suction feature,
Dispensing mode with volume and time sets, flow rate and speed sets, repeats, pauses,

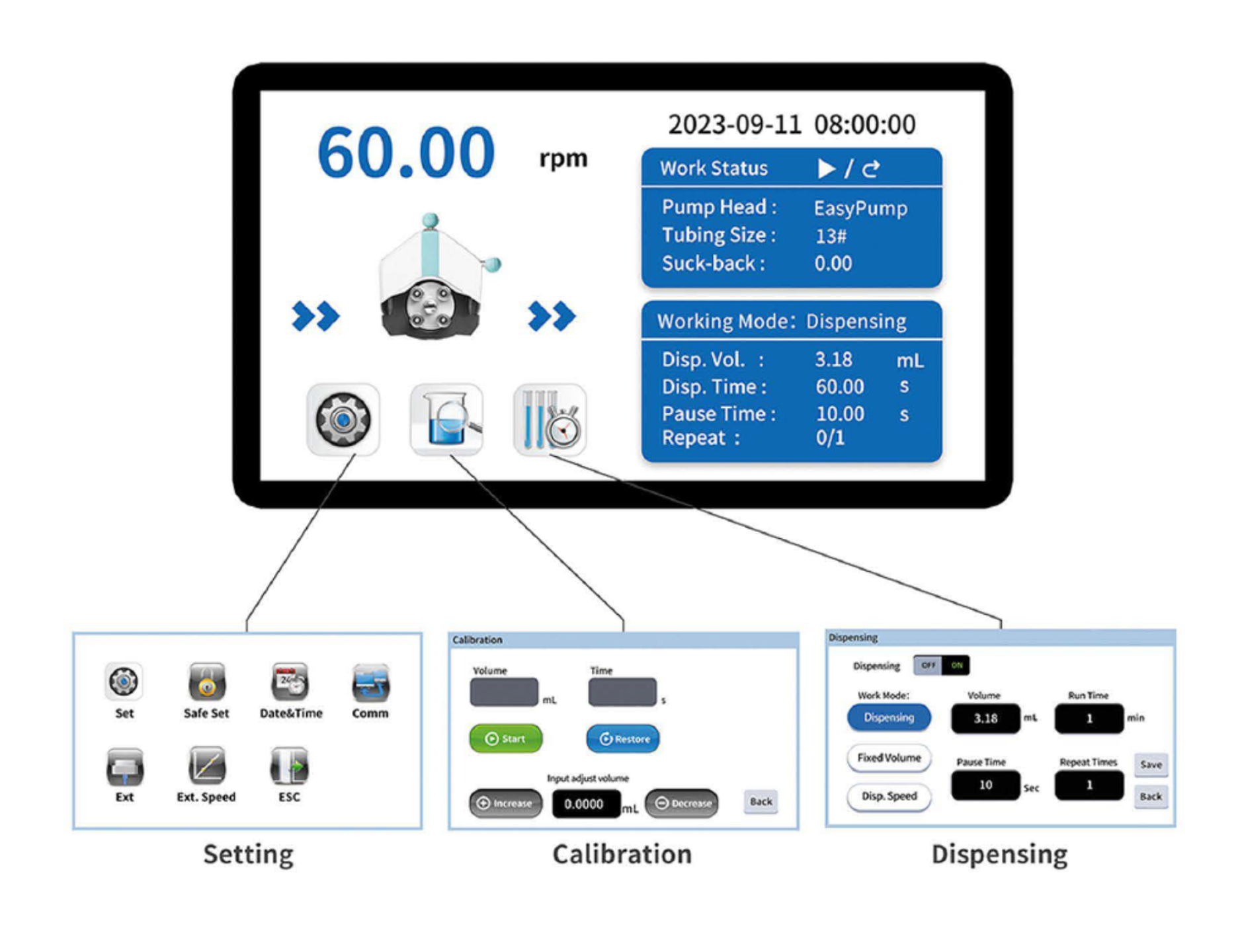

4.3" touchscreen,
Mechanical keypad and touchscreen,
Aluminum alloy housing,
Motor speed range of 0.1 to 150 rpm,
Up to 12 channels with the AMC series pump heads,
Flow rate ranges from 0.2 µL/min to 65 mL/min,
Suitable for 0.8 - 1 mm wall thickness 3-stop tubing, ID: 0.13 - 3.17 mm,
RS485 interface, Modbus protocol,
CE & SGS certifications.
Pump head options
AMC (10 rollers): from 1 to 12 channels, with 1 meter of 2*1 (2 mm ID, 4 mm OD) per channel
AMC (6 rollers): from 1 to 12 channels, with 1 meter of 2*1 (2 mm ID, 4 mm OD) per channel
More information about these pump heads is in the "Specifications" tab!
Tubing & Flow range
Tubing ID x WT (mm)
AMC 10 rollers Flow rate (mL/min) (0.1 - 150 rpm)
AMC 6 rollers Flow rate (mL/min) (0.1 - 150 rpm)
1 x 1
0.0050 - 7.55
0.0062 - 9.36
2 x 1
0.0183 - 27.52
0.022 - 33.06
2.4 x 0.8
0.0254 - 38.13
0.0319 - 47.81
3 x 1
0.0323 - 48.38
0.0434 - 65.17
0.13 x 0.86
0.0002 - 0.29
0.0002 - 0.31
0.19 x 0.86
0.0003 - 0.44
0.0003 - 0.46
0.25 x 0.86
0.0005 - 0.76
0.0005 - 0.80
0.51 x 0.86
0.0013 - 2.00
0.0014 - 2.05
0.89 x 0.86
0.0030 - 4.47
0.0031 - 4.65
1.14 x 0.86
0.0061 - 9.16
0.0065 - 9.74
1.42 x 0.86
0.0125 - 18.75
0.0142 - 21.28
2.06 x 0.86
0.0197 - 29.60
0.0234 - 35.17
2.79 x 0.86
0.0286 - 42.86
0.0372 - 55.77
Content
1x HPM100 low flow peristaltic pump for incubator with AMC pump head
1x Power supply
1x 1m of 2*1 (2 mm ID, 4 mm OD) 3-stop peristaltic tubing per channel
Specifications
Performance specifications
Flow rate range
0.2 µL/min - 65 mL/min
Flow rate resolution
0.01 μL
Speed range
0.1 - 150 rpm
Speed resolution
0.01 rpm
Dispensing time range
0.1 s - 9999 h
Dispensing volume range
0.1 mL - 9999 L
Pause time range
0.5 s - 9999 h
Repeats
1 - 9999 times, 0 means unlimited times
Back suction angle
0-360°
Working modes
Transfering mode: continuous operation at set flow rate and speed Dispensing mode: fixed volume, dispensing, speed dispensing
External control signal
0-5 V, 0-10 V, 4-20 mA in option
Start/stop, change direction signal
Passive switch signals such as foot pedal switch Active switch signal: 5-24V (optional)
