Longer

YZII15 Peristaltic Pump Head

Product SKU:: LG-YZII15

Support by a team of engineers & PhDs

Support by a team of engineers & PhDs

Support by a team of engineers & PhDs

£237.40

Current Stock: 1

Quantity:

Available immediately

Ask an expert

Adding to cart… The item has been added

Complete Your Setup

Use the checkboxes to select the products you need.

Longer

YZII15 Peristaltic Pump Head

£237.40

Decrease Quantity of undefined

Increase Quantity of undefined

General
Content
Specifications
Documentation

General

Whereas standard ChipShop connectors only accept soft-walled tubing, this set of connectors allows connecting any 1/16" OD rigid tubing to a ChipShop chip.

Suitable for rigid tubing (PTFE, PEEK, etc.) with an OD of 1/16" (1.6 mm). Manufactured in blue TPE, max. pressure of 3.2 bar with a 1/16" OD PEEK tubing.

Plugs to block unused ports are also available in our shop.

YZII15 pump head from Longer is designed to quickly load and change your tubing. Based on an automatic tubing retention mechanism, this pump head allows using a wide range of tubing dimensions and formulations without stoppers.

Free silicone tubing included.

General

The YZII15 is a compact pump head with a quick tubing loading mechanism. Manufactured from high-quality materials, it is stable at high temperatures, while its automatic tubing retention system makes it easy to use any type of peristaltic tubing without the need for stoppers.

Each pump head has 3 rollers, allowing it to reach up to 2200 mL/min at 600 rpm.

Silicone tubing 16# (3.1 mm ID x 6.3 mm OD) and 25# (4.8 mm ID x 8 mm OD) are included with each pump head!

Compatible tubing: 13#, 14#, 19#, 16#, 25#, 17#, 18#.

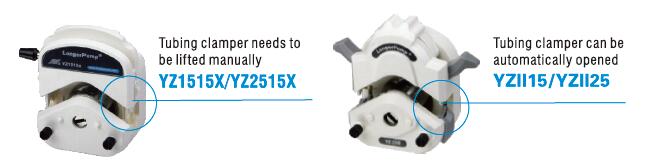

Comparison between the clamping system of YZ1515X/YZ2515X pump heads and YZII15/YZII25 pump heads

Tubing size	Flow rate (0.1 rpm)	Flow rate (100 rpm)	Flow rate (300 rpm)	Flow rate (600 rpm)
13# (0.8 mm ID)	0.006 mL/min	6.3 mL/min	19 mL/min	38 mL/min
14# (1.6 mm ID)	0.025 mL/min	25 mL/min	75 mL/min	150 mL/min
19# (2.4 mm ID)	0.042 mL/min	41.7 mL/min	125 mL/min	250 mL/min
16# (3.2 mm ID)	0.077 mL/min	76.7 mL/min	230 mL/min	460 mL/min
25# (4.8 mm ID)	0.16 mL/min	160 mL/min	480 mL/min	960 mL/min
17# (6.4 mm ID)	0.26 mL/min	266.7 mL/min	800 mL/min	1600 mL/min
18# (7.9 mm ID)	0.36 mL/min	366.7 mL/min	1100 mL/min	2200 mL/min

Content

1x YZII15 pump head

1x 2m of 16# peristaltic tubing

1x 2m of 25# peristaltic tubing

Specifications

Technical specifications
Number of rollers	3
Max. flow rate (mL/min)	2200
Max. speed (rpm)	600
Rollers material	Stainless steel
Housing material	PESU
Weight	0.35 kg
Tubing compatibility
Tubing type	Flexible tubing without stoppers
Wall thickness	1.6 mm
Tubing size	13#, 14#, 19#, 16#, 25#, 17#, 18#
Pump drives compatibility
Pump drive	Number of pump heads on one drive
BT100-1L	up to 4
BT100-3J	1
G100-1J/G100-2J/G100-1L	1
L100-1E	1
L100-1F	1
L100-1S	1

If you wish to mount more than 2 pump heads on the same pump, please contact us so we can add the compatible screws and bracket to your order.

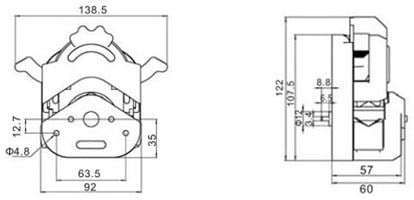

YZII15 pump head dimensions
