These Rhombic Chamber Reaction Chips by Microfluidic ChipShop, made in PC (polycarbonate), offer various chamber volumes for diverse applications and feature mini Luer connections for leak-free inlet and outlet tubing junctions.
General
ChipShop chips are convenient, cost-effective, and reliable for all your experiments:
- Mini Luer connection molded with the chip: leak-free
- Highly resistant and optically clear material: polycarbonate (PC)
- Reaction chamber of 2.5 µL, 10 µL, 20 µL or 50 µL
- Standard microscope glass slide size (75.5 mm x 25.5 mm x 1.5 mm)
- Lid thickness of 175 µm
These chamber chips are a perfect tool to facilitate reactions in chemistry or biochemistry. They are particularly suited to be used for heat-cycle applications, such as PCR experiments, during which small air bubbles can form within the chambers of a microfluidic chip. For a reliable microscopic observation, these microfluidic chips feature the microfluidic ChipShop‘s unique bubble-trapping-rim-design, specifically developed to keep the detection area of each chamber air bubble-free.
This chip can be hydrophilized on demand. Please contact us if interested!
Content
1x Reaction chamber chip with mini Luer ports
Specifications
| Reference |
CS-10001009 |
CS-10000525 |
CS-10000555 |
CS-10000578 |
| ChipShop reference |
Fluidic 843 |
Fluidic 585 |
Fluidic 584 |
Fluidic 557 |
| Chamber volume (µL) |
2.5 |
10 |
20 |
50 |
| Chamber depth (µm) |
500 |
700 |
| Material |
Polycarbonate (PC) |

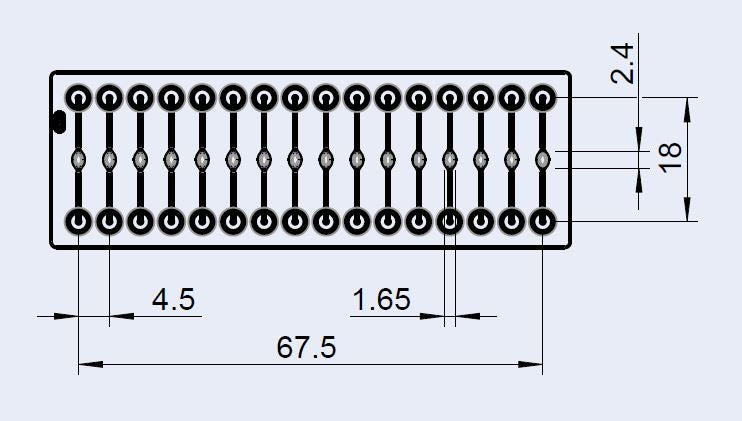

2.5 µL chambers
 |

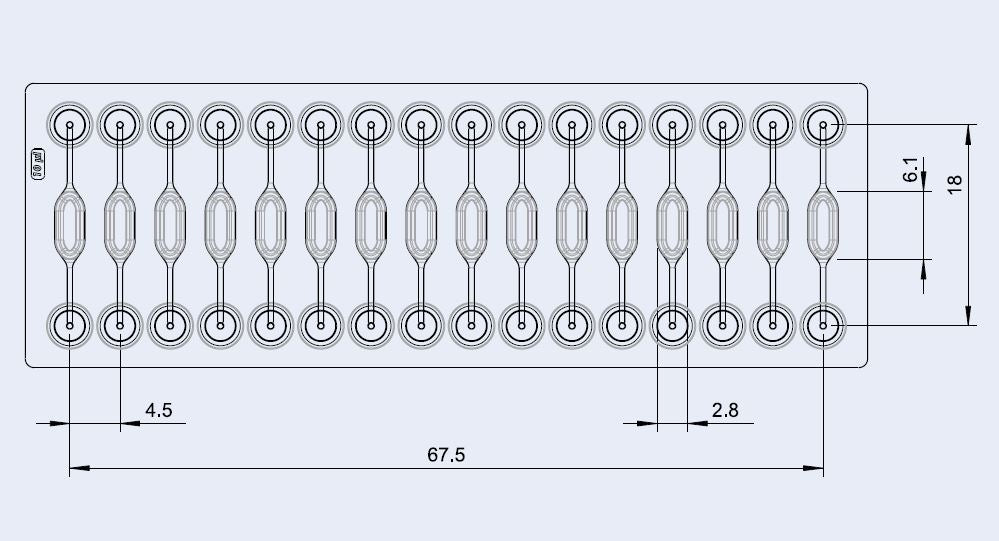

10 µL chambers
 |

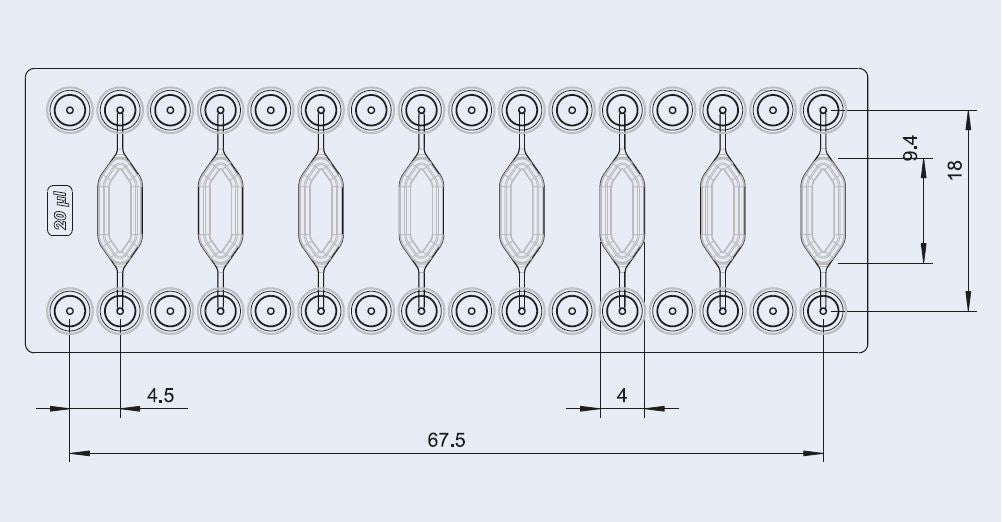

20 µL chambers
 |

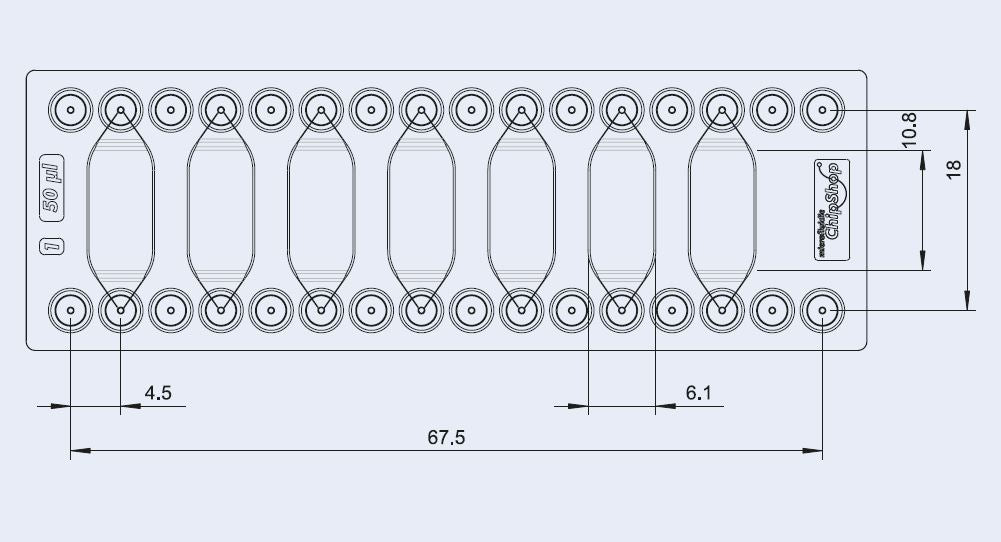

50 µL chambers
 |
Documentation
Click to read more information about ChipShop chips material properties.
? Reaction chamber chip Fluidic 557 datasheet
? Reaction chamber chip Fluidic 584 datasheet
? Reaction chamber chip Fluidic 843 datasheet
