The Plasma Generation Chip - Two rhombic membranes Fluidic 1113 is a compact device designed for efficient plasma generation from small blood samples. Each chip features two rhombic membranes, each capable of producing 20-35 µl plasma per membrane. The device makes it easy to select plasma volume with precision. The dual-channel configuration enables parallel processing or increased throughput, making it ideal for research labs and diagnostics.
General

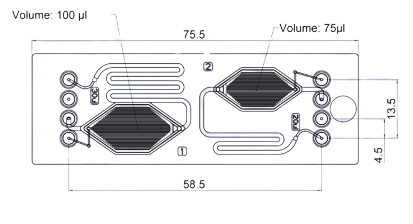

The plasma generation chip Fluidic 1113 has Mini Luer interfaces and features two rhombic membranes and a venting channel. Each rhombic membrane can generate up to 20-35 µl plasma. Check out the sample preparation starter kit for plasma generation to get a complete set-up enabling you to start with your experiments right away!
Features & Benefits
- Dual Membrane Design: Two rhombic membranes allow for efficient parallel plasma generation from a single chip. This increases overall plasma yield and streamlines sample processing.
- Precise Volume Selection: Each membrane can generate a controlled plasma volume (20-35 µl), suitable for many downstream applications and compatible with common lab protocols.
- Mini Luer Interface: Standard interfaces ensure easy integration with lab systems and accessories. Connections are secure and quick to set up.
- Material Flexibility: Chips are available in both PS and Topas materials, offering versatility for different experiment requirements.
- Surface Treatment Options: Choose between hydrophilized or untreated surfaces to match specific assay or fluid handling needs.
- Transparent Build: Visual monitoring of plasma separation is straightforward, aiding quality control and troubleshooting.
This chip is for labs that need easy plasma generation from small blood samples. It is well suited for research, diagnostics, and quality control environments that want standardized, reproducible sample handling.
With its dual-membrane configuration, users can obtain enough plasma from minimal sample input in one go. The mini Luer interface allows for simple and secure connections to other fluidic devices. The availability of both hydrophilized and untreated surfaces broadens the chip’s usability across many types of assays and protocols.
Applications
The Plasma Generation Chip - Two rhombic membranes Fluidic 1113 is ideal for small-scale plasma separation in biomedical research, clinical diagnostics, and life science workflows. Its compact and flexible design supports:
- Laboratory sample preparation
- Plasma separation for diagnostics
- Microfluidic assay development
Content
1x Plasma Generation Chip - Two rhombic membranes Fluidic 1113
Specifications
| SKU | CS-10001527 | CS-10001583 | CS-10001693 | CS-10001525 |
| Design element | Membrane | Membrane | Membrane | Membrane |
| Material | PS | Topas | PS | Topas |
| Material chip body | mcs-PS 17 | Mcs-COC 13 | mcs-PS 17 | Mcs-COC 13 |
| Material chip lid | mcs-foil 075 (PS; 125 µm) | mcs-foil 011 (Topas; 140 µm; Tg 78°C) | mcs-foil 075 (PS; 125 µm) | mcs-foil 011 (Topas; 140 µm; Tg 78°C) |
| Color | Transparent | Transparent | Transparent | Transparent |
| Interface type | Mini Luer interface | Mini Luer interface | Mini Luer interface | Mini Luer interface |
| Surface treatment | Not treated | Hydrophilized | Hydrophilized | Not treated |
| Membrane | mcs-membrane 052 (2 µm pore size) | mcs-membrane 052 (2 µm pore size) | mcs-membrane 052 (2 µm pore size) | mcs-membrane 052 (2 µm pore size) |
Documentation
Click to read more information about ChipShop chips material properties.
Check this video to see how plasma generation chips can be used.
? Plasma generation chip with 2 rhombic membranes Fluidic 1113 datasheet
