The Diffusion Mixer - Mixing up to 4 fluids by diffusion Fluidic 186 is a micromixer designed to effectively combine up to four fluids using diffusion. It offers control over the mixing process by letting you choose different flow rates, which changes the volume and selection of each channel. This device provides precise control for applications that require multi-channel fluidic mixing.
General

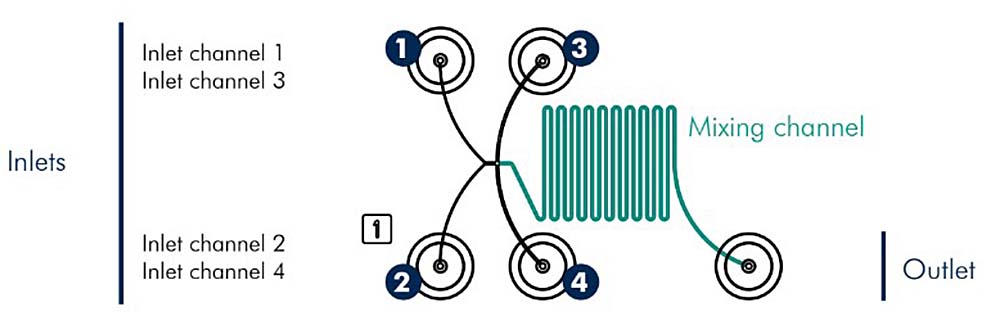

The diffusion mixer Fluidic 186 enables effective micromixing of up to four fluids through diffusion. It features a particular long mixing channel with 217 mm, i.e. the interfacial areas between the fluids is increased to facilitate diffusion. Not only the interfacial area but also contact time will influence the mixing results. By varying the flow rates of fluids to be mixed, the contact time can be controlled in order to achieve effective mixing. With its flow focusing design, the chip can also be used to effectively produce nanoparticles of different kinds.
Features & Benefits
- Four-Fluid Mixing: Mixes up to four different fluids at the same time for versatile experiments and applications.
- Long Mixing Channel: The mixing channel length of 217 mm increases interfacial area for improved mixing efficiency.
- Adjustable Flow Rates: Allows users to control contact time and the degree of mixing by changing the flow rates of the included fluids.
- Flow Focusing Design: Designed for efficient micromixing and precise nanoparticle production.
- Luer Interface: Standard connector interface for easy integration into lab equipment.
- Compatible Materials: Available in PC or Zeonor for chemical compatibility and transparency.
The Diffusion Mixer Fluidic 186 is a practical solution for those who need to mix up to four fluids with high efficiency by diffusion. The special long channel increases the contact surface, making it possible to achieve thorough mixing of the fluids. By adjusting flow rates, users control the time fluids interact, which is key to the quality of mixing.
Its flow focusing chip design also supports controlled nanoparticle synthesis. The mixer is transparent for easy observation and connects easily with standard lab equipment via Luer interfaces. Offered in two material variants, PC and Zeonor, it adapts to different chemical and physical requirements in the lab.
Applications
This product is ideal for precise liquid mixing processes in laboratory and industrial settings. It is suitable for producing nanoparticles, chemical synthesis, and studies requiring controlled multi-fluid mixing.
- Nanoparticle synthesis
- Chemical reaction optimization
- Experimental test set-ups involving several reactants
Content
1x Diffusion Mixer - Mixing up to 4 fluids by diffusion Fluidic 186
Specifications
| SKU |
CS-10000018 |
CS-10000075 |
| Design element |
Channel |
Channel |
| Material |
PC |
Zeonor |
| Material chip body |
mcs-PC 13 |
mcs-COP 02 |
| Material chip lid |
mcs-foil 042 (PC; 175 µm; Tg 145°C) |
mcs-foil 005 (Zeonor; 188 µm; Tg 136°C) |
| Color |
Transparent |
Transparent |
| Interface type |
Luer interface |
Luer interface |
| Surface treatment |
Not treated |
Not treated |
| Membrane |
no membrane |
no membrane |
Documentation
Click to read more information about ChipShop chips material properties.
Handling instructions for passive diffusion mixing chip - Fluidic 186
Passive diffusion mixing chip Fluidic 186 datasheet
