The LabK peristaltic pump is the smallest option on the market, offering convenient space-saving design. This simple and cost-effective pump includes a 0.96" OLED display. Made from laboratory-grade ABS, it is easy to operate and can achieve flow rates as low as a few µL/min.
Comes with the MicroPump pump head with 1 channel, available in different colors.
General

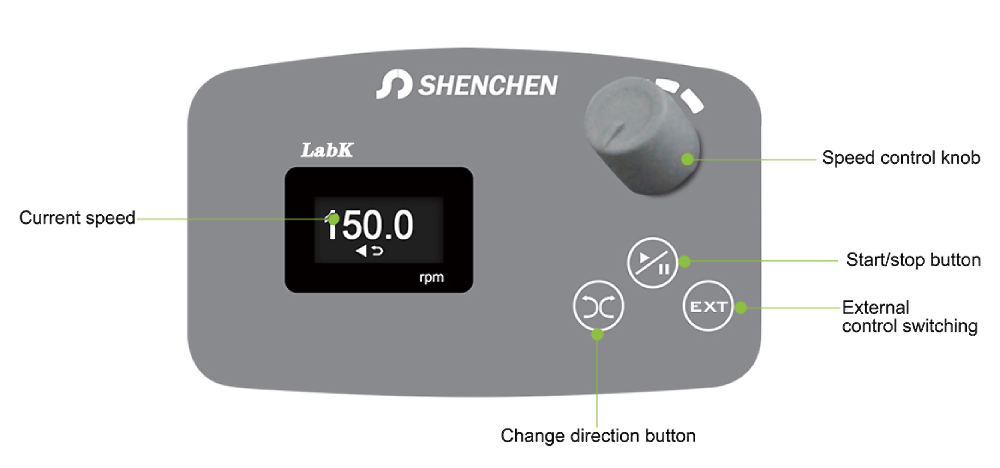

The LabK peristaltic pump is a basic single-channel microfluidic flow control system for low budget requirements. It displays the pump motor speed in rpm on its 0.96" OLED and can be controlled with its digital knob or externally. Different features are available for basic commands: start, stop and change direction.
Features & Benefits
- Mini pump to save valuable space on your benchtop,
- 0.96" OLED displays motor speed,
- Flow rate ranges from 4 µL/min to 64 mL/min,
- Digital knob control,
- ABS engineering plastic shell and UV spray coating: anti-corrosion and anti-static,
- Motor speed range of 0.1 to 150 rpm,
- 1 channel with resistant PharMed tubing and 3 rollers MicroPump pump heads,
- Replacement inner tube available on demand,
- Different pump head colors available,
- Default inner tube of size 4*1,
- Suitable for 1 mm wall thickness tubing, ID 1, 2, 3 and 4 mm,
- Memory back up if power is lost,
- USB connector, RS485 interface, Modbus protocol,
- CE & SGS certifications.
Tubing & Flow range
| Tubing ID x WT (mm) |
Flow rate (mL/min)
|
| 1 x 1 |
0.004 - 6.38 |
| 2 x 1 |
0.014 - 21.45 |
| 3 x 1 |
0.031 - 47.26 |
| 4 x 1 |
0.042 - 63.96 |
Content
1x LabK peristaltic pump with MicroPump pump head
1x Power supply
No additional tubing is included with the pump. Replacement inner tube available on demand, feel free to contact us!
Specifications
| Performance specifications |
| Flow rate range |
4 µL/min - 63.96 mL/min |
| Speed range |
0.1 - 150 rpm |
| Speed resolution |
0.1 rpm |
| MicroPump pump head nb of rollers |
3 |
| MicroPump pump head tubing |
PharMed |
| External control |
Start/stop direction control (switch signal), 0-5 V, 4-20mA (standard), 0-10V (optional) |
| Communication interface |
RS485 supports ModBus protocol (RTU mode) |
| Electrical specifications |
| Display |
0.96" OLED |
| Control method |
Digital knob and mechanical keypad |
| Keypad lifetime |
300,000 times |
| Power supply |
Output: (12V/1A)
Input: AC100V-240V, 50Hz/60Hz |
| Physical specifications |

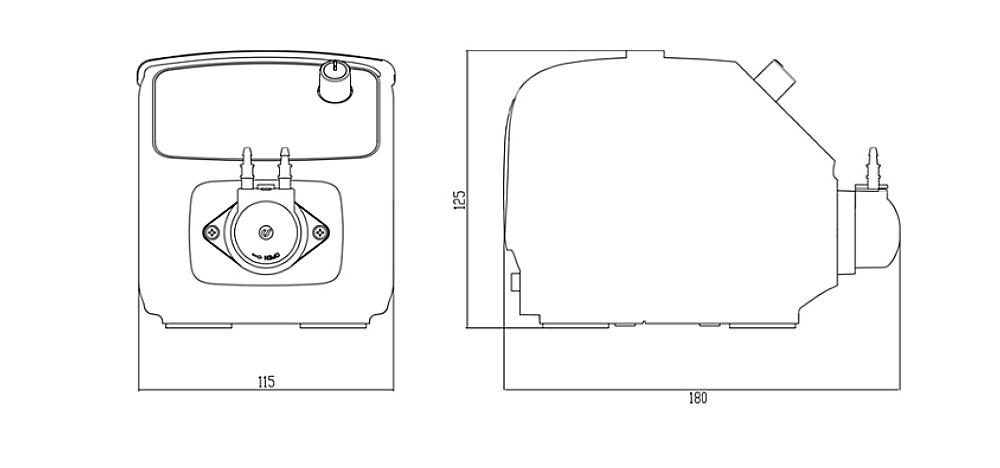

| Drive dimensions (LxWxH) |
180 x 115 x 125 mm |
| Drive weight |
0.8 kg |
| Power consumption |
< 12 W |
| Working temperature |
0-40 °C |
| Relative humidity |
< 80%, no condensation |
| IP rate |
IP31 |
| Drive material |
ABS engineering plastic shell and UV spray coating |
| Certifications |
CE, SGS |
| Warranty |
3 years |
Documentation
? LabK standard peristaltic pump brochure
? LabK standard MODBUS protocol
Appliable to all Innofluid Lab peristaltic pump series: How to Control a LabV Pump Using the MODBUS Protocol ?.
