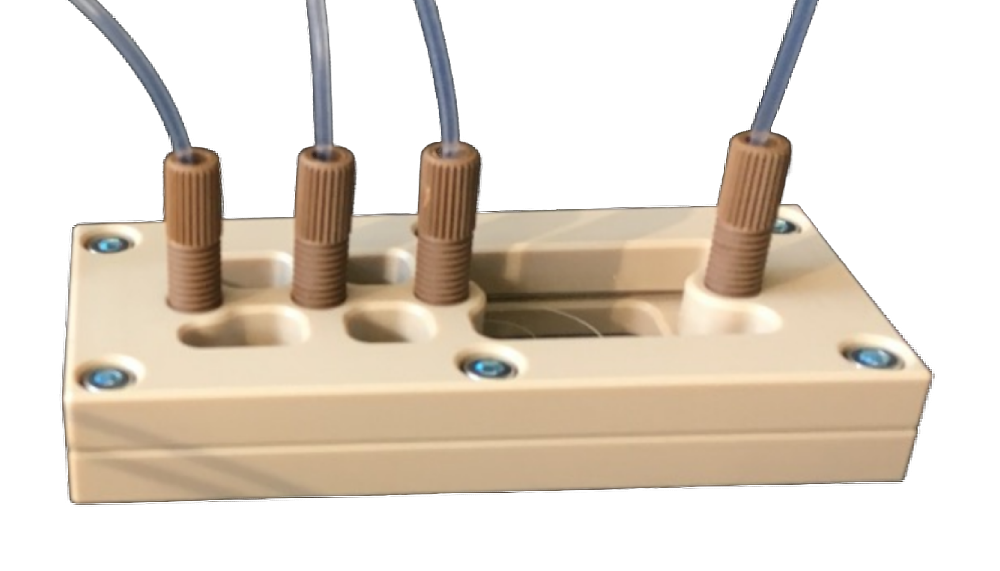

This LTF chip holder allows the easy integration of compatible glass chips in your microfluidic system.
Available in PEEK or aluminum.
General
Easily interface your microfluidic glass chip with this holder. This product is compatible with T-25, T-26, T-27, T-28, and T-29 chips without a 1/4-28 connection, and is manufactured in PEEK or aluminum.
Once the chip is secured in the holder, easily interface it with 1/4-28 connectors (not included).
Content
1x Chip holder
Specifications
| Holder material |
PEEK or aluminum |
| Holder connection ports |
Female 1/4-28 |

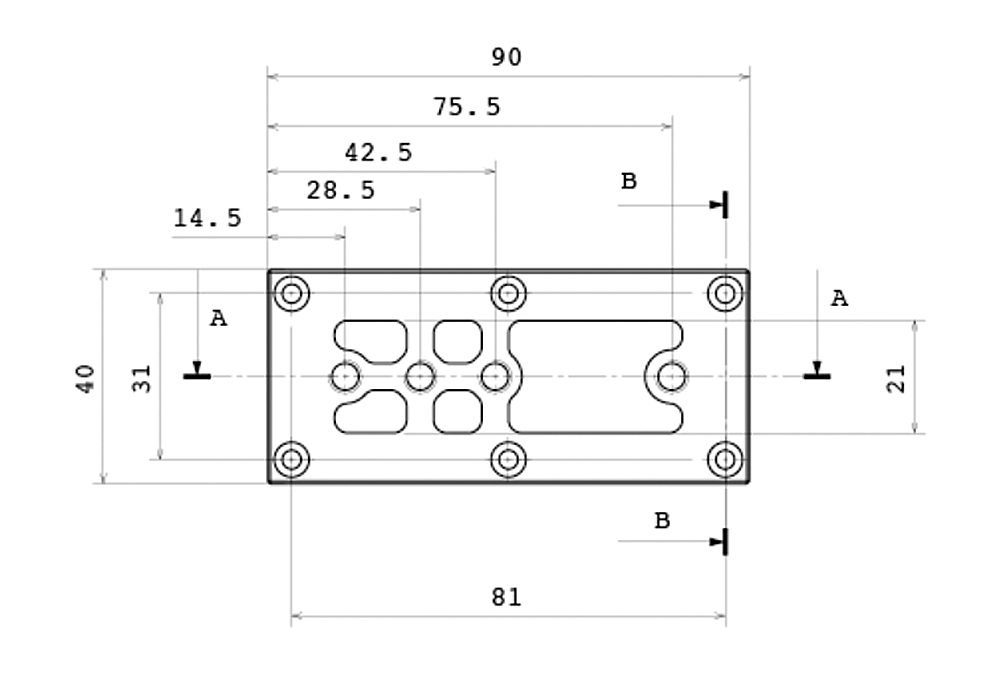

| Dimensions (l x w) |
90 x 40 mm |
| Chip connection ports |
Through hole |
Max recommended tightening torque
|
0.4 Nm |
The old reference of LTF-V001.00-4547 is LTF-060.0015.
The old reference of LTF-V001.00-4546 is LTF-060.0014.
