ELVEFLOW

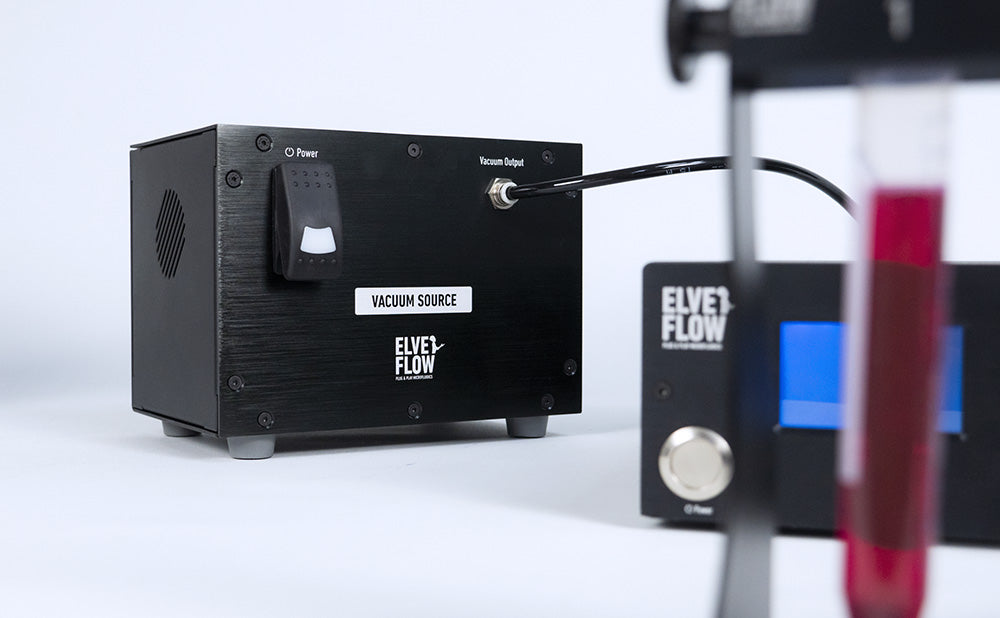

Elveflow Vacuum Source

An oil-free and compact vacuum source for various laboratory applications. It is designed to be used with the Elveflow OB1 pressure controller.

£1,099.90

Product SKU:: LVF-PVS-V-01

Quantity:

Available immediately

Current Stock:

Adding to cart… The item has been added

Ask an expert Talk to our engineers & PhDs

Sold Out

Worldwide Express Shipping

Delivery in 1-3 days for products in stock

Simplified Purchasing

Easily request a quote and track your orders.

Outstanding Support

Support by a team of Engineers and PhDs (Inhouse)

General
Content
Specifications
Documentation

General

Whereas standard ChipShop connectors only accept soft-walled tubing, this set of connectors allows connecting any 1/16" OD rigid tubing to a ChipShop chip.

Suitable for rigid tubing (PTFE, PEEK, etc.) with an OD of 1/16" (1.6 mm). Manufactured in blue TPE, max. pressure of 3.2 bar with a 1/16" OD PEEK tubing.

Plugs to block unused ports are also available in our shop.

OB1 Mk4 pressure controller with LCD screen and 4 channels front view — Choose Options

ELVEFLOW

Elveflow OB1 Mk4 Microfluidic Flow Controller

This is our best pressure/vacuum controller: the Elveflow OB1 MK4. Embedding the state-of-the-art technology for flow control from -900 mbar to 8 bar, this controller is 20 times more precise and 10...

£2,820.60 - £10,953.30

Microfluidic Reservoir for 50 mL Falcon Tube - M (2/4 port) - Darwin Microfluidics — Choose Options

ELVEFLOW

Microfluidic Reservoir for 50 mL Falcon Tube - M (2/4 ports)

This versatile autoclavable microfluidic adapter allows the use of (included) 50 mL BD Falcon tubes in microfluidic systems using standard 1/4-28 fittings interfaced with any pressure source to...

£134.50 - £153.00

ELVEFLOW

Microfluidic Reservoir for 1.5 mL Eppendorf® - XS

This versatile autoclavable microfluidic adapter allows the use of (included) XS Eppendorf tubes (1.5 mL) in microfluidic systems using standard 1/4-28 fittings interfaced with any pressure source...

£134.50

Pneumatic Polyurethane (PU) Flexible Tubing Connection kit - Darwin Microfluidics — Choose Options

ELVEFLOW

Pneumatic Tubing Connection Kit

Customize your microfluidic pressure system with 4 mm or 6 mm pneumatic tubing and pneumatic connectors to extend and multiply your pressure distribution. General Distribute the air pressure coming...

£51.40 - £55.70

ELVEFLOW

Microfluidic Manifold 13 Ports

Merge or split up to 12 microfluidic flows using this 13-port manifold, supporting 1/4-28 microfluidic fittings. General A manifold with 13 1/4-28 ports to evenly split or merge your liquid/airflow...

£171.50

Vacuum (relative)	-850 mbar (13 psi)
Vacuum (absolute)	150 mbar
Pumping speed	-
Noise level	< 54 dB
Dimensions (l x w x h)	161 x 194 x 195 mm
Weight	1.4 kg
Pneumatic connection	6 mm push-in
Internal receiver volume	250 mL
Operating temperature	5-40 °C
Operating humidity	up to 80%
Input voltage	24 VDC
AC supply frequency	50-60 Hz
Pressure supply voltage	110-240 V
Max. current consumption	1.5 A (typical: 0.8 A)
Max. power consumption	36 W

Elveflow Vacuum Source

An oil-free and compact vacuum source for various laboratory applications. It is designed to be used with the Elveflow OB1 pressure controller.
