The AMF RVM mini cables are the dedicated power and communication cables you need to connect your RVM mini compact rotary valve to a power supply, a controller, or a computer.
Available in three versions: USB-C cable, Pico-Lock to flying leads cable, and Pico-Lock to jack adaptor.
Each reference is sold individually. The RVM mini valve, the 24 VDC power supply, and the fittings are not included.
General
The RVM mini rotary valve is powered and controlled through two connector types: a USB-C port for direct communication with a computer, and 4-pin Pico-Lock connectors for power and for serial or I2C communication. These cables give you a ready-to-use connection for each of those interfaces, so you do not have to crimp your own harness before running your first sequence.

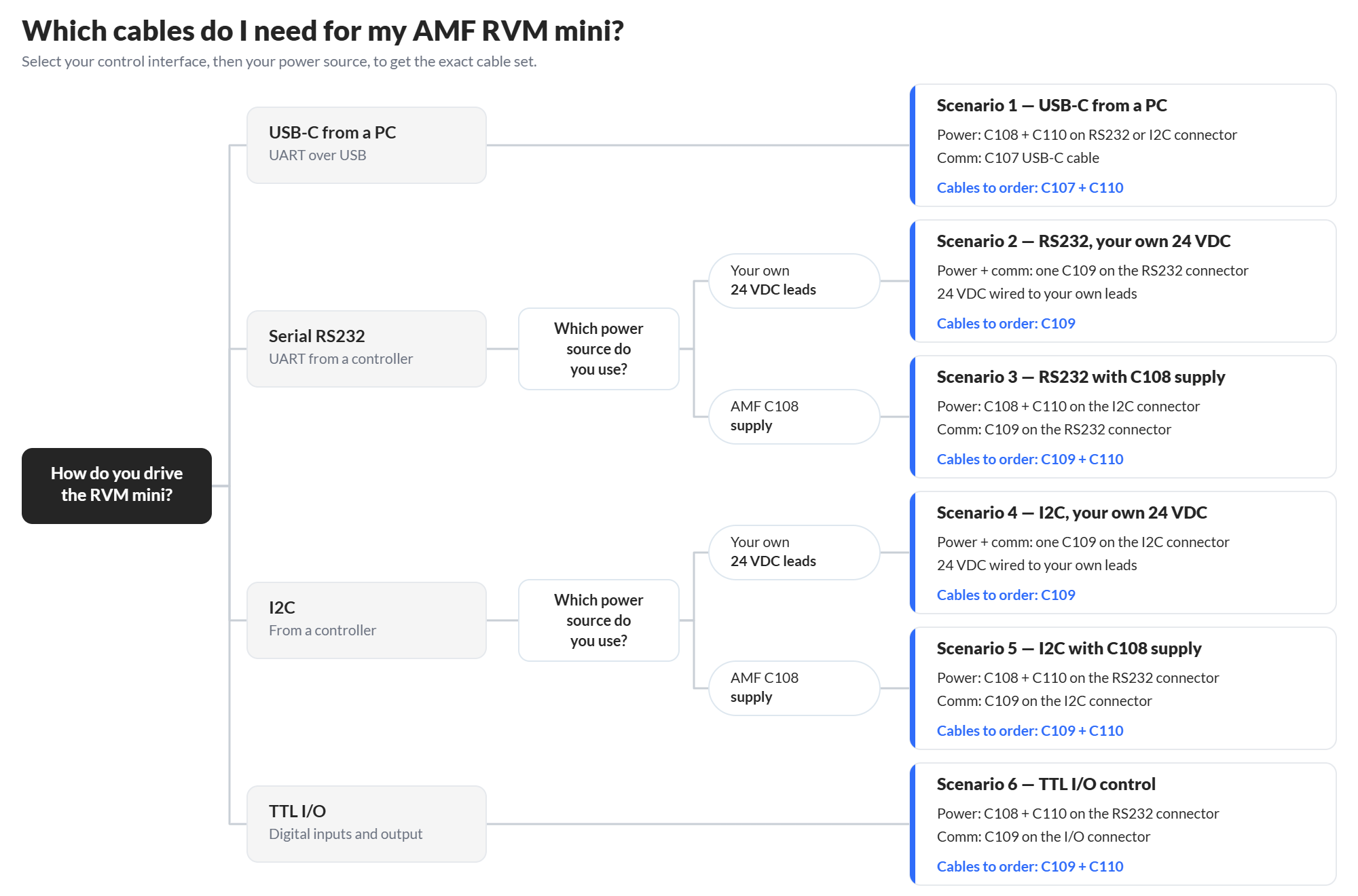

Depending on how you integrate the valve, you can power and control it through a single cable, or keep power and communication on separate lines. Six documented wiring scenarios cover the usual combinations, from a simple bench setup with a USB-C link to a fully embedded configuration driven over I2C or TTL I/O. Refer to the diagram below for more information.
Configurations
| Reference |
AF-C107 |
AF-C109 |
AF-C110 |
| Name |
USB-C cable |
Pico-Lock to flying leads |
Pico-Lock to jack adaptor |
| Function |
Communication with a computer in UART over USB-C |
Power and/or communication with your controller |
Power supply connection only |
| Connects the RVM mini to |
Computer |
Power supply and controller |
Power supply |
| Used in wiring scenarios |
1 |
2, 3, 4, 5, 6 |
1, 3, 5, 6 |
Content
1x Cable, in the selected configuration
Specifications
Main cable specifications
| Reference |
AF-C107 |
AF-C109 |
AF-C110 |
| Function |
Communication |
Power and communication |
Power |
| Supported protocols |
UART over USB |
RS232, RS485, CAN, I2C, TTL I/O |
Not applicable |
| Valve-side connector |
USB-C |
Pico-Lock, 4-pin |
Pico-Lock, 4-pin |
| Opposite-end connector |
USB-A (TO CONFIRM) |
Free leads |
DC power jack, 5.5 x 2.1 mm (0.22 x 0.08 in) |
| Cable length [mm] |
|
1000 mm (39.4 in) |
300 mm (11.8 in) |
| Shielding |
|
Shielded, twisted data pair |
|
| Conductors used |
|
1 power pair and 1 twisted data pair |
1 power pair (VCC and GND) |
| Compatibility |
AMF RVM mini rotary valves only |
Wiring scenarios
Six wiring scenarios are documented for the RVM mini, so you can select the cable combination that matches your integration:
- Scenario 1: power with C108 and C110 on the RS232 or I2C connector, communication in UART with C107.
- Scenario 2: power and communication in UART via RS232 with C109.
- Scenario 3: power with C108 and C110 on the I2C connector, communication in UART via RS232 with C109.
- Scenario 4: power and communication in I2C with C109.
- Scenario 5: power with C108 and C110 on the RS232 connector, communication in I2C with C109.
- Scenario 6: power with C108 and C110 on the RS232 connector, communication in TTL on the I/O connector with C109.
Refer to the accessories and wiring scenarios document in the Documentation tab for the complete connection diagrams of your valve.
Documentation
See this document to find out how to wire your valve, including the pin assignment of each cable and the six validated wiring scenarios.
Accessories and Wiring Scenarios
