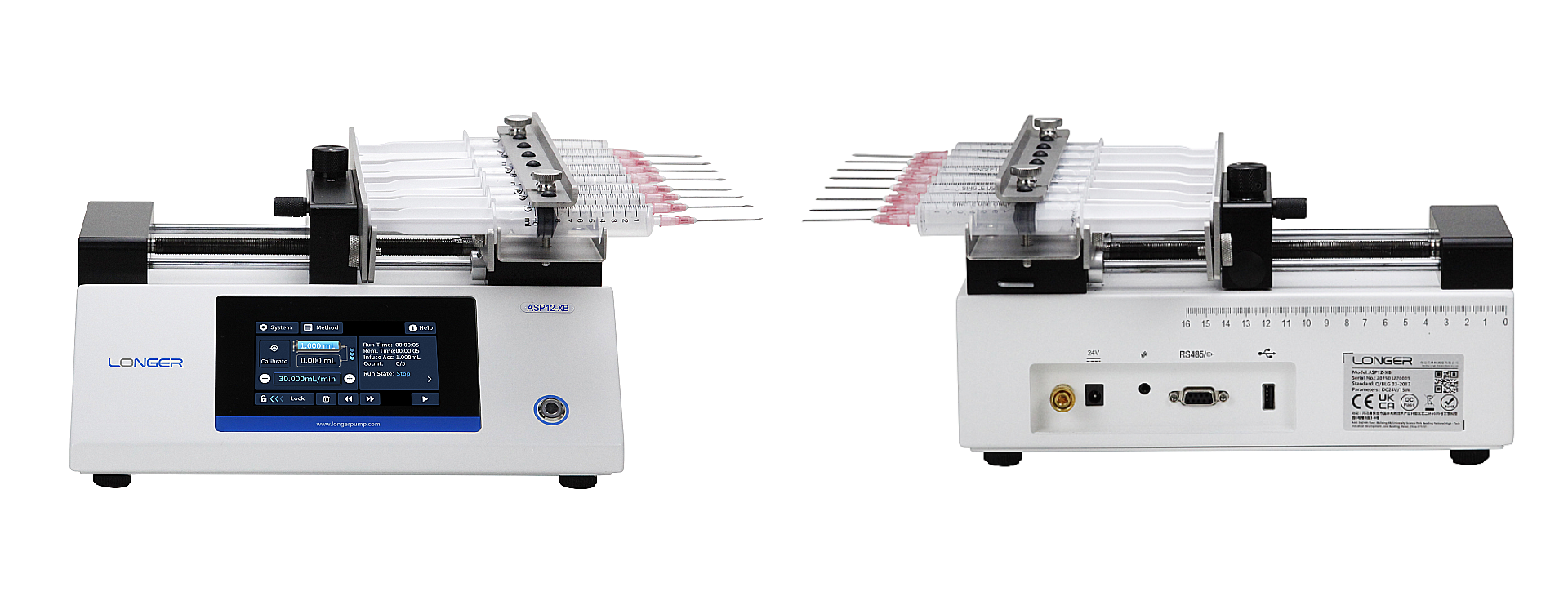

The ASP12-XB multichannel syringe pump represents Longer Pump’s newest innovation, integrating advanced pumping technology with exceptional precision. It achieves flow rates as low as 0.0033 nL/min and distinguishes itself from the ASP11 series through its wide syringe size compatibility (0.5 µL–10 mL) and advanced continuous infuse/withdraw mode.
With its high-resolution touchscreen interface, compact vertical design, and exceptional flow stability, its versatility makes it an ideal choice for a wide range of applications.
This pump can handle 4, 6, 8, or 10 syringes, ranging from 0.5 µL to 10 mL.
Flow range 0.0033 nL/min-39 mL/min, accuracy ≤ ±0.35%.
General
The ASP12-XB is an advanced multichannel digital syringe pump designed for research and laboratory applications. Its compact design enables precise, simultaneous fluid delivery across multiple channels, making it ideal for microfluidics, bioengineering, and analytical chemistry.
Its intuitive touchscreen interface, wide compatibility with various syringe sizes, and advanced control features make it a good choice for the most demanding projects.
- Multichannel syringe pump: can hold 4, 6, 8, or 10 syringes
- Wide flow range: flow rates from as low as 0.0033 nL/min up to 39 mL/min
- Working modes: infusion, withdrawal, dispensing, continuous infusion/withdrawal
- High-resolution touchscreen: 4.3-inch color LCD touchscreen for intuitive control and real-time parameter adjustments
- Compact vertical design: reduce the footprint by 50%, to optimize your lab bench space
- Adjustable linear force: provides up to 320N of linear force, adjustable between 20% and 100%
- External control options: supports multiple control methods, including touchscreen, external signals, RS485 communication (Modbus RTU), footswitch, and LabVIEW integration
- Daisy chain up to 32 pumps and control them from a computer
- Enhanced accuracy: features a stroke control accuracy of ≤±0.35% and stroke resolution of 0.0088 μm/microstep, ensuring precise fluid delivery at the lowest flow rates
- User-friendly interface: offers built-in syringe brand selections, storage for up to 20 user-defined syringe parameters, and real-time flow rate adjustments during operation
- Safety and notifications: audible alerts, indicator lights (green for running, blue for standby, red for warnings), and text prompts for intuitive status notifications
- Firmware upgradability: supports on-site firmware upgrades via USB, ensuring the device remains up-to-date with the latest features.
| Syringe volume |
Syringe ID (mm) |
Flow range (for each channel) |
| 0.5 μL |
0.10 mm |
0.0033 nL/min – 0.0014 mL/min |
| 5 μL |
0.35 mm |
0.040 nL/min – 0.0173 mL/min |
| 10 μL |
0.50 mm |
0.0816 nL/min – 0.0353 mL/min |
| 25 μL |
0.80 mm |
0.2090 nL/min – 0.0904 mL/min |
| 50 μL |
1.10 mm |
0.3951 nL/min – 0.1710 mL/min |
| 100 μL |
1.60 mm |
0.8360 nL/min – 0.3617 mL/min |
| 250 μL |
2.30 mm |
1.7275 nL/min – 0.7475 mL/min |
| 500 μL |
3.25 mm |
3.4493 nL/min – 1.4925 mL/min |
| 1 mL |
4.72 mm |
7.2752 nL/min – 3.1479 mL/min |
| 5 mL |
13.10 mm |
56.041 nL/min – 24.248 mL/min |
| 10 mL |
16.60 mm |
89.987 nL/min – 38.937 mL/min |
These flow rates are indicative and given for standard syringe sizes.
Content
1x ASP12-XB syringe pump
1x Power supply
1x User manual
Specifications
| Number of syringes |
4 |
6 |
8 |
10 |
| Compatible syringe sizes |
0.5 µL – 10 mL |
| Flow range |
0.0033 nL/min – 39 mL/min |
| Display |
4.3-inch color LCD |
| Operating modes |
Single infuse, multiple infuse, single withdraw, continuous infuse/withdraw, continuous withdraw/infuse |
| Control methods |
Touchscreen, external control, communication control, footswitch control, LabVIEW control |
| Maximum stroke length |
140 mm |
| Stroke resolution |
0.0326 µm/microstep |
| Linear speed range |
0.416 µm/min – 180 mm/min |
| Stroke control accuracy |
≤ ±0.35% (when travel ≥ 30% of stroke) |
| Maximum linear force |
320 N (adjustable between 20% and 100%) |
| External control functions |
Two control inputs (start/stop, emergency stop); two status outputs configurable as start/stop, direction, or fault alarm |
| Communication / interface |
RS485, Modbus RTU, Longer OEM protocol |
| Dimensions (L × W × H) |
280 mm × 223 mm × 160 mm |
280 mm × 263 mm × 160 mm |
280 mm × 270 mm × 160 mm |
280 mm × 315 mm × 160 mm |
| Power supply |
Pump: DC 24V / 15W; Adapter: AC 90–260V |
| Operating temperature |
0°C – 40°C |
| Relative humidity |
< 80% |
| Weight |
4.65 kg |
4.85 kg |
4.95 kg |
5.15 kg |
