1/4-28 Flangeless Fitting (10-pack) - PP

Darwin Microfluidics

1/4-28 Flangeless Fitting (10-pack) - PP

Product SKU:

Support by a team of engineers & PhDs

Support by a team of engineers & PhDs

Support by a team of engineers & PhDs

22.80€

Current Stock:

Quantity:

Ask an expert

Adding to cart… The item has been added

Complete Your Setup

Use the checkboxes to select the products you need.

Choose Options

Recommended Tube OD (Required)

Darwin Microfluidics

1/4-28 Flangeless Fitting (10-pack) - PP

22.80€

Decrease Quantity of undefined

Increase Quantity of undefined

General
Content
Specifications
Documentation

General

Whereas standard ChipShop connectors only accept soft-walled tubing, this set of connectors allows connecting any 1/16" OD rigid tubing to a ChipShop chip.

Suitable for rigid tubing (PTFE, PEEK, etc.) with an OD of 1/16" (1.6 mm). Manufactured in blue TPE, max. pressure of 3.2 bar with a 1/16" OD PEEK tubing.

Plugs to block unused ports are also available in our shop.

Recommended Tube OD

2 options for this product

1/4-28 Flangeless Fitting (10-pack) - PP

SKU: DM-ST-002

1/16" (1.6 mm)

22.80€

Buy in bulk and save

Available immediately

1/4-28 Flangeless Fitting (10-pack) - PP

SKU: DM-ST-001

1/8" (3.2 mm)

22.80€

Buy in bulk and save

Available immediately

This set of 1/4-28 flangeless fittings is designed for secure connections with 1/16" or 1/8" OD rigid tubing in microfluidic systems. Made from polypropylene (PP), each fitting includes a nut and ferrule, offering good chemical resistance and reliable sealing. Sold in packs of 10.

General

A set of PP flangeless fittings to connect 1/16" or 1/8" OD rigid tubing to 1/4-28 UNF threaded ports in your microfluidic setup. These fittings eliminate the need to flange tubing, simplifying installation while providing a removable and reusable solution. The polypropylene construction ensures compatibility with a wide range of chemicals, making them suitable for routine lab use and disposable systems.

Features

Chemical Resistance: Made from polypropylene for compatibility with common solvents and reagents.
Leak-Free Seal: Nut and ferrule combination ensures secure, low-pressure connections.
Ease of Use: Flangeless design simplifies assembly without specialized tools.

Content

10x Flangeless Fitting 1/4-28 PP (nut + ferrule) for 1/16" or 1/8" OD rigid tubing

Specifications

SKU	DM-ST-002	DM-ST-001
Wetted Material	PP	PP
Material	PP	PP
Recommended tubing OD (mm)	1/16" (1.6mm)	1/8" (3.2mm)
Recommended Tubing Material	Rigid tubings (PTFE, PEEK, etc.)	Rigid tubings (PTFE, PEEK, etc.)

DM-ST-002
technical drawing of Pre-torque flangeless fittings – two piece set for 1/4-28 (pack of 10) - PP ST-002

DM-ST-001

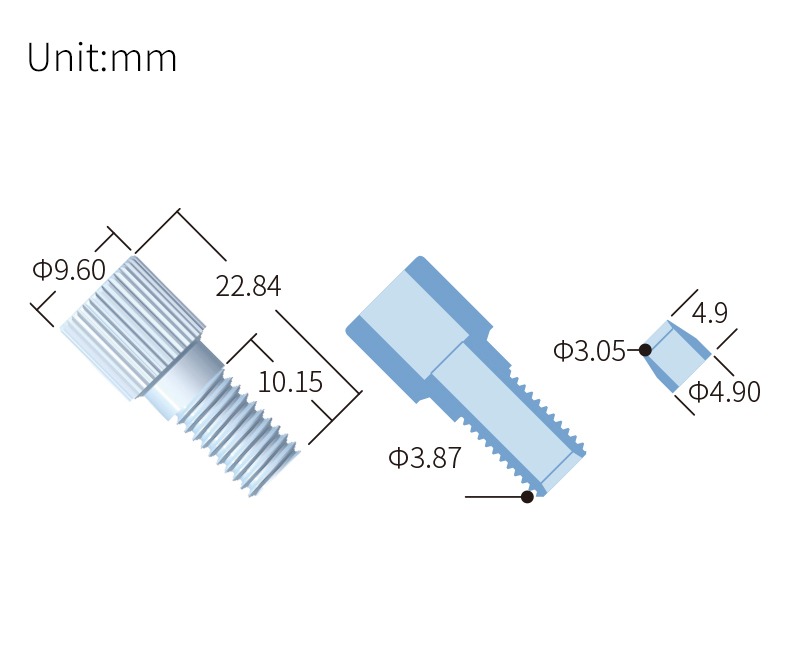

technical drawing of Pre-torque flangeless fittings – two piece set for 1/4-28 (pack of 10) - PP ST-001

Documentation

Check the chemical compatibilities for this product here: PP - Chemical Resistance Chart
