The Barbed to 1/4-28 Female Adapter is a crucial component for microfluidic systems. It serves as a connector between flexible tubing and a female 1/4-28 threaded port. Crafted entirely from PTFE, this adapter offers exceptional chemical resistance, making it compatible with a wide range of media, from common aqueous solutions to aggressive solvents. The barbed end creates a secure, leak-free seal with flexible tubing such as Silicone and Tygon, ensuring reliable fluid transfer in laboratory and industrial applications. Available in 1/16" (1.6 mm), 3/32" (2.4 mm), and 1/8" (3.2 mm) sizes, it provides a chemically inert solution for your fluidic connections.
General
The PTFE Straight Barbed to Female 1/4-28 Adapter provides a reliable connection between soft-walled tubing on the barbed end and rigid tubing through the threaded port, within microfluidic systems. You can use our flangeless fittings to adapt your rigid tubing to the 1/4-28 port.
Features
- Wide Compatibility: Compatible with a variety of tubing materials, including Silicone and Tygon (on the barbed connector), for versatile microfluidic applications.
- Excellent Chemical Resistance: Constructed entirely from PTFE, ensuring durability and compatibility with aggressive chemicals.
Content
10x PTFE Straight Barb to Female 1/4-28 adapters
Specifications
| SKU |
DM-AD-011 |
DM-AD-013 |
DM-AD-015 |
| Wetted Material |
PTFE |
PTFE |
PTFE |
| Material |
PTFE |
PTFE |
PTFE |
| Port Types |
Barbed
1/4-28 (F) |
Barbed
1/4-28 (F) |
Barbed
1/4-28 (F) |
| Recommended Tubing Material |
Flexible tubing (Silicone, Tygon, etc.) |
Flexible tubing (Silicone, Tygon, etc.) |
Flexible tubing (Silicone, Tygon, etc.) |
| Recommended Tubing ID (mm) |
1.6 mm / 1/16" |
2.4 mm / 3/32" |
3.2 mm / 1/8" |

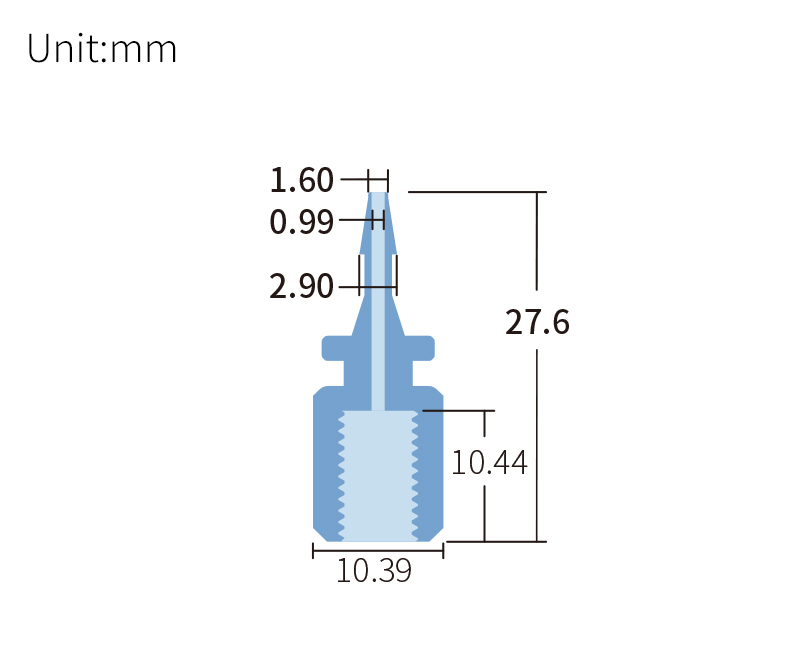

DM-AD-011

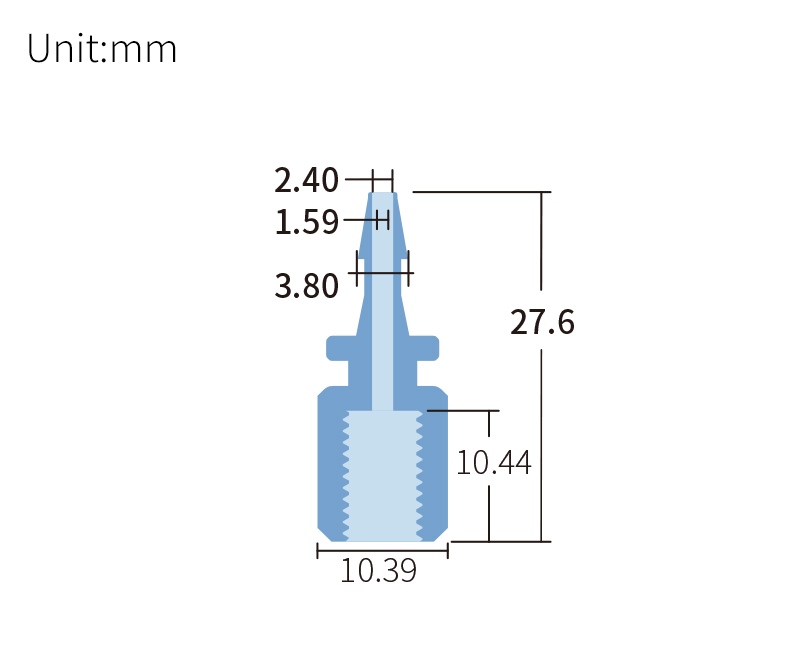

DM-AD-013

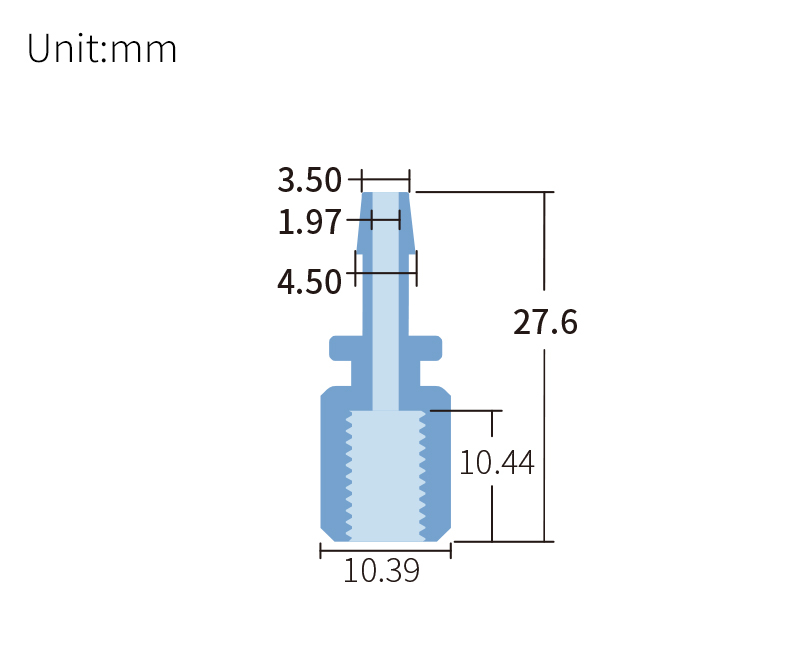

DM-AD-015
Documentation
Check the chemical compatibilities for this product here: PTFE - Chemical Compatibility Chart
