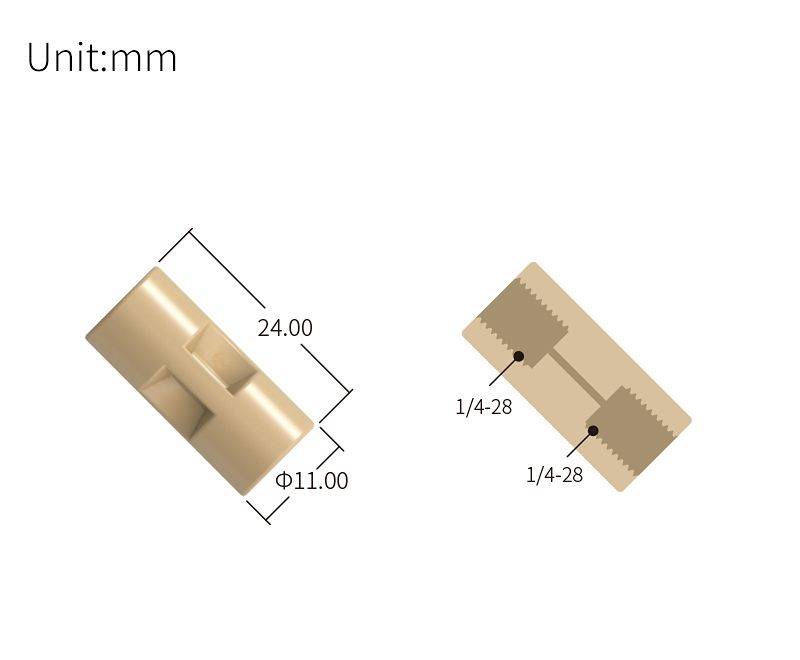

The 1/4-28 Female Straight Union is a fitting designed for extending the fluidic path in microfluidics systems. It ensures a leakage-free connection while offering excellent biocompatibility and chemical resistance. This item is sold in a convenient 5-pack.
General
This 1/4-28 Female Straight Union is a high-performance solution designed to create a secure, straight fluidic connection. Manufactured from PEEK (Polyetheretherketone), this component is a top choice for applications demanding high levels of chemical resistance, pressure tolerance, biocompatibility, and mechanical integrity.
While our polypropylene (PP) connectors are a cost-effective and reliable choice for many general-purpose, low-pressure applications, our PEEK connectors are designed for more demanding scenarios.
Features
- Straight Design: The straight union is ideal for connecting two lengths of tubing or two components in a direct path, allowing you to extend a fluidic line and ensuring a compact system layout.
- Biocompatibility: PEEK is biologically inert and non-toxic, which is critical for biomedical and life science applications where the fluid comes into contact with biological samples, cells, or tissues.
- Chemical Compatibility: PEEK is highly resistant to a vast range of aggressive solvents, acids, and bases. This means the connector will not degrade over time and will not leach contaminants into your samples.
Content
5x 1/4-28 Female Straight Union connectors
Specifications
| SKU |
DM-AD-053 |
| Wetted Material |
PEEK |
| Material |
PEEK |
| Port Type |
1/4-28 (F) |
DM-AD-053
Documentation
Check the chemical compatibilities for this product here: PEEK - Chemical Compatibility Chart
